Jet 690211 Vertical Mill X Y Powerfeeds

Product Description

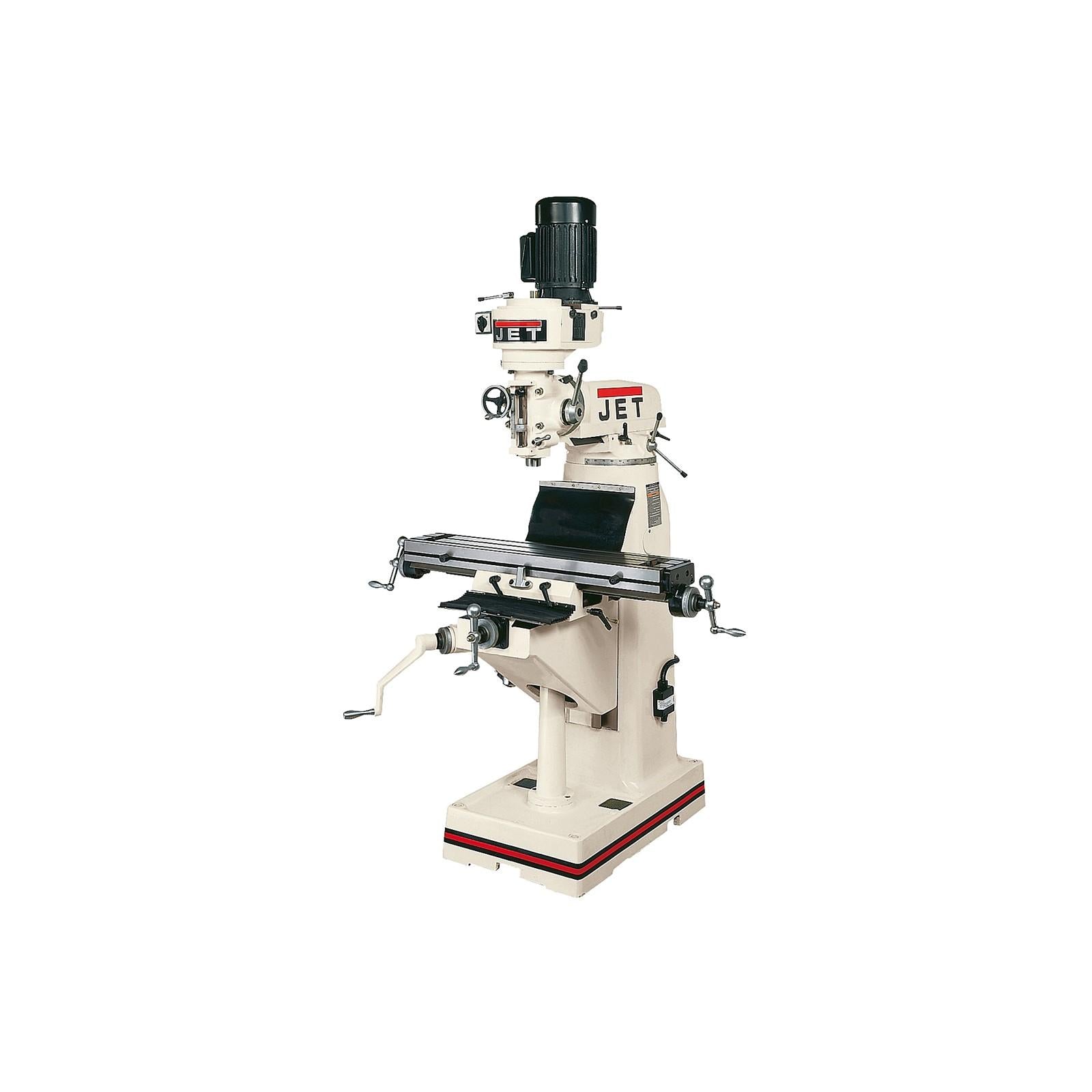

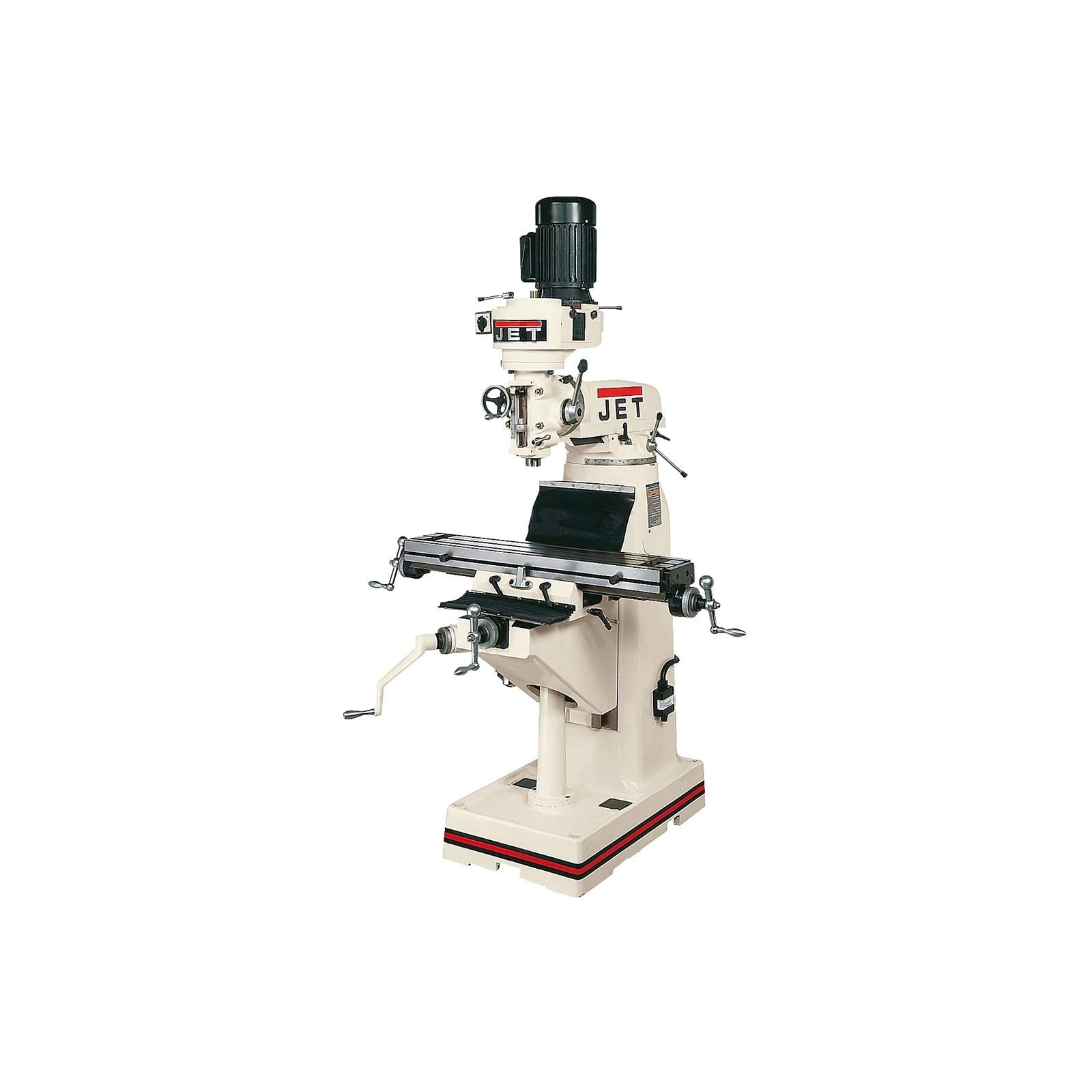

The JET 690211 is a vertical milling machine configured with X and Y axis powerfeeds installed at the factory. Designed for precision metal removal in light industrial and professional shop environments, this mill arrives ready for powered table feed operation without requiring aftermarket powerfeed retrofits. The unit weighs 1630 pounds, placing it firmly in the class of full-size knee mills suited for production and toolroom work. Machinists and skilled tradespeople install and operate this machine for milling, drilling, and boring operations on ferrous and non-ferrous materials.

This machine is suited for professional machine shops, toolrooms, vocational training facilities, and small-batch manufacturing environments. The factory-installed X and Y powerfeeds reduce operator fatigue during extended milling passes and improve feed consistency across the table travel. Typical applications include face milling, end milling, slotting, and drilling operations on workpieces fixtured to the table.

Key Features

• Factory-installed X and Y axis powerfeeds for powered table travel out of the box
• Full-size vertical knee mill configuration for toolroom and production use
• Substantial 1630-pound machine mass for rigidity and vibration damping during cuts
• Eliminates need for field-installed powerfeed retrofit hardware
• Suitable for milling, drilling, and boring operations on a range of workpiece materials

Compatibility

Designed as an OEM-configuration vertical knee milling machine. Corresponds to the JET JVM-836-1 mill platform with powerfeeds as a factory-installed option.

Installation Notes

A qualified millwright or machine tool technician should handle delivery, positioning, and commissioning of this machine. The unit requires a level, reinforced concrete floor capable of supporting loads in excess of 1630 pounds plus dynamic cutting forces. Electrical connection must be performed by a licensed electrician in accordance with NEC requirements and the machine's nameplate voltage and phase specifications. Verify all axis locks, quill controls, and powerfeed engagement mechanisms before initial power-on.

Technical Specifications

• Weight: 1630 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 1

Standard Information

• Brand: JET
• Manufacturer Part Number: 690211
