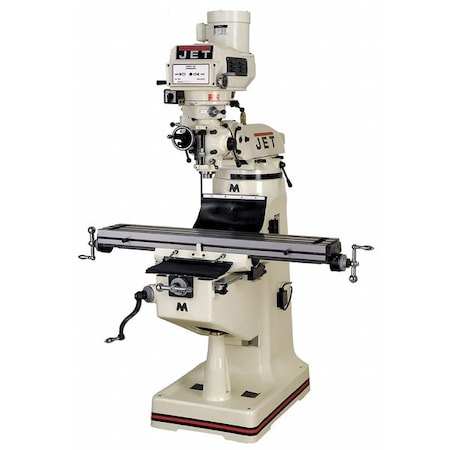

Jet 690182 Var Speed Mill Machine 3Ph 3HP 230/460V

Product Description

The Jet 690182 Variable Speed Mill Machine is designed for precision and efficiency. This milling machine operates with a 3 horsepower motor, powered by 230/460V, three-phase electricity.

• Meehanite Castings
• Chromed large diameter quill
• High precision Class 7 spindle bearings

Product Highlights

This variable speed milling machine from Jet is built for heavy-duty tasks. Ideal for professional machining applications, it supports high precision work with ease.

Product Information

Standard Information

• Brand: Jet
• MPN: 690182

Technical Specifications

• Type: Variable Speed R8
• Phase: 3
• Voltage: 230/460V
• Motor HP: 3
• Quill Diameter: 3 3/8 inches
• Table Width: 49 inches
• Cross Travel: 12 inches
• Table Length: 9 inches
• Overall Depth: 63 inches
• Overall Width: 65 1/2 inches
• Overall Height: 88 1/2 inches
• Overall Length: 66 inches
• Ram Travel Length: 13 3/8 inches
• Ram Turret Swivel: 360 degrees
• T-Slot Size: 0 3/8 inches
• Max Spindle Speed: 4,200 RPM
• Min Spindle Speed: 60 RPM
• Spindle Travel Length: 5 inches
• Spindle to Table: 17 1/2 inches
• Max Table Weight: 660 lbs
