Jet 690162 Vertical Mill Acu-rite 200S Dro X Y Powerfeed

Product Description

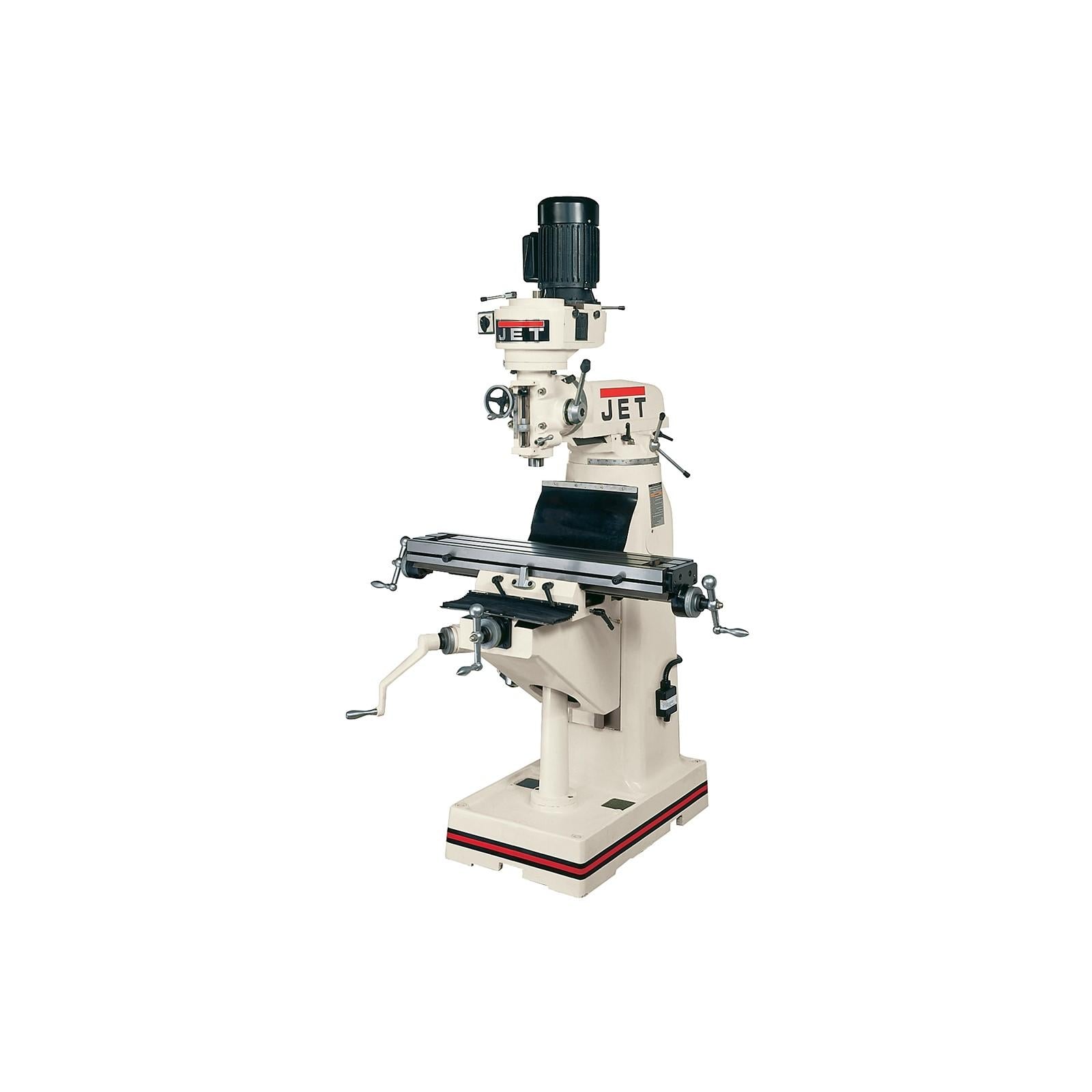

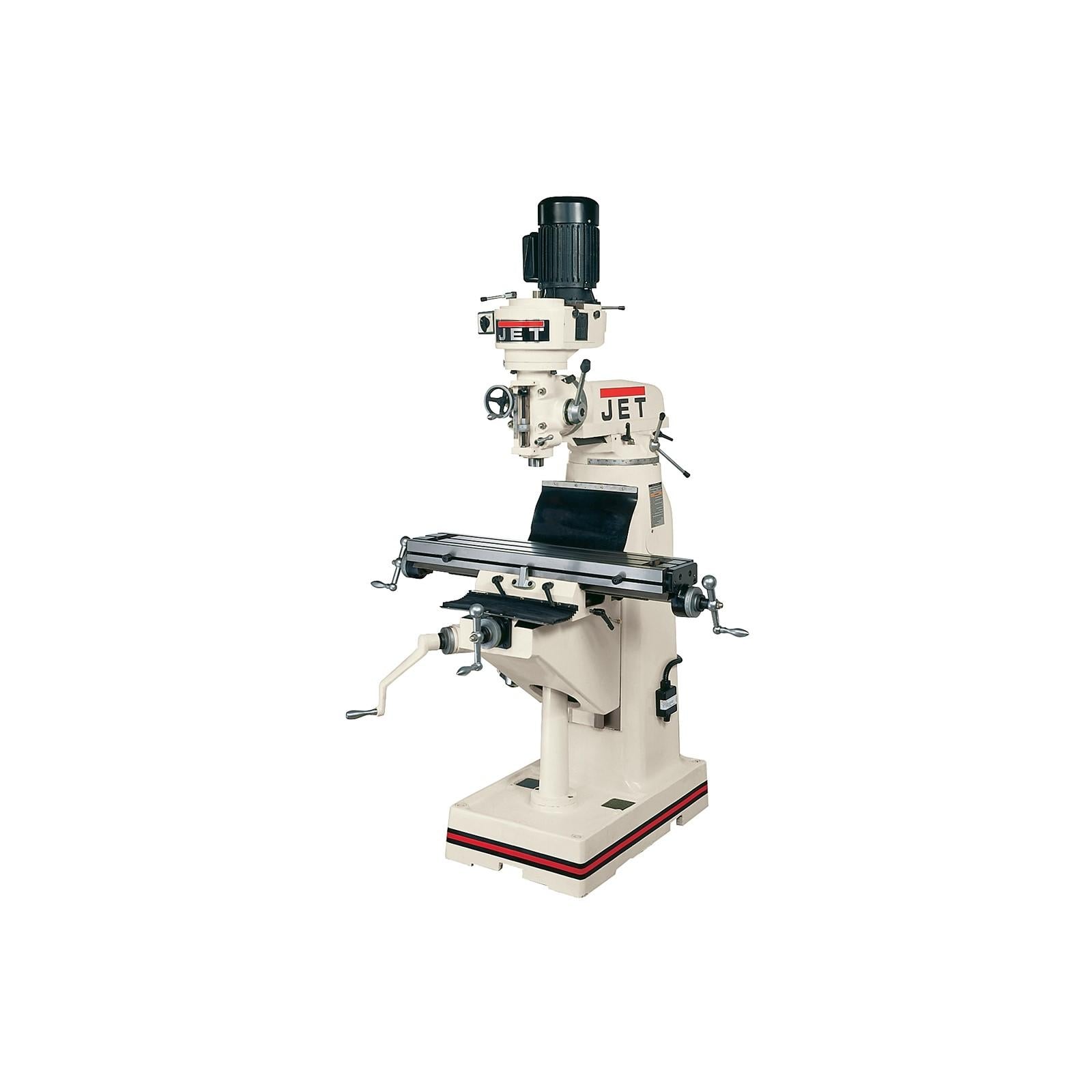

The JET 690162 is a vertical knee milling machine configured with an ACU-RITE 200S digital readout (DRO) and both X-axis and Y-axis powerfeeds installed at the factory. The ACU-RITE 200S DRO provides real-time axis position feedback, reducing manual measurement error during precision milling operations. The integrated X and Y powerfeeds allow consistent, motorized table travel across both horizontal axes, which reduces operator fatigue on long production runs. At 1,635 pounds, this is a full-size knee mill suited for machine shops, toolrooms, and industrial maintenance departments where repeatable precision work is required.

The JET 690162 is designed for toolroom and job-shop milling applications including face milling, end milling, drilling, and boring operations. The factory-installed DRO and dual powerfeeds make it well suited for production environments where setup time and manual table positioning need to be minimized. It is installed and operated by machinists, toolmakers, and skilled maintenance technicians in both commercial and industrial facilities.

Key Features

• ACU-RITE 200S digital readout installed for real-time X, Y, and Z axis position display
• X-axis and Y-axis powerfeeds installed at the factory for motorized table travel
• Full-size vertical knee mill construction for rigid, precise machining
• Factory-configured package reduces field installation time for DRO and powerfeed components

Compatibility

Designed as an OEM-configured vertical knee milling machine. Compatible tooling and accessories follow standard vertical mill conventions; confirm spindle taper and table T-slot dimensions against tooling specifications before ordering accessories.

Installation Notes

Installation of this machine requires a level, reinforced concrete floor capable of supporting the 1,635-pound operating weight plus tooling and workpiece loads. Electrical connection must be performed by a licensed electrician in accordance with NEC requirements; confirm voltage, phase, and amperage requirements against the machine nameplate before wiring. Disconnect and lockout all power before performing any service on the powerfeed motors or DRO components. Use appropriate lifting equipment and follow the manufacturer's rigging instructions when positioning the machine.

Technical Specifications

• Weight: 1635 pounds
• Digital Readout: ACU-RITE 200S
• Powerfeed Axes: X-axis and Y-axis
• Unit of Measure: Each
• Minimum Order Quantity: 1

Standard Information

• Brand: JET
• Manufacturer Part Number: 690162
