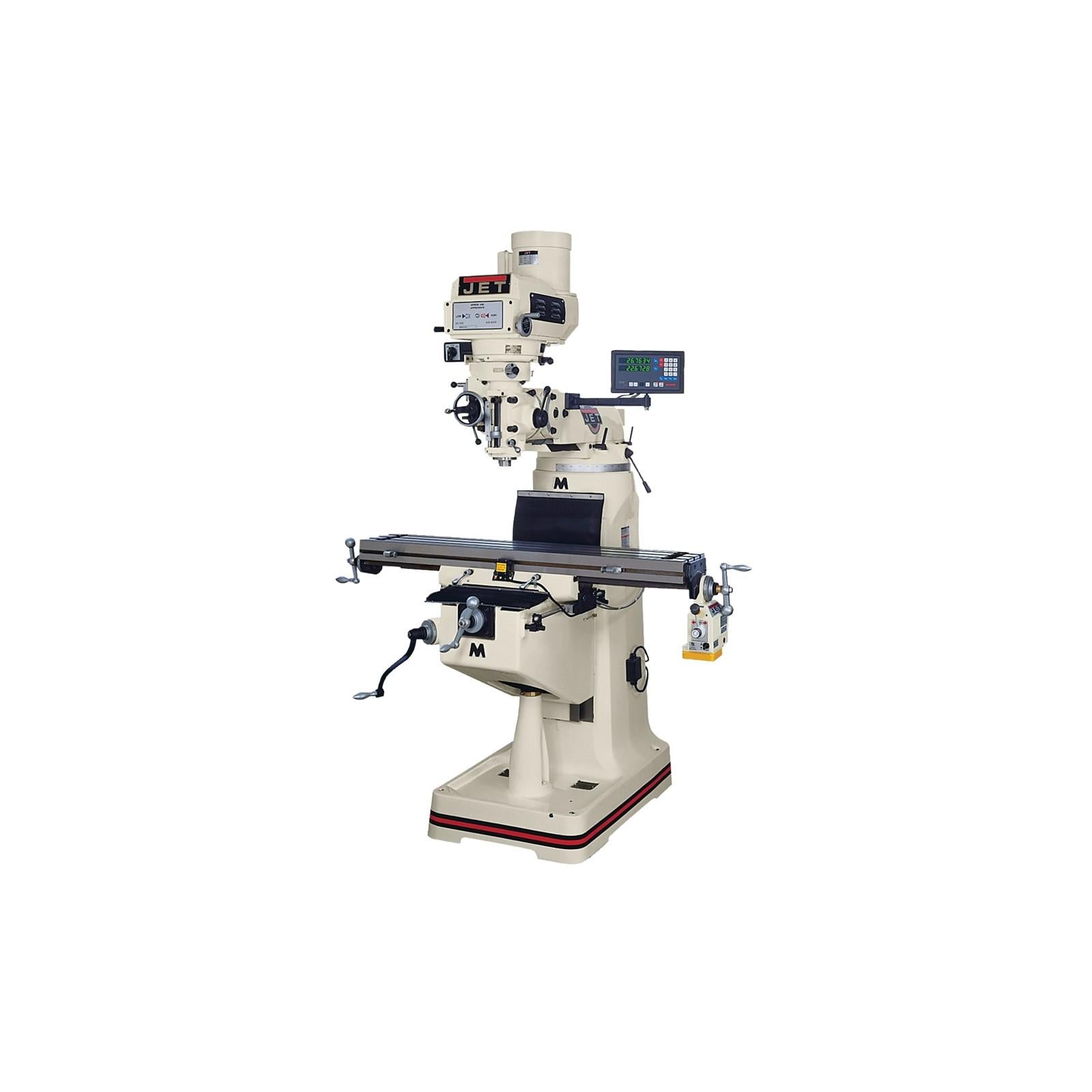

Jet 690090 Vertical Mill 3-axis Newall C80 Dro X Powerfeed

Product Description

The JET 690090 is a variable-speed vertical milling machine equipped with a factory-installed 3-axis Newall C80 digital readout (DRO) on the quill and an X-axis powerfeed. The C80 DRO provides real-time positional feedback on all three axes, reducing manual measurement steps and improving repeatability on precision work. The X-axis powerfeed automates table travel, allowing the operator to maintain consistent feed rates during milling passes. This machine is intended for use in machine shops, toolrooms, and industrial maintenance environments and is typically installed and operated by experienced machinists or millwrights.

The JET 690090 JTM-4VS mill is suited for general-purpose vertical milling applications including face milling, end milling, drilling, and boring. It is designed for both production and prototype work in professional shop settings. The integrated DRO and powerfeed package reduces setup time and manual effort, making it appropriate for shops that require consistent output across repeat jobs or close-tolerance work.

Key Features

• Factory-installed 3-axis Newall C80 DRO with quill readout for real-time positional feedback
• X-axis powerfeed installed for consistent, hands-free table travel during cuts
• Variable-speed spindle drive (JTM-4VS) for flexible material and tooling applications
• Robust cast-iron construction supports rigid setups and reduces vibration
• Full machine weight of 2420 pounds provides a stable platform for precision milling

Compatibility

Designed as a complete OEM-configured vertical milling machine. The Newall C80 DRO and X-axis powerfeed are factory-installed on this unit as specified by the JTM-4VS platform.

Installation Notes

Installation of a machine at this weight class requires appropriate rigging equipment and a level, load-rated shop floor. Electrical connection should be performed by a licensed electrician in accordance with NEC requirements for the machine's voltage and phase specifications. Verify that the power supply matches the machine's electrical rating before energizing. All safety guards must be in place and verified functional before the machine is placed into service.

Technical Specifications

• Weight: 2420 pounds
• DRO System: Newall C80 3-Axis with Quill
• Powerfeed: X-Axis
• UOM: Each

Standard Information

• Brand: JET
• Manufacturer Part Number: 690090
