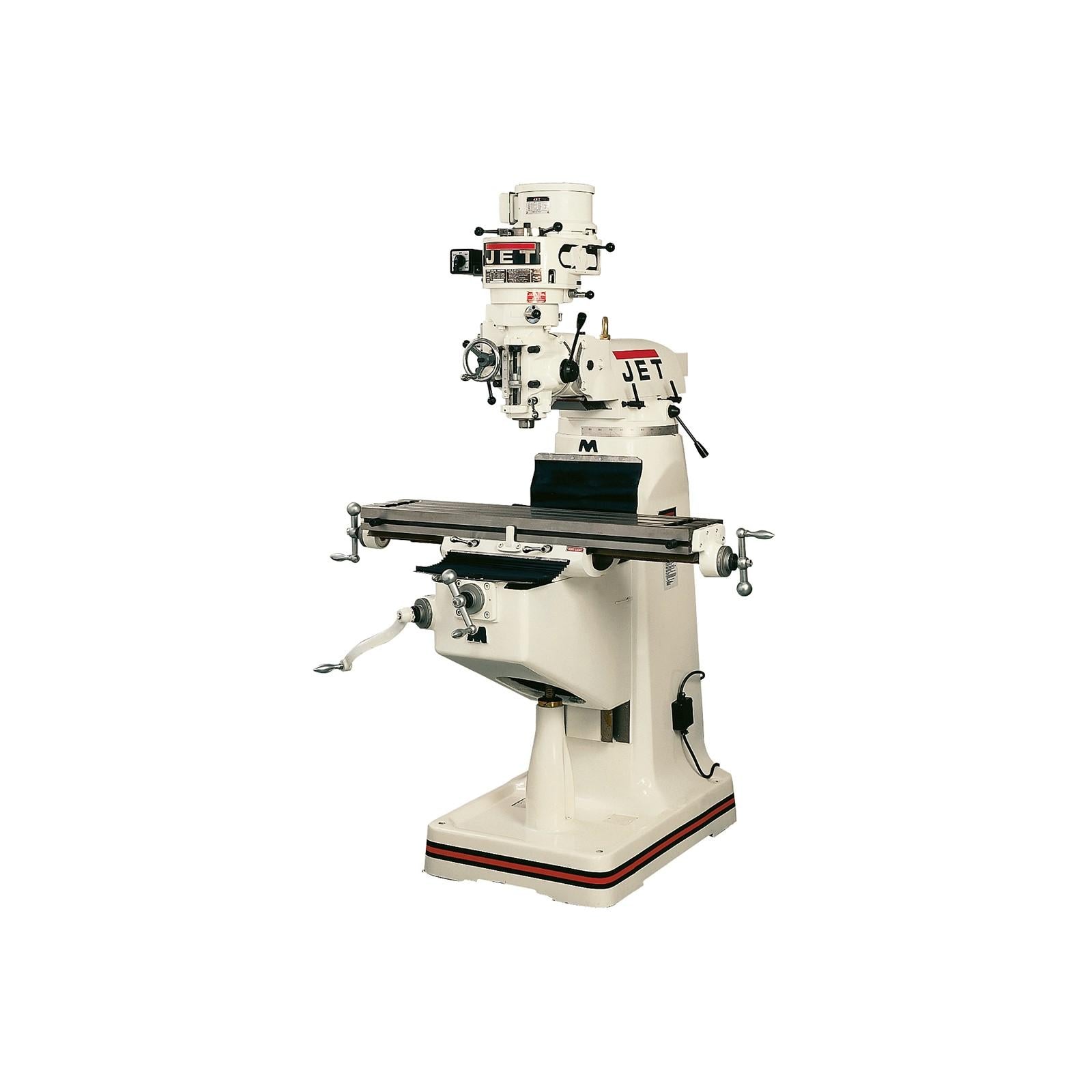

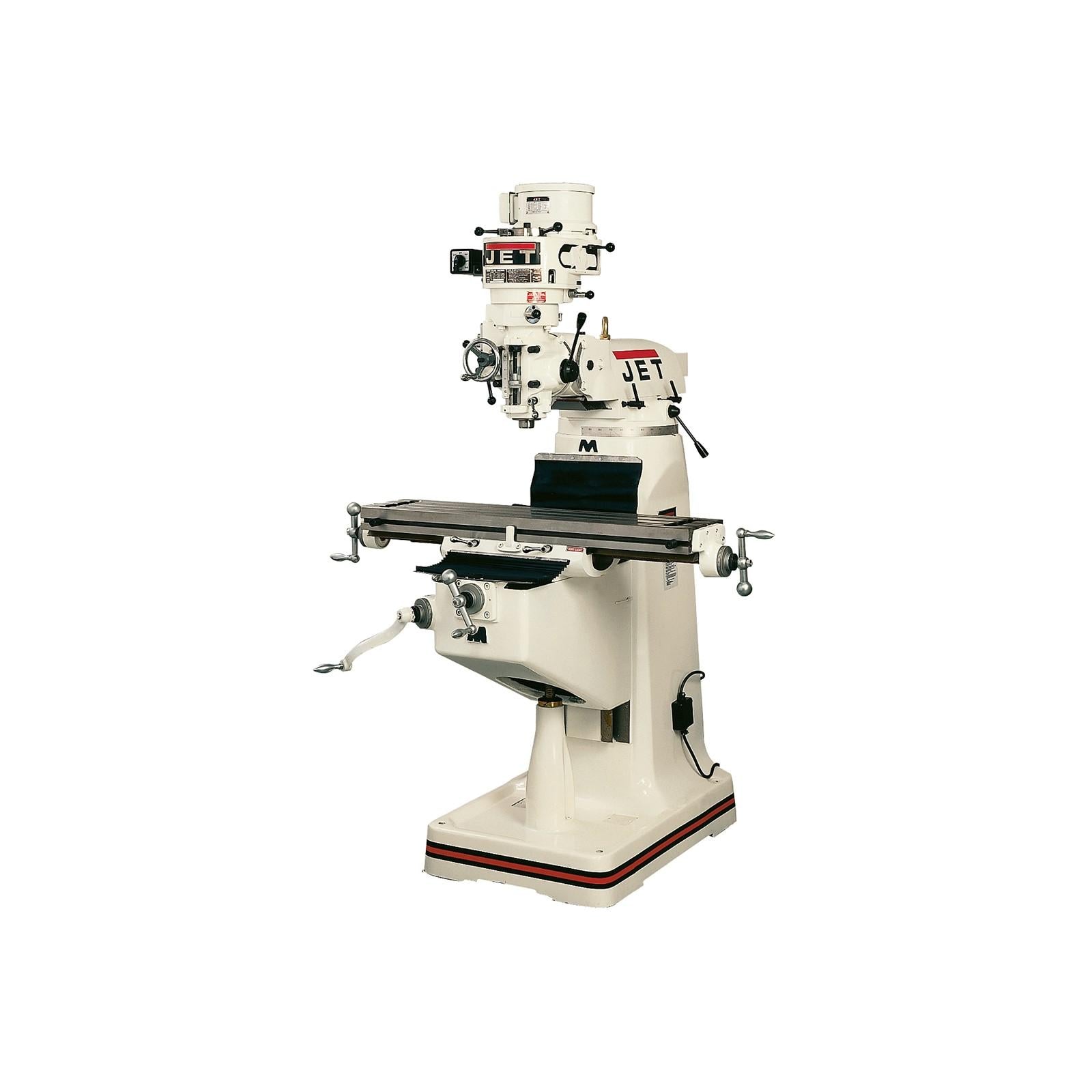

Jet 690082 Vertical Knee Mill 9x42 Table 2HP 3ph 230V

Product Description

The JET 690082 is a vertical knee milling machine built for precision metalworking in machine shops and industrial maintenance environments. It features a 9 x 42 inch worktable and 16 selectable spindle speeds, giving operators the flexibility to cut a wide range of materials and achieve accurate finishes across diverse milling operations. The machine runs on a 2 HP motor wired for 3-phase 230V power only. Licensed machinists, tool-and-die makers, and industrial maintenance technicians are the primary installers and operators of this equipment.

The JET 690082 is suited for production and job-shop environments where a full-size knee mill is required for face milling, end milling, boring, and drilling operations. The 9 x 42 inch table provides ample work surface for fixturing medium to large workpieces. This machine is designed for facilities with 3-phase 230V electrical service and is not compatible with single-phase power without an external phase converter. It is commonly found in manufacturing facilities, vocational training shops, and maintenance departments that require repeatable, high-tolerance milling capability.

Key Features

• 9 x 42 inch worktable provides generous fixturing area for medium and large workpieces
• 16 spindle speeds allow precise cutting parameter selection across a range of materials
• 2 HP motor delivers consistent power for face milling, end milling, and boring operations
• 3-phase 230V configuration is suited for commercial and industrial shop electrical services
• Vertical knee mill design supports both vertical and, where equipped, horizontal spindle work

Compatibility

Designed as an OEM-spec vertical knee milling machine intended for 3-phase 230V industrial electrical service. No specific compatible model cross-references were provided in the source data.

Installation Notes

Installation and commissioning should be performed by a qualified electrician and a certified millwright or machinery installer. Verify that the facility electrical service provides 3-phase 230V before connecting; this machine does not support single-phase power natively. Secure the machine to the floor per the manufacturer instructions and applicable OSHA machinery-guarding requirements before operation. Lock out and tag out all electrical power before performing any maintenance, tooling changes, or adjustments to the spindle or table.

Technical Specifications

• Table Size: 9 x 42 inches
• Spindle Speeds: 16
• Motor Power: 2 HP
• Phase: 3-Phase
• Voltage: 230V
• Weight: 2056 pounds
• UOM: Each

Standard Information

• Brand: JET
• Manufacturer Part Number: 690082
