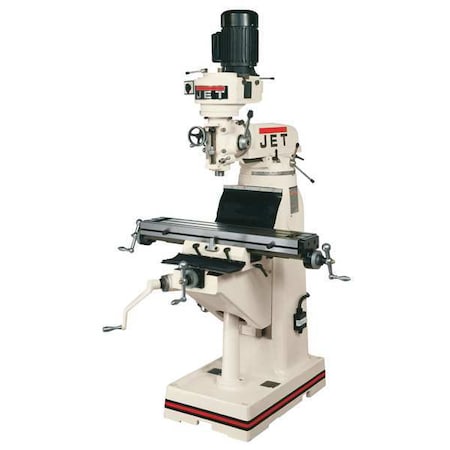

Jet 690038 Vertical Mill 120-1550 RPM 230V 3 Phase

Product Description

The Jet 690038 is a knee/column milling machine designed for precision milling and drilling. It operates at speeds from 120 RPM to 1550 RPM and is powered by a one and a half horsepower motor. This machine uses three-phase, 230 volt power and is capable of handling heavy loads with a table load capacity of five hundred pounds.

• Table dimensions: seven and seven eighths inches by thirty-five and three quarters inches
• Includes a one-shot lubrication system and way covers
• Longitudinal travel of twenty-two and one quarter inches

Product Highlights

Designed for industrial applications, this vertical mill features hardened and ground precision tables, making it ideal for machine shops.

Product Information

Standard Information

• Brand: Jet
• MPN: 690038

Technical Specifications

• Type: Knee/Column Milling Machine
• Horsepower: One and a half hp
• Voltage: 230V
• Phase: 3
• Max. Spindle Speed: 1550 RPM
• Min. Spindle Speed: 120 RPM
• Table Width: 35.75 inches
• Table Length: 7.875 inches
• Spindle Taper: R-8
• Overall Height: 78 inches
• Overall Length: 52 inches
• Overall Depth: 55 inches
• Number of T-Slots: 3
• Max. Table Weight: 500 lbs
• Country of Origin: China
