Jet 690017 Vertical Milling Machine 2HP 3ph 230V Xy Powerfeed

Product Description

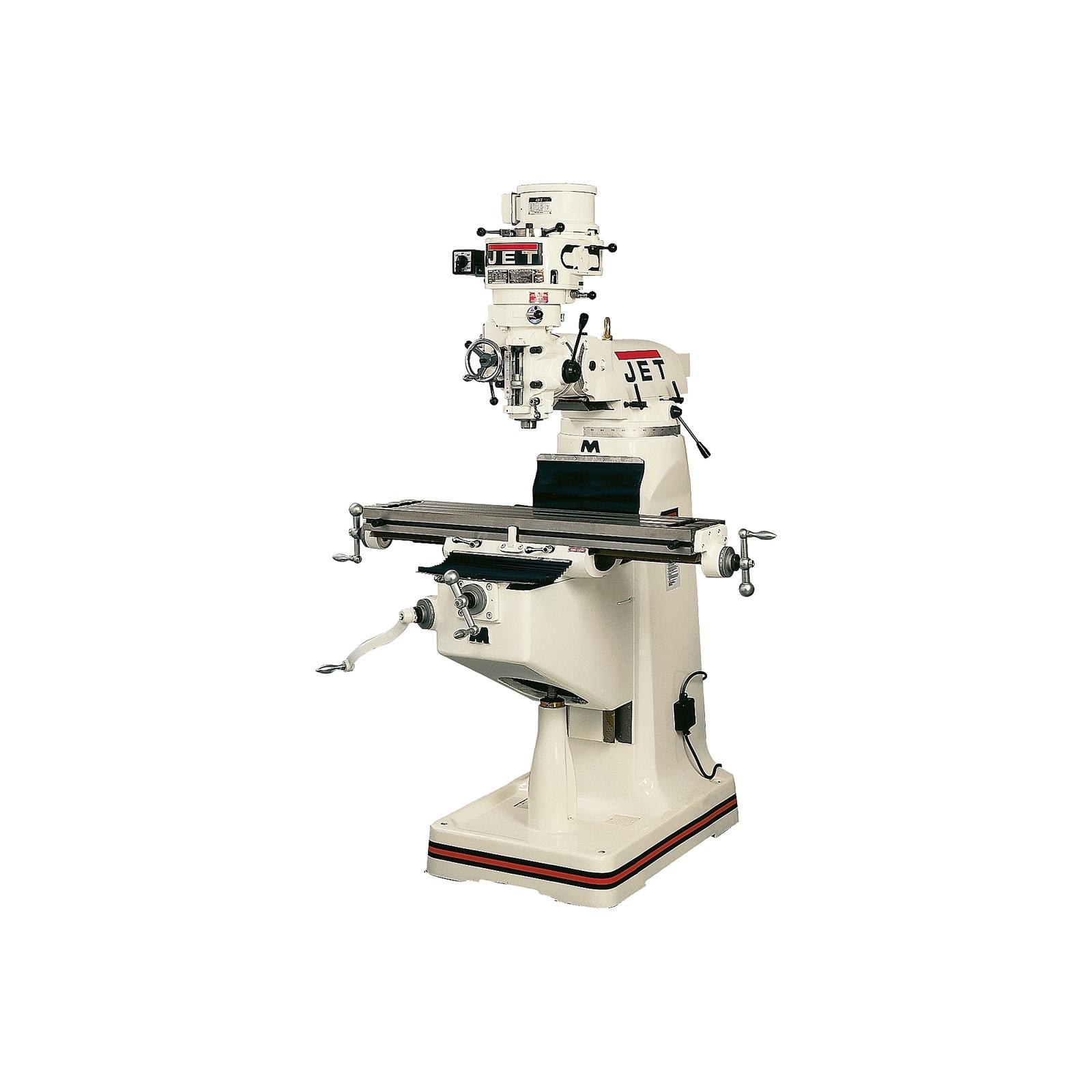

The JET 690017 is a JTM-2 vertical knee milling machine designed for precision metal removal in professional machine shop and industrial maintenance environments. Running on a 2 HP motor at 230 volts, 3-phase power, this mill delivers the torque and speed range needed for face milling, end milling, drilling, and boring operations on ferrous and non-ferrous materials. The included XY table powerfeed automates table travel on both the X and Y axes, reducing operator fatigue during long cuts and improving surface finish consistency. At 2,200 pounds, this is a full-size, floor-mounted machine tool intended for permanent installation.

The JTM-2 mill is suited for job shops, toolrooms, maintenance departments, and production facilities where versatile vertical milling capability is required. The XY powerfeed package makes it especially practical for repetitive facing and slotting operations where consistent feed rates are critical to finish quality and cutter life. Installation requires a dedicated 3-phase 230-volt electrical service and a reinforced concrete floor capable of supporting the machine weight.

Key Features

• 2 HP motor provides substantial cutting power for a wide range of milling operations
• 3-phase 230-volt input matches standard industrial electrical service in machine shop environments
• XY table powerfeed automates feed on both horizontal axes for consistent cut quality
• Vertical knee-mill configuration allows quill depth control and table height adjustment independent of spindle
• Full-size machine weight of 2,200 pounds contributes to rigidity and vibration damping during heavy cuts

Compatibility

Designed as a self-contained vertical knee milling machine. Compatible tooling and accessories follow standard milling machine conventions for the JTM-2 platform. Refer to JET documentation for spindle taper specification and compatible toolholders.

Installation Notes

Installation must be performed by a qualified millwright or industrial electrician. The machine requires a dedicated 3-phase 230-volt circuit sized to the nameplate amperage draw. The mounting surface must be a level concrete floor of sufficient thickness and load rating to support 2,200 pounds plus dynamic cutting loads. Lock out and tag out all electrical power before performing any mechanical adjustments, tooling changes, or service work on this machine.

Technical Specifications

• Motor Power: 2 HP
• Phase: 3-Phase
• Voltage: 230 volts
• Table Powerfeed: X and Y axes
• Machine Weight: 2,200 pounds
• Unit of Measure: Each
• UPC: 662755901751

Standard Information

• Brand: JET
• Manufacturer Part Number: 690017
