Jet 690017 Milling Machine Vertical 9 L x 42 W Table 2378 Longitudinal Travel 1212 Cross Travel 14

Product Description

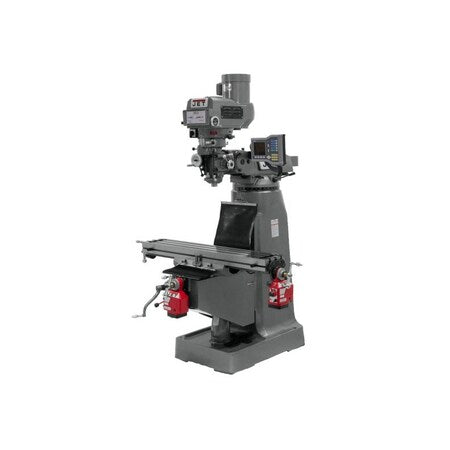

The Jet 690017 is a vertical milling machine designed for precision and flexibility. It features a nine-inch by forty-two-inch table, providing ample space for various machining tasks. This machine can handle longitudinal travel of twenty-three point seventy-eight inches and cross travel of twelve point twelve inches.

• Powerful two horsepower motor.
• Adjustable tilting angle for enhanced precision.
• Robust design with a high table load capacity.

Product Highlights

The Jet 690017 milling machine is suitable for both professional and hobbyist machinists, making it a versatile addition to any workshop.

Product Information

Standard Information

• Brand: Jet
• MPN: 690017

Technical Specifications

• Spindle Taper: 3.38 inches
• Quill Diameter: 1.712 inches
• Spindle to Table Distance: 4.12 inches
• Distance Between Centers: 19 inches
• Table Load Capacity: 550 lbs
• T-Slots: 3
• T-Slot Width: 5/8 inches
• Tilting Angle: 90 degrees Right/Left, 45 degrees Backward/Forward
• Voltage: 115/230 VAC
• Dimensions: 57 inches L x 64 inches W x 82 inches H
• Country of Origin: Taiwan, Province of China
