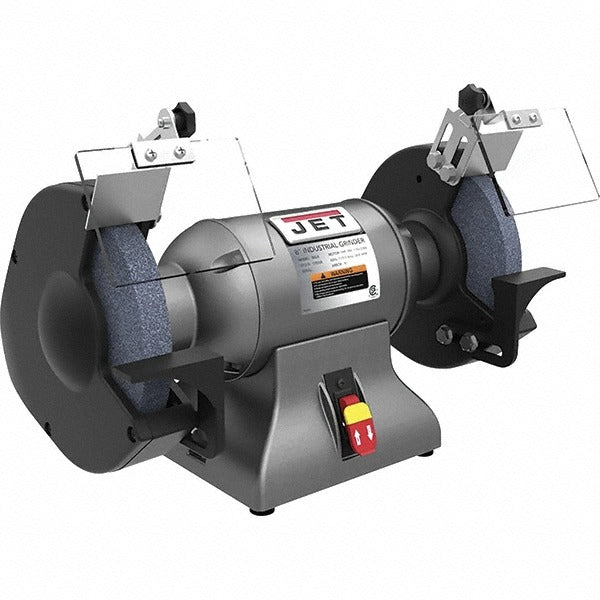

Jet 578010 Bench Grinder 1.5 Hp 10 Inch 1720 Rpm

Product Description

The JET 578010 is a heavy-duty bench grinder built for professional grinding, sharpening, and deburring tasks in shop and industrial environments. It runs on a 1.5 horsepower, single-phase motor rated at 115 volts and spins a 10-inch diameter by 1-inch wide grinding wheel at up to 1,720 RPM. The 1-inch arbor hole accepts standard grinding wheels and wire wheels for a wide range of abrasive applications. Cast iron tool rests provide a stable, rigid work surface that holds position under load. Licensed electricians, machinists, and maintenance technicians are the typical installers and operators of this machine.

The JET 578010 is suited for general-purpose bench grinding in maintenance shops, fabrication facilities, tool rooms, and trade workshops. It handles tasks such as sharpening drill bits, chisels, and lathe tools, as well as deburring metal stock and cleaning welds. Its single-phase 115-volt power requirement allows operation on standard shop circuits without a dedicated three-phase supply, making it practical for small and mid-size shops alike.

Key Features

• 1.5 hp single-phase motor delivers consistent wheel speed under load
• 10-inch wheel diameter provides a large grinding surface for long tool contact
• 1,720 RPM operating speed suited to general-purpose abrasive work
• Cast iron tool rests resist flex and hold angle settings reliably
• 1-inch arbor hole accepts widely available replacement wheels
• 115-volt input works with standard single-phase shop circuits

Compatibility

Designed as an OEM-style bench grinder unit for use with standard 10-inch diameter, 1-inch wide grinding wheels with a 1-inch arbor bore, as commonly used in general machine shop and maintenance applications.

Installation Notes

Installation and wiring should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Secure the grinder to a stable workbench using appropriate fasteners before operation to prevent movement under load. Always power down and disconnect the unit from its electrical supply before changing wheels or performing any maintenance. Inspect grinding wheels for cracks or damage before mounting and ensure wheel speed ratings meet or exceed the machine's 1,720 RPM rating.
