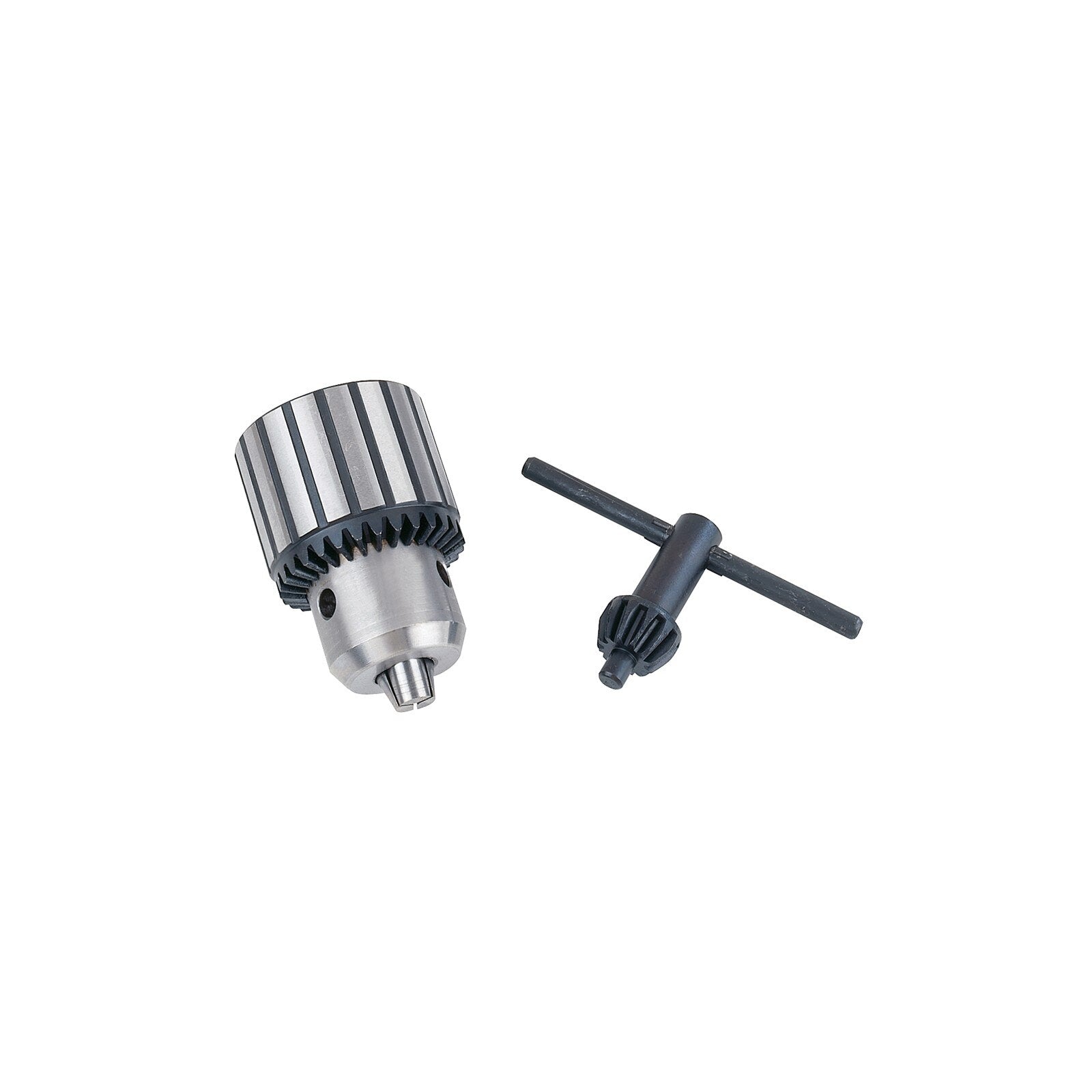

Jet 561708 Taper Mount Drill Chuck 1/8-5/8 Inch JT-3

Product Description

The JET 561708 is a taper mount drill chuck designed for use on drill presses and milling machines where a Jacobs Taper No. 3 (JT-3) spindle interface is required. It accepts drill bit shanks from 1/8 inch up to 5/8 inch, covering the range commonly needed for metal, wood, and general fabrication work. The chuck mounts directly onto a JT-3 taper arbor and provides secure bit retention through a keyed or keyless mechanism appropriate to the chuck body design. Weighing 2 pounds, it is a solid, shop-grade tool suited for installation by machinists, maintenance technicians, and skilled tradespeople working with stationary drill equipment.

This chuck is intended for stationary drill press and milling machine applications in commercial shops, maintenance facilities, and trade environments. It handles the full range of standard fractional drill bit sizes from 1/8 inch through 5/8 inch, making it appropriate for general-purpose hole-making in metal, wood, plastic, and composite materials. The JT-3 taper mount is a widely used interface on mid-size drill press spindles, making this chuck a practical replacement or upgrade for worn or damaged original equipment chucks.

Key Features

• Accepts drill bit shanks from 1/8 inch to 5/8 inch capacity
• JT-3 (Jacobs Taper No. 3) taper mount for direct spindle installation
• Solid construction at 2 pounds for stable, vibration-resistant operation
• Fits mid-size stationary drill presses and milling machines with JT-3 spindles
• Sold individually as a direct replacement or new installation chuck

Compatibility

Designed for drill presses and milling machines equipped with a JT-3 (Jacobs Taper No. 3) spindle. Accepts all standard fractional shank drill bits within the 1/8 inch to 5/8 inch capacity range.

Installation Notes

Installation should be performed by a qualified machinist or maintenance technician. Disconnect and lock out power to the drill press or milling machine before removing the existing chuck or arbor. The chuck seats onto the JT-3 taper with a firm mallet-driven press fit and is removed using a chuck removal wedge or drift. Do not strike the chuck body directly with a steel hammer, as this can damage the taper bore or chuck jaws.

Technical Specifications

• Chuck Capacity (Minimum): 1/8 inch
• Chuck Capacity (Maximum): 5/8 inch
• Taper Mount: JT-3 (Jacobs Taper No. 3)
• Weight: 2 pounds
• UPC: 662755105128
• Sold As: Each

Standard Information

• Brand: JET
• Manufacturer Part Number: 561708
