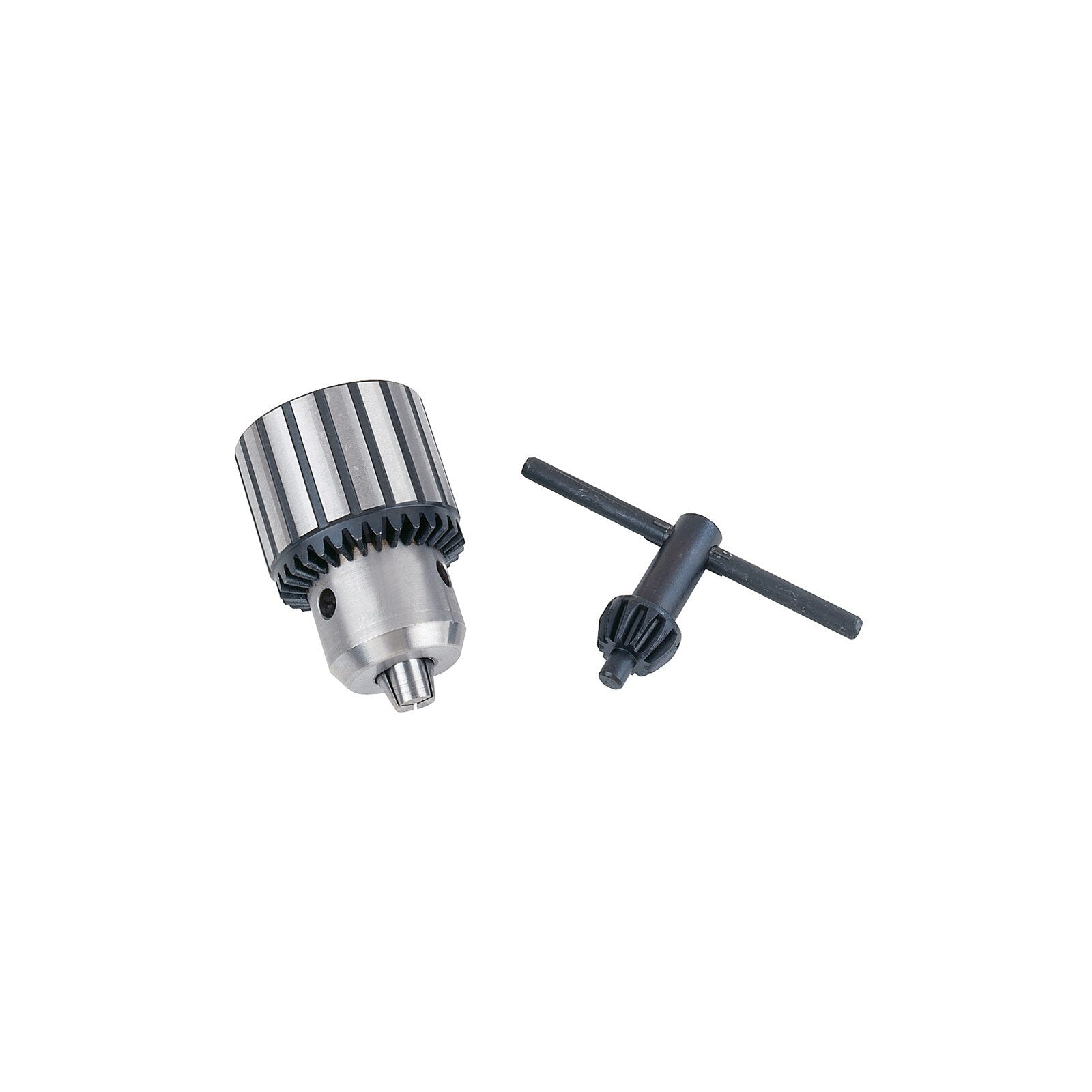

Jet 561702 Taper Mount Drill Chuck 0-3/8 Inch JT-2

Product Description

The JET 561702 is a taper mount drill chuck designed for use with JT-2 arbors. It accepts drill bit shanks from 0 to 3/8 inches, making it suitable for a wide range of drilling operations on drill presses and similar machine tools. The chuck uses a Jacobs Taper No. 2 mounting interface, which provides a secure, self-holding connection to compatible spindles. Machinists, millwrights, and fabrication professionals install this chuck as an OEM-style replacement or upgrade component on stationary drilling equipment.

This chuck is intended for use on drill presses and benchtop drilling machines that accept a JT-2 taper mount. It handles bit capacities from 0 to 3/8 inches, covering the majority of standard twist drill and accessory shank sizes used in light to medium metalworking, woodworking, and general fabrication. It is sold as a single unit and is appropriate for both shop and jobsite machine maintenance applications.

Key Features

• Accepts bit shanks from 0 to 3/8 inches for broad drilling coverage
• JT-2 (Jacobs Taper No. 2) mount for secure, self-holding spindle connection
• Taper mount design eliminates threaded fasteners for faster chuck changes
• Compact chuck body sized for drill press spindle compatibility
• Sold individually as a direct replacement or spare chuck

Compatibility

Designed as an OEM-style replacement taper mount drill chuck for drill presses and machine tool spindles configured with a JT-2 taper interface.

Installation Notes

Installation and removal should be performed by a qualified machinist or maintenance technician. Power down and lock out the drill press or machine tool completely before removing or seating the chuck. Taper mount chucks are seated by firm mallet contact against the arbor and removed with a wedge-type drift key through the spindle slot. Do not use a hammer directly on the chuck body, as this can damage the taper seating surface.

Technical Specifications

• Chuck Capacity: 0 to 3/8 inches
• Mount Type: JT-2 Jacobs Taper
• Weight: 2 pounds
• Unit of Measure: Each
• UPC: 662755105098

Standard Information

• Brand: JET
• Manufacturer Part Number: 561702
