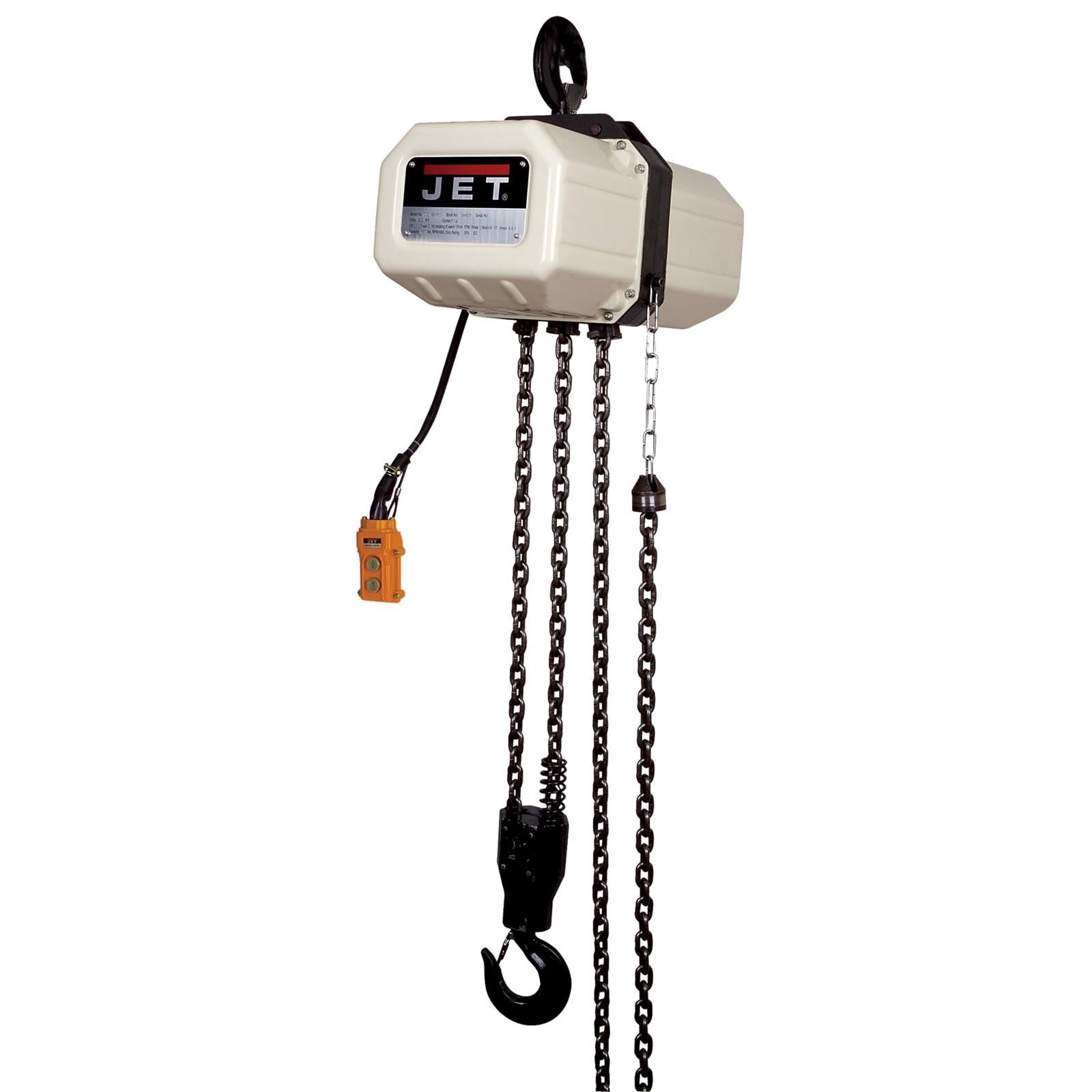

Jet 531000 Electric Chain Hoist 5 Ton 3ph 230 460V

Product Description

The JET 531000 is a heavy-duty electric chain hoist rated for 5-ton capacity in a three-phase configuration. It delivers up to 10 feet of lift and is factory prewired for 460 volts, with dual-voltage capability at 230/460V for flexible installation in industrial and commercial facilities. Weighing 225 pounds, this unit is built for demanding overhead lifting applications where reliable, repeatable performance is required. Licensed riggers and industrial electricians are the typical tradespeople who select, install, and commission this type of equipment.

The JET 531000 is suited for manufacturing floors, warehouses, machine shops, and heavy-service bays where consistent overhead material handling is required. Its three-phase motor design makes it appropriate for facilities with established 230V or 460V three-phase electrical infrastructure. The 10-foot lift range accommodates standard bay heights common in light industrial and commercial construction. Because it arrives prewired for 460V, installations on 460V three-phase systems require no internal rewiring at startup.

Key Features

• 5-ton rated capacity for heavy overhead lifting in industrial environments
• Three-phase motor operates on 230V or 460V supply voltage
• Factory prewired for 460V, reducing commissioning time on 460V systems
• 10-foot lift range suitable for standard industrial bay heights
• Single unit per order with a UPC of 662755906381 for inventory tracking

Compatibility

Designed as an OEM-style overhead lifting unit for three-phase industrial and commercial facilities with 230V or 460V electrical service.

Installation Notes

Installation of electric chain hoists must be performed by a qualified rigger and a licensed electrician working in accordance with applicable ASME B30.16 overhead hoist standards and NEC requirements for motor branch circuits. Disconnect and lock out all electrical power and verify zero energy state before connecting or servicing the hoist. Confirm that the supporting structure, beam, or trolley is rated to exceed the hoist's working load limit before mounting. Do not exceed the rated 5-ton capacity under any operating condition.

Technical Specifications

• Capacity: 5 ton
• Phase: 3 phase
• Voltage: 230/460 volts
• Factory Prewired Voltage: 460 volts
• Lift Height: 10 feet
• Weight: 225 pounds
• UOM: Each
• Minimum Order Quantity: 1

Standard Information

• Brand: JET
• Manufacturer Part Number: 531000
