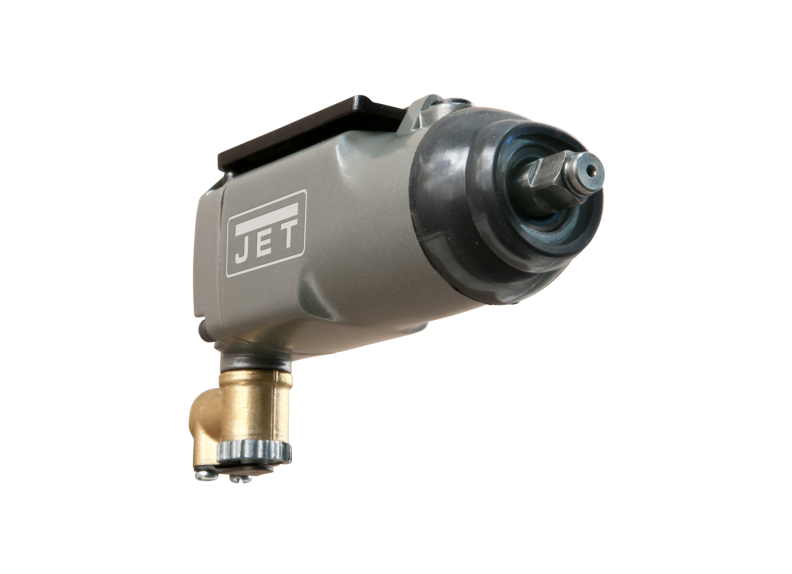

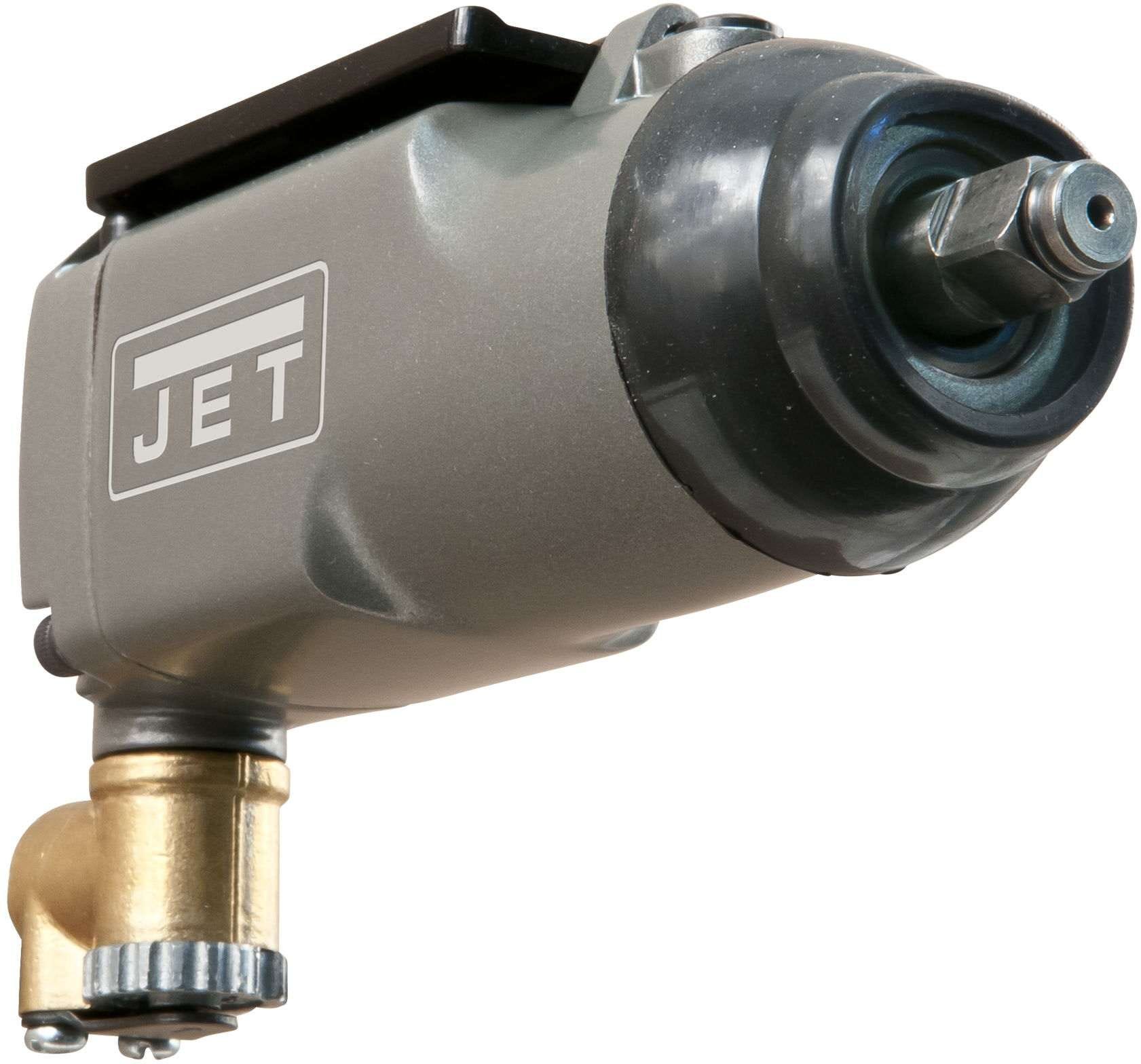

Jet 505100 Butterfly Air Impact Wrench 3/8 inches Drive Size 75 Max Torque

Product Description

The JET 505100 Butterfly Air Impact Wrench is a durable tool designed for frequent and rigorous use. The R6 Series wrench can handle 6-hour workdays. Features include a single hammer impact mechanism for smooth power and torque, a compact design for cramped spaces, and a variable-speed throttle for speed adjustment. Its lightweight aluminum construction reduces weight.

• Durable, quality tools
• Single Hammer impact mechanism for smooth power and torque
• Compact design for cramped spaces

Product Highlights

This butterfly air impact wrench is ideal for transmission servicing, bench work, or small assembly jobs.

Product Information

Standard Information

• Brand: JET
• Manufacturer Part Number: 505100
• Country of Origin: TW

Technical Specifications

• Type: Air Impact Wrench
• Brand: JET
• Clutch: Single Hammer
• Free Speed: 12000 rpm
• Description: Butterfly Air Impact Wrench
• Retainer Type: Ring
• Classification: R 6
• Drive Size: 3/8 in
• Max Torque: 75 lb-in
• Blows per Minute: 700 BPM
• Air Hose ID: 3/8 in
• Working Torque: 5 - 50 lb-ft
• Air Inlet Thread Size (NPT): 1/4 in
• Manufacturers Part Number: 505100
• Average Air Consumption: 3 SCFM
• MPN: 505100
• Height: 2.03
• Length: 6.99
• Width: 3.78
• Model / MPN: JAT-100
• Air Consumption [Nom]: 3 CFM
• Bolt/Screw Size [Nom]: 3/8 in
• Control Type: Variable Speed
• Cycle Rate [Nom]: 700 blows/min
• Drive Type: Square
• Handle Type: Butterfly
• Hose Size [Nom]: 3/8 in
• Housing Material: Aluminum
• Inlet Size: 1/4 in
• Noise Level [Max]: 114 dB
• Pressure [Nom]: 90 psi
• Torque [Min]: 5 ft lb
• Vibration [Nom]: 13.4 m/s2
• Air Consumption (CFM): 3.0000
• Air Inlet (NPT): 1/4
• Min. Air Hose (ID): 3/8
• Overall Length (In.): 5-7/8
• Square Drive (In.): 3/8
• Vibration Value (m/s²): 13.4000
• Working Torque (Ft.) (Lbs.): 5-50
• Electric Brake: No
• Variable speed: No
• Anvil Retainer Type: Ring
• Air Hose: 3/8"
• Air Inlet: 14 in
• Air Pressure: 90 PSI
• Sound Pressure (db) (A): 110
• Sound Power (db) (A): 114
• Vibration Value: 13.4 (m/s²)
• Overall Length: 5-7/8"
• Weight: 2 lbs
• Impact Mechanism / Clutch Type: Single Hammer
• Model: 505100
• Air Inlet (NPT/In.): 1/4
• Air Hose (ID/In.): 3/8
• Air Pressure (PSI): 90
• Air Consumption: 3
• Vibration Value (m/s): 13.4
• Weight (Lbs.): 2
• Maximum Torque: 75 ftlb
• Minimum Hose Size: 38 in
• Sound Level: 114 dB
• Throttle: Variable Speed Teasing Throttle
• Impacts per Minute (IPM): 700 bpm
• Free Speed (RPM): 12000.0000
• Blows Per Minute: 700
• Bolt Capacity: 3/8"
