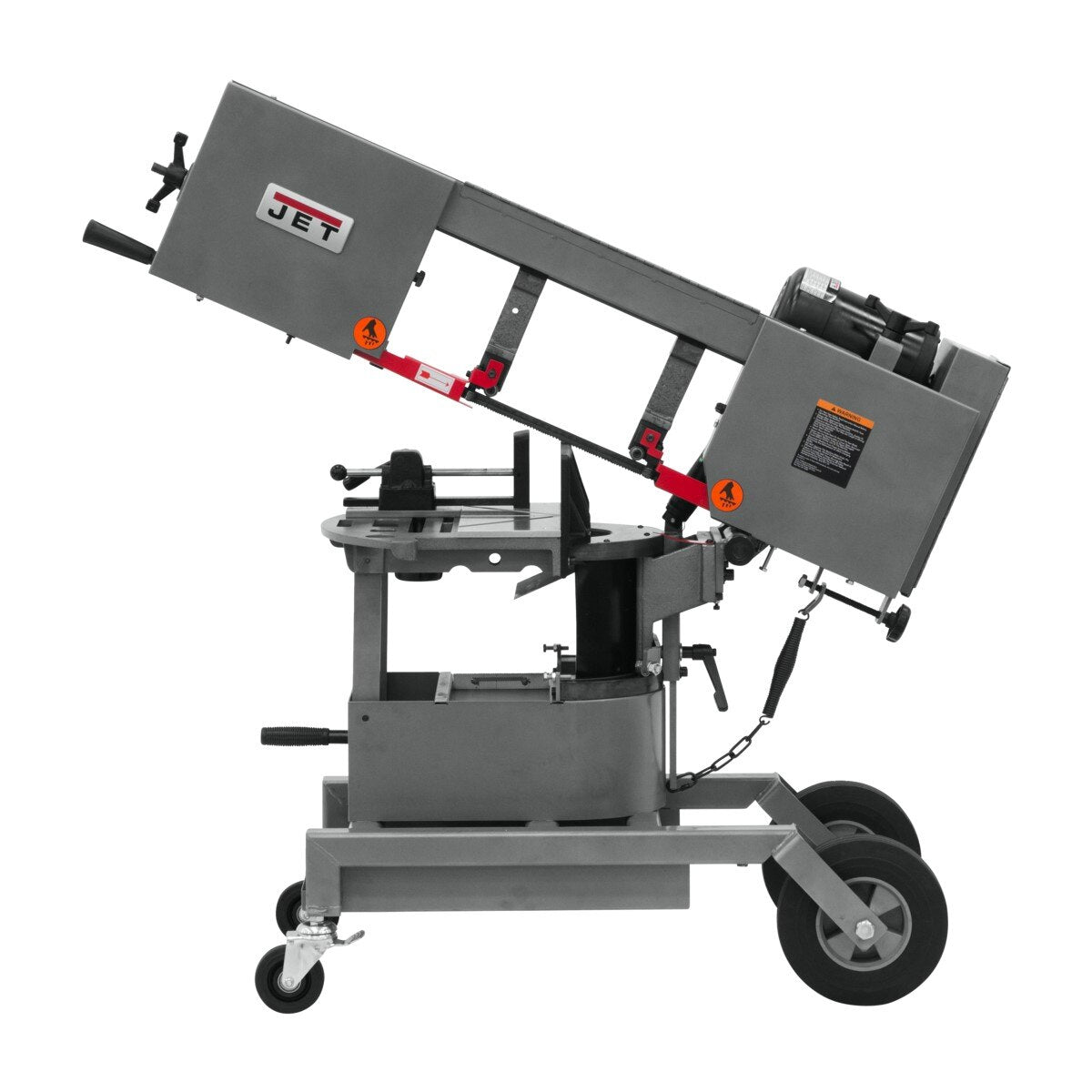

Jet 424463 Portable Band Saw 10 in Dual Mitering 1HP

Product Description

The JET 424463 is a 10-inch horizontal/vertical dual mitering portable band saw designed for cutting metal, pipe, and structural stock in shop or field environments. Rated at 1 horsepower and running on 115 volts single phase, this saw handles both horizontal and vertical orientations and supports dual miter adjustments for angled cuts. It is built for use by pipefitters, ironworkers, fabricators, and maintenance crews who require precise, repeatable cuts in steel and other metal materials. The unit weighs 558 pounds, making it a stationary floor-model machine suited for a fixed or semi-permanent shop setup.

This band saw is intended for industrial and commercial shop applications where operators need flexible cutting angles without repositioning the workpiece. The dual mitering capability allows the vise and head to swing independently, supporting compound angle cuts. Horizontal mode handles production-style cutoff work, while vertical mode allows contour and irregular cutting. It is commonly installed in metal fabrication shops, maintenance facilities, pipefitting shops, and structural steel operations.

Key Features

• 10-inch blade capacity supports a wide range of structural and round stock sizes
• Dual miter design allows both head and vise to swing for compound angle cuts
• Converts between horizontal and vertical cutting modes for versatile shop use
• 1 HP motor runs on 115 volts single phase standard shop power
• Heavy-duty construction at 558 pounds for stability during high-load cutting

Compatibility

Designed as an OEM-style replacement and direct-fit unit within the JET HVBS-10 DMW band saw product line. Consult JET documentation for blade specifications and compatible accessories.

Installation Notes

Installation and setup should be performed by a qualified technician or electrician familiar with single-phase motor connections and NEC requirements. Ensure the machine is bolted to a level, solid floor surface before operation to prevent movement under load. Disconnect and lock out all power before performing blade changes, wheel adjustments, or drive component service. Follow all OSHA and manufacturer guarding requirements before placing the saw in service.

Technical Specifications

• Blade Capacity: 10 inches
• Motor: 1 HP
• Voltage: 115 volts
• Phase: 1 Phase
• Cutting Orientation: Horizontal and Vertical
• Miter Type: Dual Mitering
• Weight: 558 pounds
• UOM: Each

Standard Information

• Brand: JET
• Manufacturer Part Number: 424463
