Jet 414468 Horizontal Band Saw 1.5 Hp 115/230V

Product Description

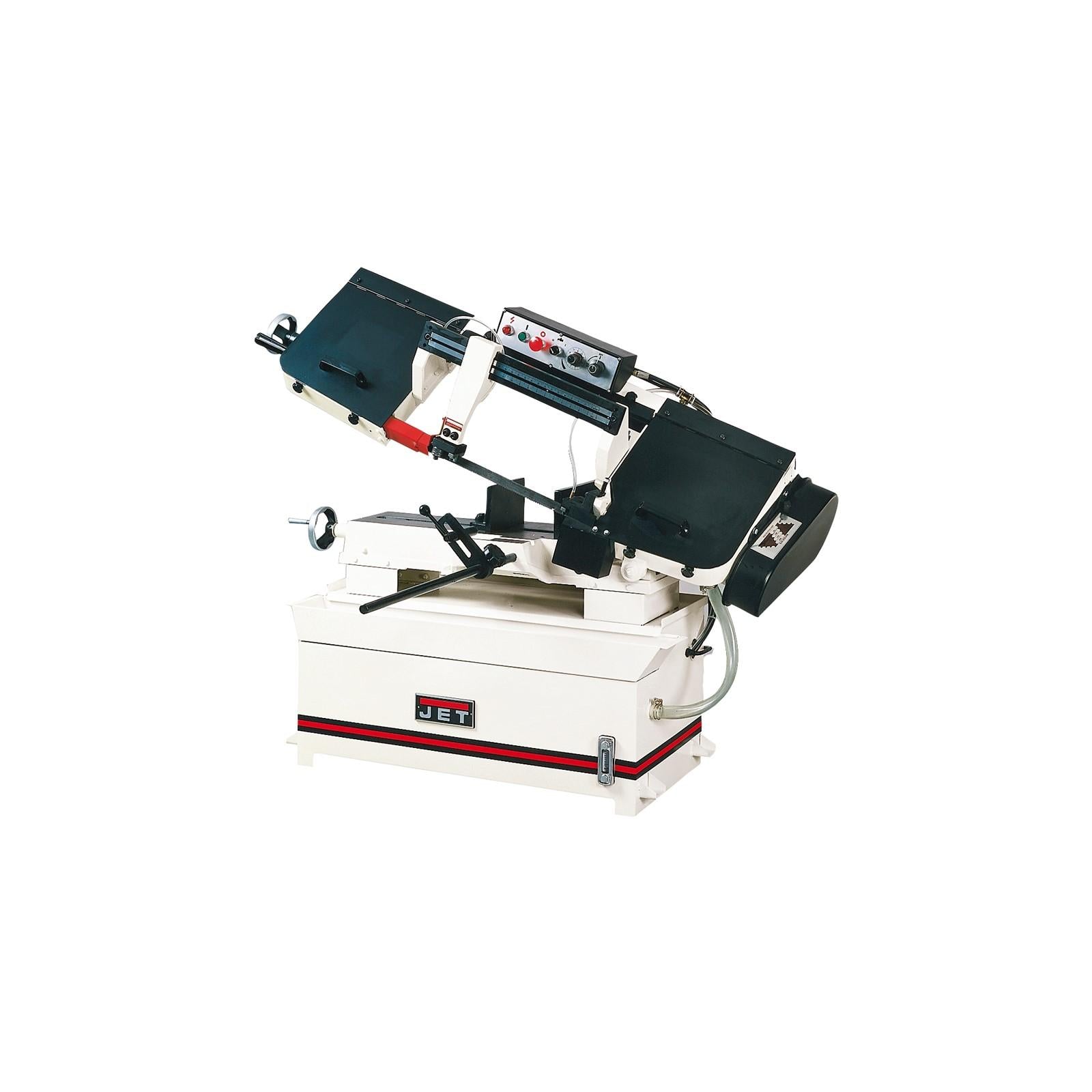

The JET 414468 is a horizontal band saw built for cutting metal stock in demanding shop environments. Rated at 1.5 horsepower and wired for single-phase power at either 115 or 230 volts, this saw accepts material up to 9 inches by 16 inches in cross-section. The horizontal cutting orientation suits production and job-shop applications where straight, repeatable cuts on bar stock, pipe, tube, and structural shapes are required. At 706 pounds, this is a floor-mounted machine intended for permanent or semi-permanent installation by a qualified millwright, maintenance tech, or shop equipment specialist.

The HBS-916W is suited for metal fabrication shops, maintenance facilities, and industrial production environments. Its 9-inch by 16-inch capacity handles a wide range of solid bar, bundle cuts, and structural profiles. Single-phase power input makes it practical for facilities that do not have three-phase service available, reducing electrical infrastructure requirements for smaller shops or field maintenance buildings.

Key Features

• 9 inches by 16 inches cutting capacity handles solid bar, tube, pipe, and structural stock
• 1.5 HP motor delivers consistent blade force through dense material
• Dual-voltage single-phase input: 115 volts or 230 volts for flexible power hookup
• Horizontal band saw configuration for straight, gravity-assisted cuts
• Heavy floor-standing construction at 706 pounds for stability under load

Compatibility

Designed as an OEM-matched replacement or direct unit for JET HBS-916W series horizontal band saw applications requiring single-phase 1.5 HP drive in a 9-inch by 16-inch capacity class.

Installation Notes

Installation should be performed by a qualified electrician and millwright. Disconnect and lock out all power before any electrical connections or blade changes. The dual-voltage motor must be wired to match the supply voltage before energizing; verify the motor connection plate configuration before startup. Anchor the machine to the floor per the manufacturer instructions and local machinery installation codes to prevent movement during operation.

Technical Specifications

• Cutting Capacity: 9 inches x 16 inches
• Motor: 1.5 HP
• Phase: Single Phase
• Voltage: 115/230 volts
• Weight: 706 pounds

Standard Information

• Brand: JET
• Manufacturer Part Number: 414468
