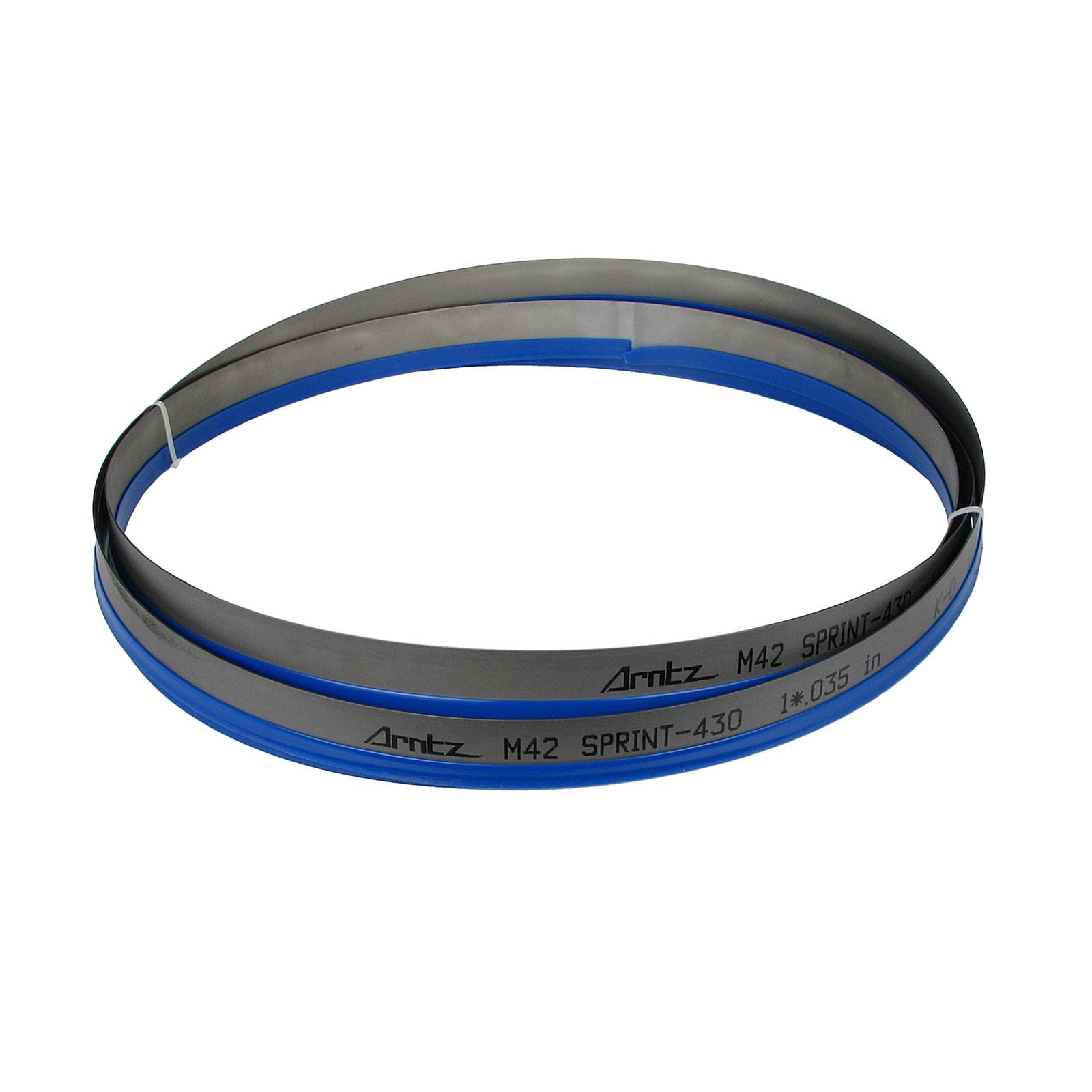

Jet 414310 Bi-metal Bandsaw Blade 1 in X 130.5 in Replacement

Product Description

The JET 414310 is a bi-metal replacement bandsaw blade engineered for the JET 10-inch by 18-inch horizontal bandsaw. Measuring 1 inch wide, 0.035 inches thick, and 130.5 inches in length, this blade uses an 8/12 variable-tooth (VT) pitch pattern that handles a range of material thicknesses without tooth stripping or chatter. Bi-metal construction bonds a high-speed steel tooth edge to a flexible alloy steel backer, giving the blade both cutting edge durability and resistance to fatigue cracking through continuous production cuts. Fabricators, pipe fitters, and maintenance machinists rely on blades of this specification for daily ferrous and non-ferrous metal cutting tasks.

This blade is sized and pitched for horizontal band sawing in light industrial and shop environments. The 8/12 VT pitch is well-suited for cutting solid bar stock, structural shapes, tubing, and pipe where cross-section thickness varies. It is a direct OEM-style replacement intended to restore full cutting performance on the compatible JET horizontal bandsaw without modification to blade guides or blade tension settings.

Key Features

• Bi-metal construction with high-speed steel teeth bonded to a flexible alloy steel backer for extended blade life
• 8/12 variable-tooth pitch reduces vibration and prevents tooth stripping on variable-thickness workpieces
• 1-inch blade width provides lateral stability during straight cuts on the horizontal bandsaw
• 0.035-inch blade thickness matches OEM blade guide and tension specifications
• 130.5-inch loop length is a direct fit for the JET 10-inch by 18-inch horizontal bandsaw

Compatibility

Designed as a direct replacement blade for the JET 10-inch by 18-inch horizontal bandsaw, matching OEM blade dimensions of 1 inch x 0.035 inches x 130.5 inches with an 8/12 VT pitch.

Installation Notes

Blade replacement should be performed by a qualified machinist or maintenance technician with the bandsaw fully powered down and locked out per OSHA lockout/tagout procedures. Wear cut-resistant gloves when handling the coiled blade. Verify blade tension and guide bearing clearance after installation per the saw manufacturer's service documentation. Do not exceed the blade speed rating specified for the installed blade pitch and material type.

Technical Specifications

• Blade Material: Bi-Metal
• Tooth Pitch: 8/12 VT (Variable Tooth)
• Blade Width: 1 inch
• Blade Thickness: 0.035 inches
• Blade Length: 130.5 inches
• Compatible Saw Cutting Capacity: 10 inches x 18 inches
• Weight: 1 pound
• Sold As: Each

Standard Information

• Brand: JET
• Manufacturer Part Number: 414310
