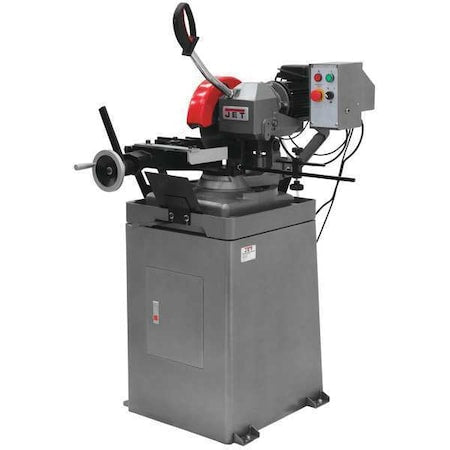

Jet 414228 Cold Saw Cast Iron 115V 11 In Dia

Product Description

The Jet 414228 Cold Saw is designed for metal working with a cast-iron frame and a 115V power source. This cold saw features an 11 inch blade diameter and is ideal for precise, clean cuts on metal materials.

• Power source: Corded
• Blade diameter: 11 inches
• Miter angle range: 45 degrees left to 45 degrees right

Product Highlights

This Jet cold saw is perfect for metal workers needing reliable, high-quality cuts. The cast-iron construction ensures durability, and the 11 inch blade allows for versatile cutting options.

Product Information

Standard Information

• Brand: Jet
• MPN: 414228
• UPC: 731325266139

Technical Specifications

• HP: 1.5 hp
• Hz: 60
• Amps: 13 A
• Item: Cold Saw
• Phase: Single
• Series: CS-275
• Current: 12 A, 24 A
• Voltage: 115V AC
• Includes: 1-1/2, 115V, 1 hp Motor, Heavy Duty Cast Iron Frame Base, Cast Dual Pivot Saw Head, Hardened and Ground Worm and Wheel Gear Box, (2) Speed, 1.3 gal Coolant Tank Capacity, Casted Blade Cover
• Material: Cast Iron
• Arbor Size: 1 1/4 in
• Blade Dia.: 11 in
• Guard Type: Drop Down
• Horsepower: 1.5
• Application: Metal Working
• Arbor Shape: Round
• Blade Speed: 54 RPM
• Handle Type: Trigger
• No Load RPM: 54
• Tool Weight: 360 lb
• Power Source: Corded
• Corded/Banded: Corded
• Material Feed: Manual
• Metal Saw Type: Cold Saw
• Cutting Capacity: 3 2/7 in
• Miter Angle Range: 45 Degrees Left to 45 Degrees Right
• Cutting Blade Type: Cold Saw Blade
• Blade Dia. - Metric: 275 mm
• Blade Dia. - English: 10 in
• Blade Mounting Holes: 2/11/63
• Pivoting Fence Angle: 45 Degrees
• Round Cut Capacity @ 0 Deg.: 3 1/4 in
• Round Cut Capacity @ 45 Deg.: 3 1/4 in
• Square Cut Capacity @ 0 Deg.: 2-1/2 sq in
• Square Cut Capacity @ 45 Deg.: 2-3/16 sq in
• Country of Origin (subject to change): Taiwan, Province of China
