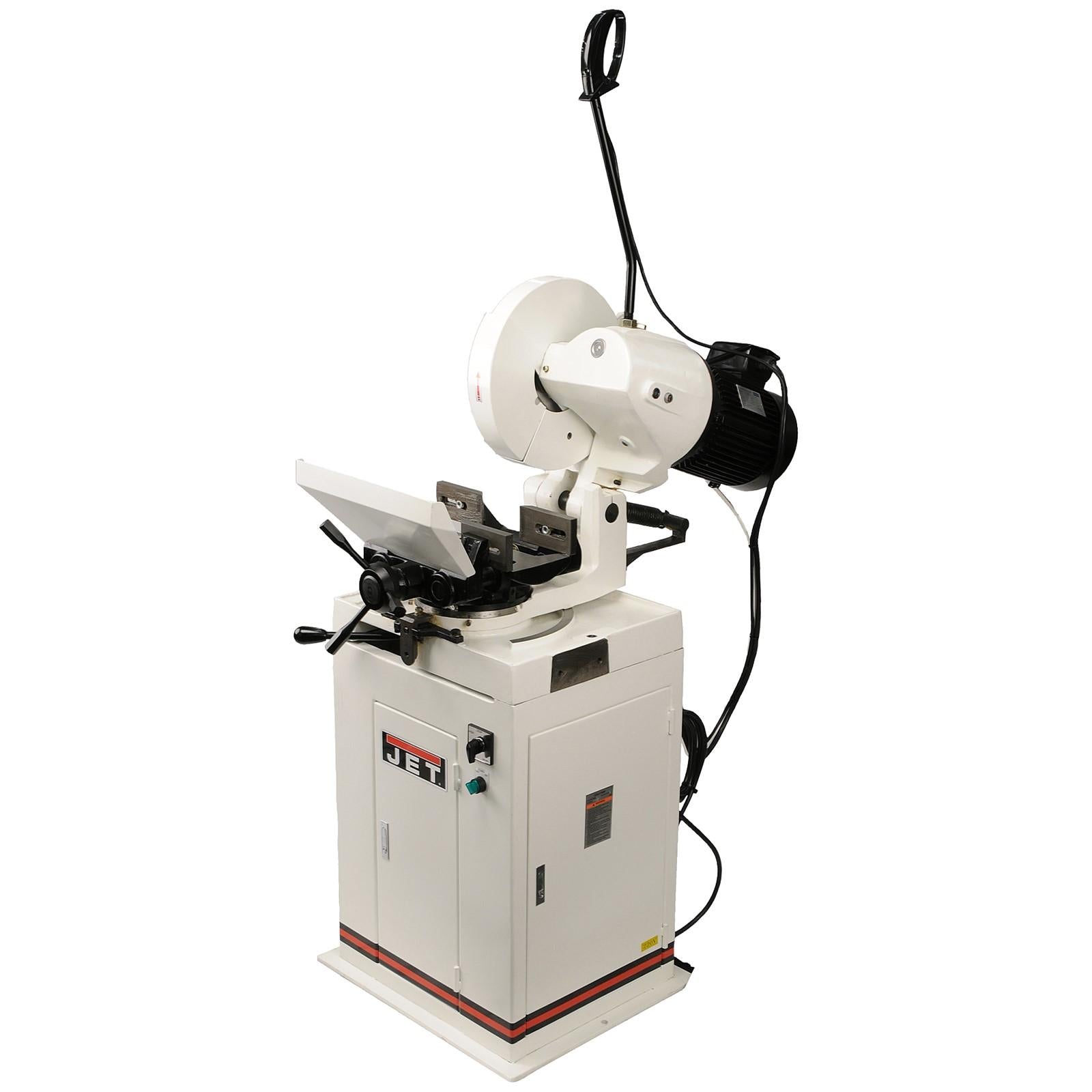

Jet 414214K Manual Cold Saw 350mm 230V

Product Description

The JET 414214K is a manual cold saw designed for cutting ferrous and non-ferrous metals with precision and minimal heat buildup at the cut zone. Operating on a 230-volt single-phase power supply, this saw accepts a 350mm blade and is built for demanding fabrication and metalworking environments. Unlike abrasive cutoff saws, a cold saw uses a toothed circular blade at low RPM to transfer heat into the chip rather than the workpiece, preserving material integrity and producing clean, burr-minimal cuts. At 760 pounds, the J-FK350-2K is a heavy-duty floor-standing machine suited for production shops, structural steel fabricators, and industrial maintenance operations.

This cold saw is intended for professional metalworking applications where cut quality, repeatability, and material preservation are priorities. The 350mm blade capacity accommodates a range of solid bar, tube, and structural section stock. The manual feed operation gives the operator direct control over cut rate and blade load. This machine is appropriate for shops cutting steel, aluminum, copper, brass, and similar materials where abrasive saw heat or blade deflection would compromise part tolerances or surface finish requirements.

Key Features

• 350mm blade capacity for cutting solid bar, tube, and structural profiles
• 230-volt power supply for compatibility with standard industrial single-phase service
• Manual feed operation for direct operator control of cut rate and blade engagement
• Cold saw cutting technology transfers heat to the chip, protecting workpiece integrity
• Heavyweight machine construction at 760 pounds provides rigidity and dampens vibration during cuts

Compatibility

Designed as an OEM-style replacement and production cold saw for professional metalworking and fabrication applications requiring a 350mm manual cold saw on 230-volt power.

Installation Notes

Installation and commissioning of this machine should be performed by a qualified millwright or electrician familiar with industrial equipment. Ensure the electrical service meets the 230-volt single-phase supply requirements and that the circuit is properly grounded per NEC guidelines before energizing. The machine must be anchored to a level concrete floor using appropriate anchor hardware to prevent movement during operation. Blade changes and all maintenance procedures require the machine to be fully de-energized and locked out per OSHA lockout/tagout standards.

Technical Specifications

• Blade Diameter: 350mm
• Voltage: 230 volts
• Operation Type: Manual Feed
• Weight: 760 pounds
• UOM: Each
• UPC: 731325167528

Standard Information

• Brand: JET
• Manufacturer Part Number: 414214K
