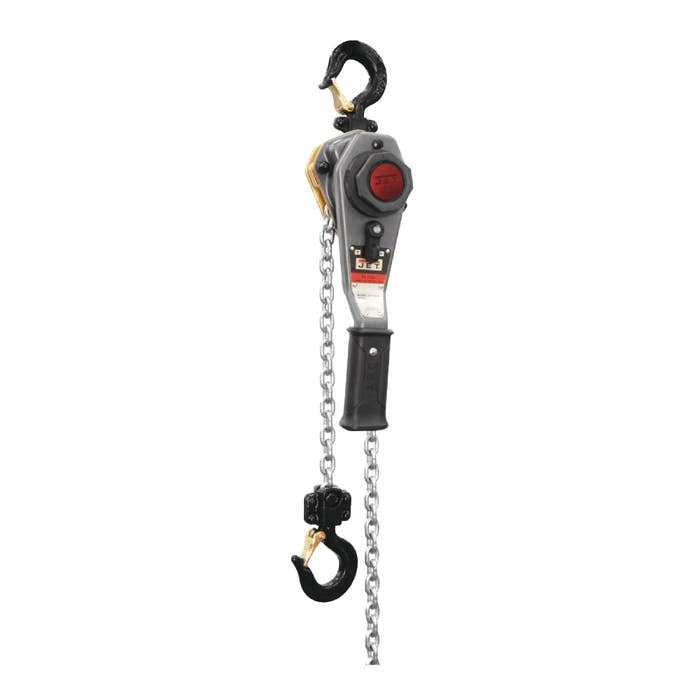

Jet 376102 Lever Hoist 3/4 Ton 15 Foot Lift

Product Description

The JET 376102 is a 3/4-ton lever hoist designed for controlled lifting and pulling in demanding industrial and construction environments. It is built around a Grade 100 alloy load chain with a corrosion-resistant zinc finish, which is 20% stronger than standard Grade 80 chain. The compact link design reduces overall hoist size without sacrificing rated load capacity. Internal components are case hardened and coated for corrosion resistance, extending service life in harsh conditions. Rigging professionals, millwrights, and ironworkers are the primary installers of this equipment.

This lever hoist is suited for residential and commercial construction, steel erection, maintenance and repair operations, and confined-space rigging where a compact, manually operated hoist is required. The 15-foot standard lift distance accommodates most overhead rigging and load-positioning tasks. The single-fall chain configuration is appropriate for loads up to 3/4 ton, and the hoist is load-tested to 125% of rated capacity with certificate included.

Key Features

• Grade 100 alloy load chain is 20% stronger than Grade 80 and features a corrosion-resistant zinc plating
• Slip clutch overload protection prevents lifting or pulling loads beyond rated capacity on 3/4- to 9-ton models; resets by lowering the load
• Fused single-piece brake design consolidates three brake components into one unit, backed by a lifetime replacement warranty
• Brake wear indicator provides a visual signal when friction disks require replacement
• Weston-style double ratchet pawl brake splits the load to opposite sides of the ratchet gear for improved load security
• Two-step free chaining system allows no-load chain adjustment for faster hoist positioning and slack take-up

Compatibility

Designed as an OEM-style replacement or direct-use lever hoist for 3/4-ton manual rigging applications requiring a Grade 100 alloy chain system with a 15-foot lift range.

Installation Notes

Installation and operation should be performed by qualified rigging or maintenance personnel familiar with applicable ASME B30.21 lever hoist standards. Before use, inspect the overhead anchorage point to confirm it is rated for the applied load. Never exceed the 3/4-ton rated capacity. Overload protection resets in the field by lowering the load; do not attempt to force the mechanism.

Technical Specifications

• Load Capacity: 3/4 Ton
• Maximum Lift Distance: 15 feet
• Number of Falls: 1
• Load Chain Diameter: 5.6 x 15.7 mm
• Tool Material: Grade 100 Alloy
• Hook Type: Alloy Steel
• Finish Coating: Zinc
• Weight: 17 pounds
• Rated Capacity Testing: Load tested to 125% of capacity with certificate
• Proposition 65: Yes
• Country of Origin: Import

Standard Information

• Brand: JET
• Manufacturer Part Number: 376102
