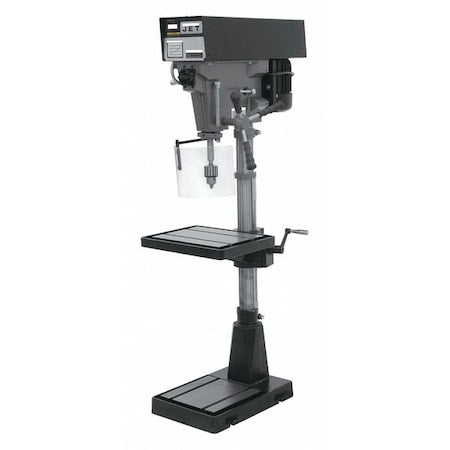

Jet 354551 Floor Drill Press Spline Drive 1 HP 230/460 V 15-Inch Swing Variable Speed

Product Description

The Jet 354551 Floor Drill Press features a spline drive and is powered by a 1 HP motor. It operates on 230/460 volts and supports a swing of 15 inches. With variable speed control and a keyed chuck, this drill press is ideal for precise drilling tasks in metalworking.

• 1 HP Motor
• 15-Inch Swing
• Variable Speed Control

Product Highlights

This Jet floor drill press is built for versatile drilling applications. It features mechanical variable speed drive, a 2MT spindle taper, and a powerful 1 HP motor. The drill press is suitable for drilling in metal and includes an LED readout for enhanced usability.

Product Information

Standard Information

• Product Name: Floor Drill Press
• Brand: Jet
• MPN: 354551
• UPC: 19907100119
• Category: Tools & Machining
• Sub-Category: Drill Presses

Technical Specifications

• Item: Floor Drill Press
• Brand: Jet
• MPN: 354551
• Power: 1 HP
• Voltage: 230/460V AC
• Swing: 15 inches
• Phase: 3
• Amps: 6.2/3.1 A
• Speed Control: Variable
• Speed Range: 400 to 5000 RPM
• Spindle Taper: 2MT
• Chuck Size: 1/2 inch
• Chuck Style: Keyed
• Guard Included: Yes
• Coolant System: No
• Quill Diameter: 2 1/4 inches
• Drilling Capacity in Steel: 1/2 inch
• Spindle-to-Column Distance: 7 1/2 inches
• Spindle Speed: 400 to 5000 RPM
• Weight: 150 lbs
• Overall Height: 71 inches
• Overall Width: 20 inches
• Overall Depth: 30 inches
• Table Dimensions: 12 1/2 x 14 1/2 inches
• Base Size: 10 1/2 x 15 inches
• Base Width: 14 1/4 inches
• Spindle Travel: 6 inches
