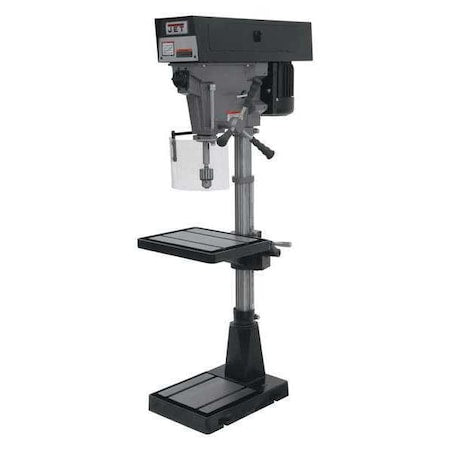

Jet 354500 Floor Drill Press Belt Drive 1 hp 115/230 V 15 in Swing 6 Speed

Product Description

The Jet 354500 is a floor drill press designed for metal applications. This drill press features a one horsepower motor with capabilities for both one hundred fifteen and two hundred thirty volts. With a fifteen-inch swing and six adjustable speeds, this machine is versatile and efficient.

• One horsepower motor for reliable performance
• Variable speed control ranging from four hundred to five thousand RPM
• Keyed chuck style for secure bit holding

Product Highlights

The Jet 354500 is suitable for drilling in various materials, including steel and cast iron. It provides a sturdy and stable base, ensuring precision during operation.

Product Information

Standard Information

• Brand: Jet
• Type: Floor Drill Press

Technical Specifications

• MPN: 354500
• Voltage: 115/230V AC
• Horsepower: 1 hp
• Spindle Taper: 2MT
• Swing: 15 in
• Spindle-to-Column Distance: 15 in
• Table Length: 15 in
• Table Width: 18 in
• Chuck Size: 1/2 in
• Number of Speeds: 6
• Speed Range: 400 to 5,000 RPM
• Overall Height: 71 in
• Quill Diameter: 2 1/4 in
• Drilling Capacity in Steel: 1/2 in
• Drilling Capacity in Cast Iron: 5/8 in
• Base Size: 20-7/8 in x 14-3/16 in
• Weight: 150 lbs
