Product Description

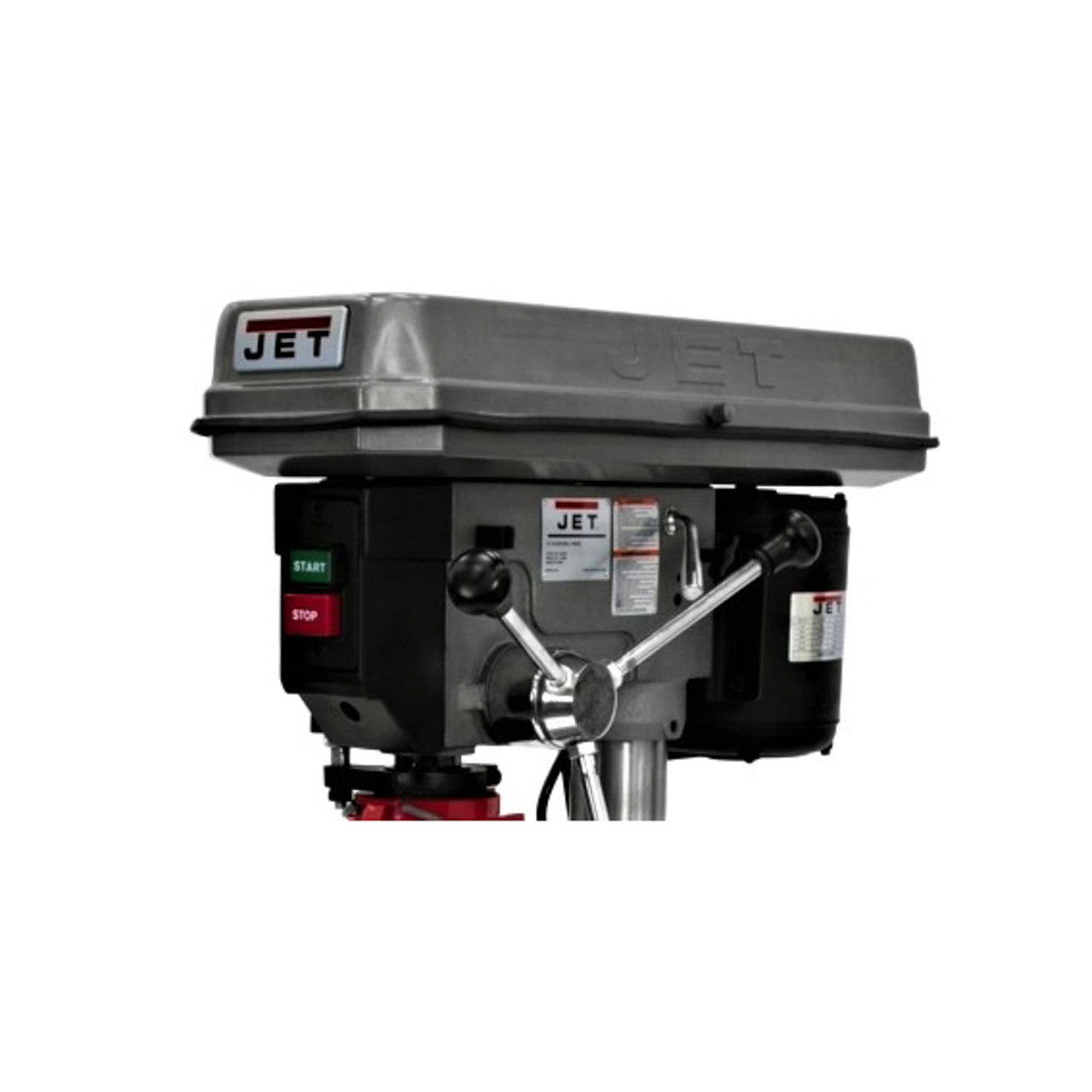

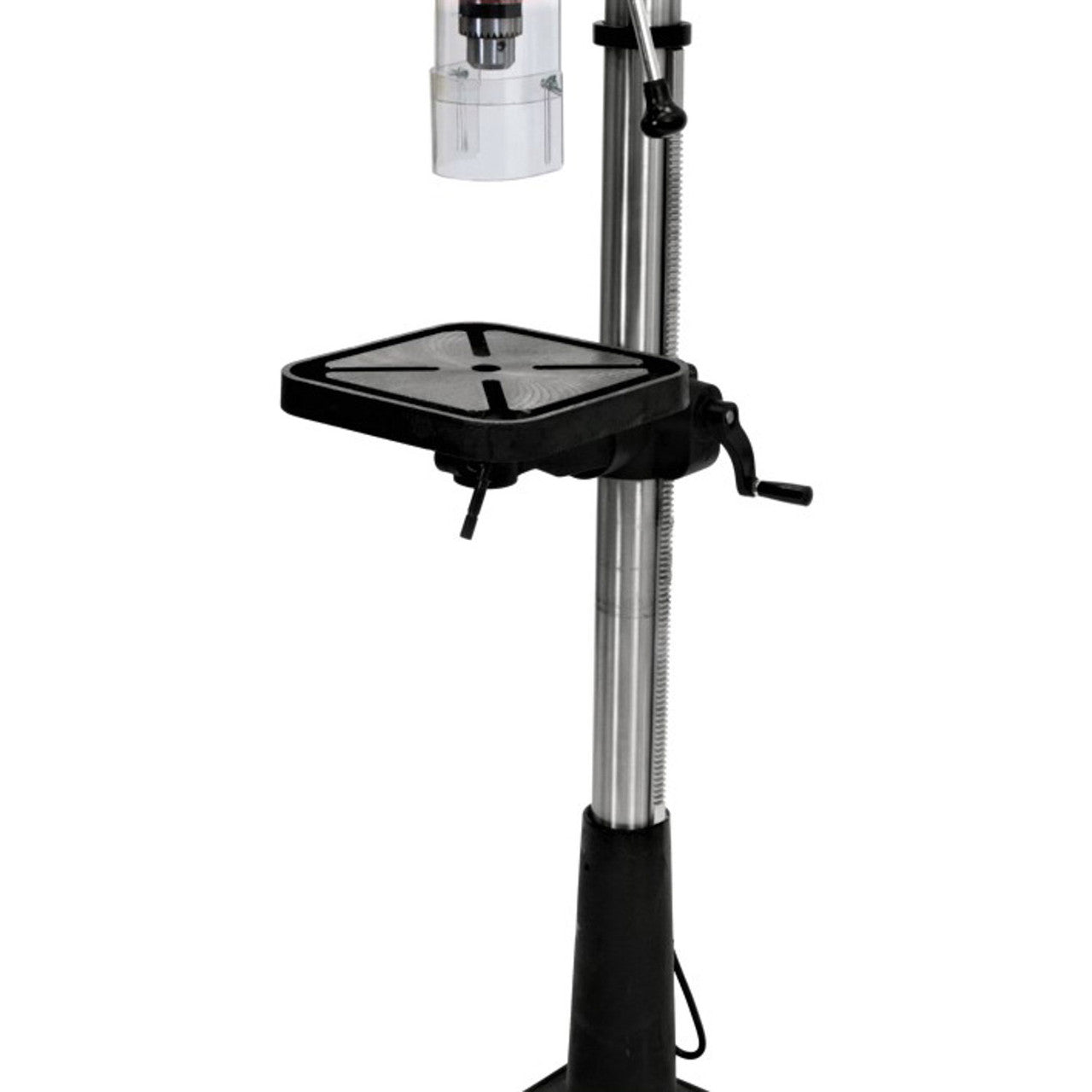

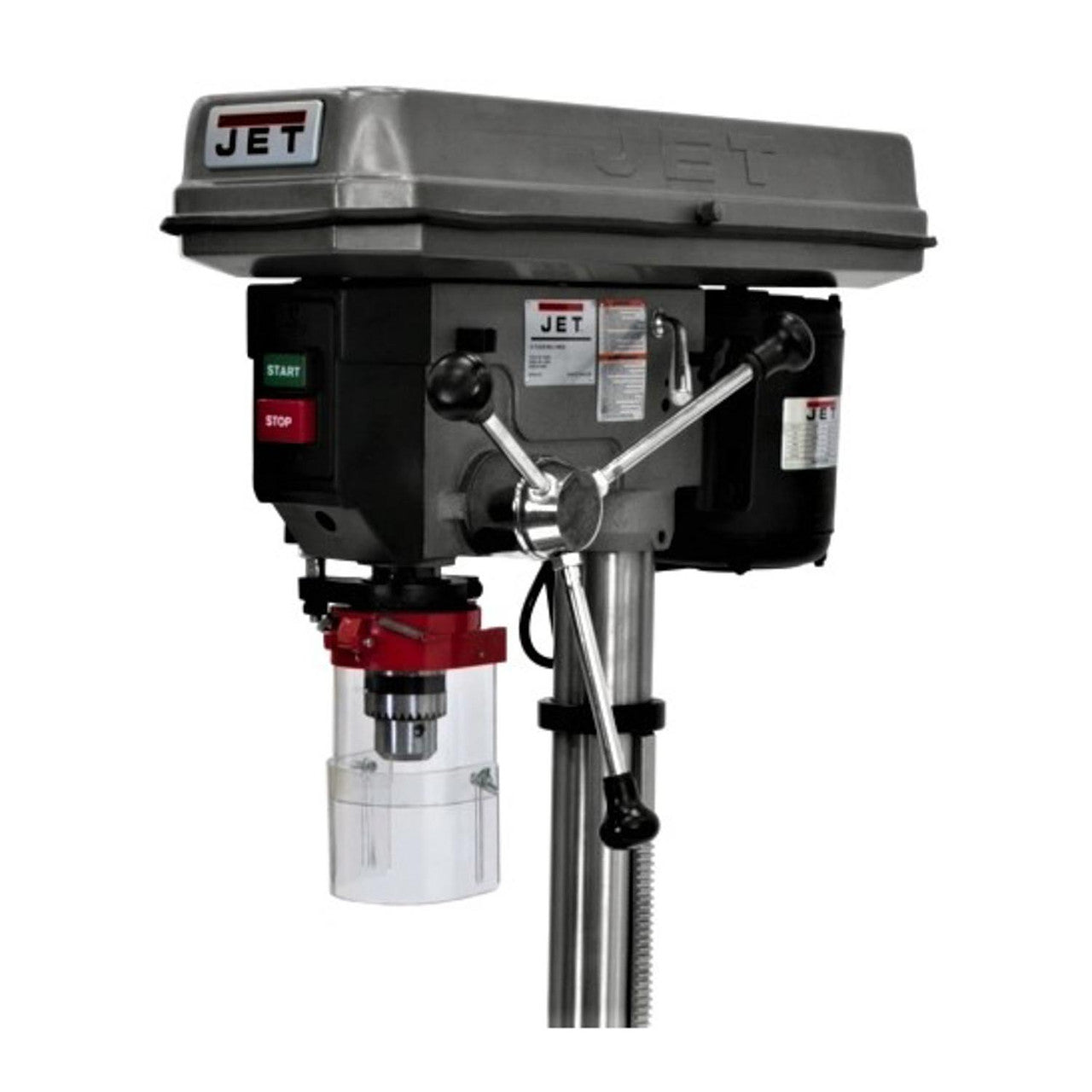

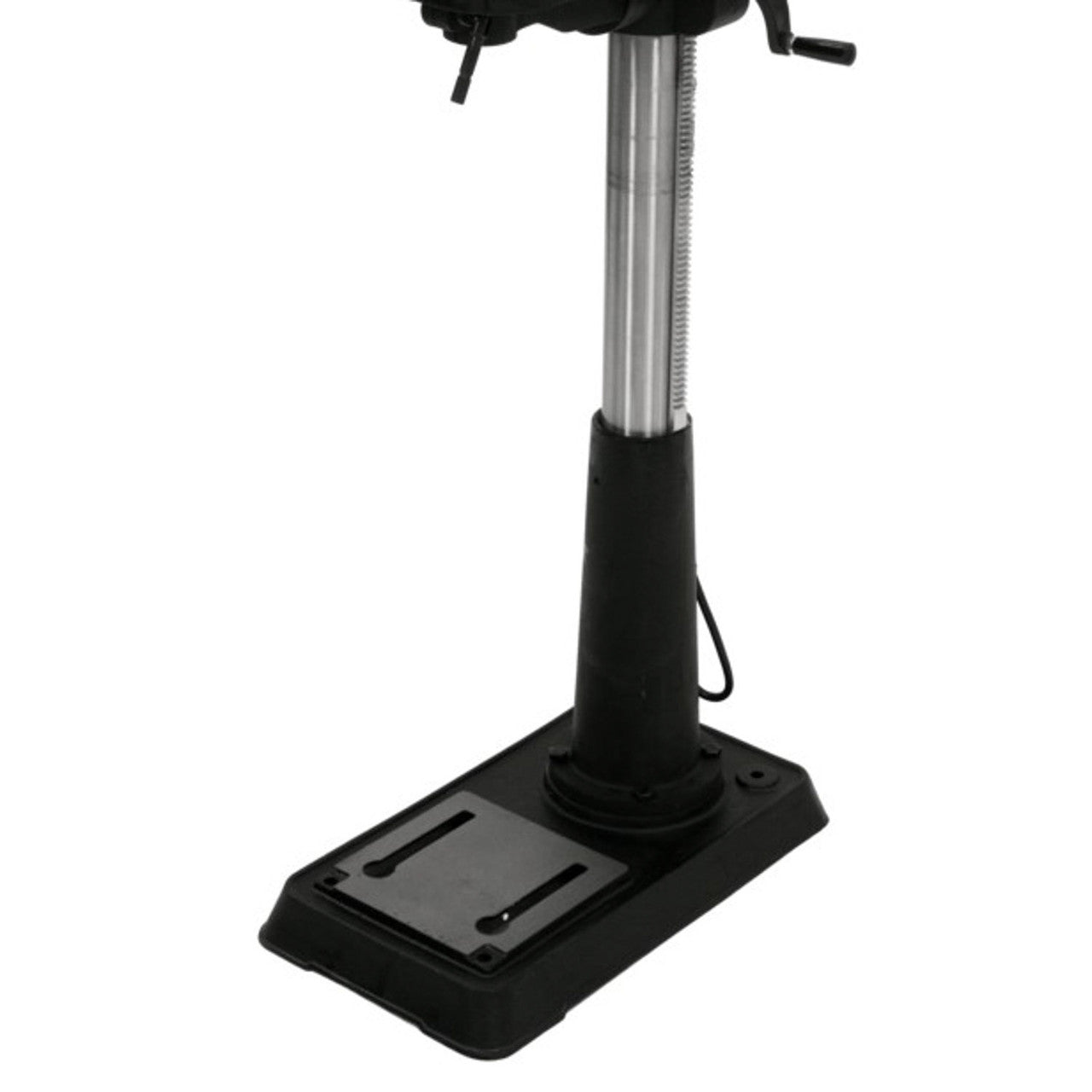

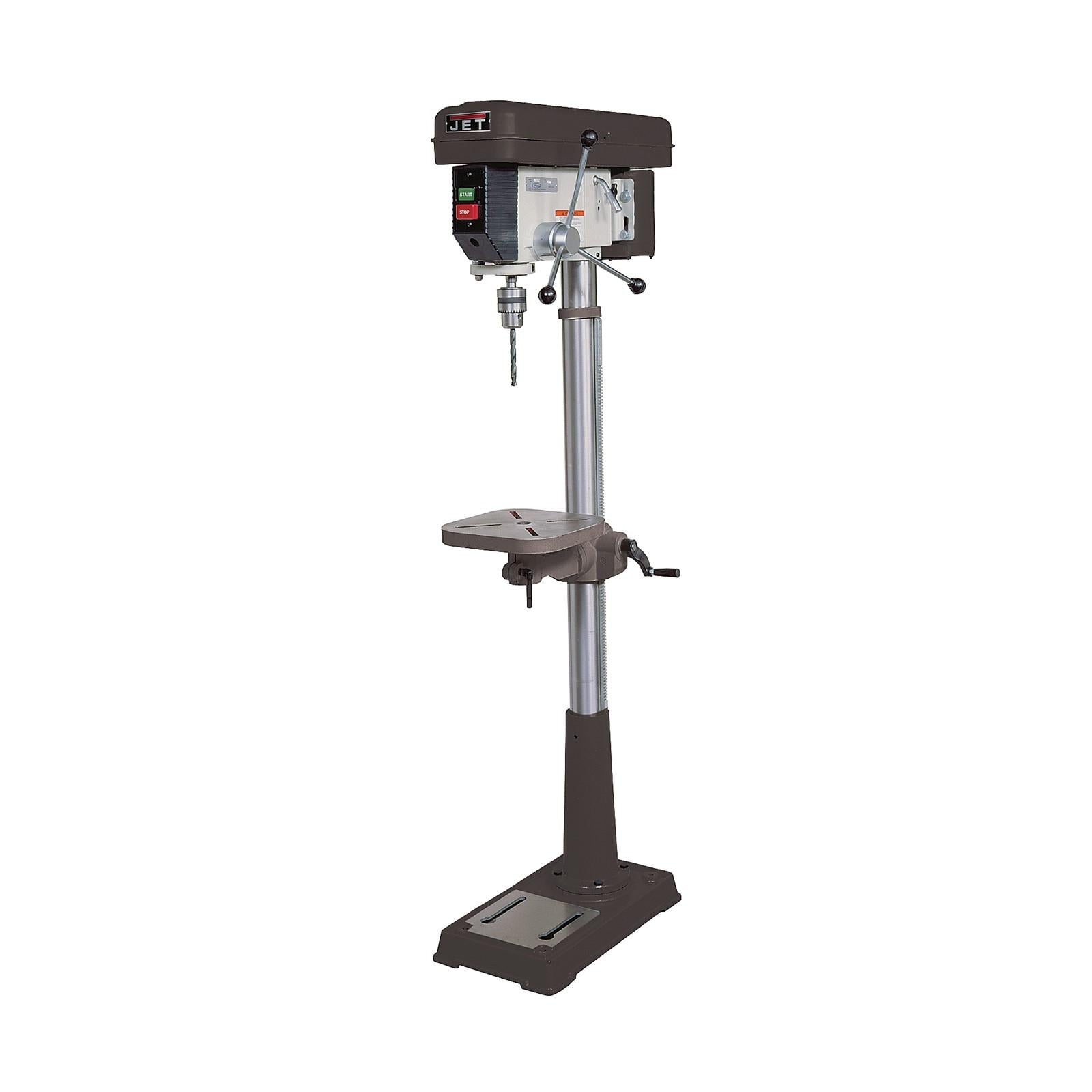

The JET 354400 J-2500 15" Floor Model Drill Press delivers accuracy, stability, and versatility. This drill press features a cast iron head and a large quill for greater accuracy. It has a permanently lubricated ball bearing spindle assembly and a large ground steel column for maximum support. Ideal for metalworking and drilling applications.
- Features a cast iron head for durability.
- Equipped with a large quill for enhanced accuracy.
- Offers 16 spindle speeds ranging from 200 to 3,630 RPM.
Product Highlights
This JET drill press provides precise drilling for various applications with its robust construction and versatile speed range.
Product Information
Standard Information
-
Brand: JET
-
Manufacturer Part Number: 354400
-
Country of Origin: TW
Technical Specifications
-
MPN: 354400
-
Manufacturer: Jet
-
Brand: JET
-
ProductCategory: Power Tools & Accessories
-
Country: CN
-
Motor: 3/4 HP, 115V, 1 Ph
-
Phase: 1
-
Style: Floor
-
Size: 15 in
-
Swing: 15 in
-
Motor Voltage: 115/230V AC
-
Spindle Taper: 2 MT
-
Chuck Size: 5/8 in
-
Motor Horsepower: 3/4 HP
-
Quill Travel: 3-1/8 in
-
Quill Diameter: 1-7/8 in
-
Spindle Travel: 3-3/8 in
-
Base Dimensions: 11 x 19-1/2 in
-
Base Work Table: 7 X 7-1/2 in
-
Column Diameter: 2-7/8 in
-
Range of Spindle Speeds: 200, 290, 350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2, rpm
-
Table Size (L x W): 11-1/2 X 11-1/2 in
-
Number of Spindle Speeds: 16
-
Manufacturers Part Number: 354400
-
Work Table Weight Capacity: 44 lbs
-
Drilling Capacity Cast Iron: 5/8
-
Drilling Capacity Mild Steel: 1/2
-
Spindle Distance To Base: 48 in
-
Spindle Distance To Table (Max): 24 in
-
Drills to Center of Circle: 15 in
-
Base Length [Nom]: 11 in
-
Base Width [Nom]: 19 1/2 in
-
Chuck to Base Distance [Nom]: 48 3/4 in
-
Column Diam: 2 7/8 in
-
Drilling Cap.: 1/2 in (steel);5/8 in (cast iron)
-
No. of Speeds: 16
-
Power Cap. [Max]: 3/4 hp
-
Speed [Max]: 3,630 rpm
-
Speed [Min]: 200 rpm
-
Spindle Thread: 2MT
-
Table/Plate Length: 10 in
-
Table/Plate Width: 10 in
-
Voltage [Nom]: 115 V
-
Hz: 60
-
Item: Floor Drill Press
-
Amps AC: 9.0/4.5
-
Current: 9/4.5 A
-
Voltage: 115/230
-
Includes: Chuck with Key
-
Motor HP: 3/4 hp
-
Drive Type: Belt
-
Horsepower: 3/4 hp
-
Radial Arm: No
-
Table Slot: Yes
-
Table Tilt: 45 Degrees
-
Chuck Style: Keyed
-
Speed Range: 200 to 3,630 RPM
-
Table Shape: Square
-
Table Length: 11 1/2 in
-
Power Source: Corded
-
Corded/Banded: Corded
-
Overall Depth: 31 in
-
Overall Width: 13 3/8 in
-
Speed Control: Fixed
-
Spindle Speed: 200 to 3630 rpm
-
Tilting Angle: 45 Degrees
-
Capacity Steel: 1/2 in
-
Chuck Capacity: 5/8 in
-
Coolant System: No
-
Guard Included: Yes
-
Overall Height: 63 1/2 in
-
Overall Length: 31 in
-
Corded/Cordless: Corded
-
Nominal Voltage: 115/230V AC
-
Drill Press Type: Floor Stand
-
Spindle to Table: 24 1/2 in
-
Number of T-Slots: 0.0
-
Table Work Surface: 9-1/2 in x 9-1/2 in
-
Spindle Speed Range: 200 RPM - 3,630 RPM
-
Table Load Capacity: 44 lb
-
Drill Spindle Travel: 3 in - 4 in
-
Max. Spindle To Base: 48 3/4 in
-
Maximum Spindle Speed: 3,630 RPM
-
Minimum Spindle Speed: 200 RPM
-
Drilling Capacity Wood: Not Specified
-
Maximum Overall Height: 63 in
-
Drill Press Application: Drilling
-
Power Down Feed Included: No
-
Drilling Capacity in Wood: 5/8 in
-
Drilling Capacity in Steel: 1/2 in
-
Spindle-to-Column Distance: 7 1/2 in
-
Drill Press Product Grouping: General Purpose Drill Presses
-
Primary Material Application: Metal
-
Drilling Capacity in Stainless Steel: 1/2 in
-
Country of Origin (subject to change): China
-
Stock Number: JT9-354400
-
Base Dimensions (In.): 11 x 19-1/2
-
Column Diameter (In.): 2-7/8
-
Distance Column to Spindle (In.): 7-1/2
-
Drilling Capacity Cast Iron (In.): 5/8
-
Drilling Capacity Mild Steel (In.): 1/2
-
Drills to Center of Circle (In.): 15
-
Model Number: J-2500
-
Motor (HP): 3/4 HP, 115/230V, 1Ph
-
Overall Dimensions (L x W x H) (In.): 31 x 13 x 63
-
Range of Spindle Speeds (RPM): 200, 290, 350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630
-
Spindle Distance to Base (In.): 48
-
Spindle Distance to Table (Max.) (In.): 24
-
Spindle Taper (In. x TPI): MT-2
-
Spindle Travel (In.): 3-3/8
-
Style (Type): Belt Drive
-
T-Slots Number and Size (In.): 3 - 5/8
-
Table Size (L x W) (In.): 11-1/2 x 11-1/2
-
Table Travel (In.): 24
-
Work Table Weight Capacity (Lbs.): 44
-
Tool Weight: 167 lb
-
UNSPSC: 27112703
