Product Description

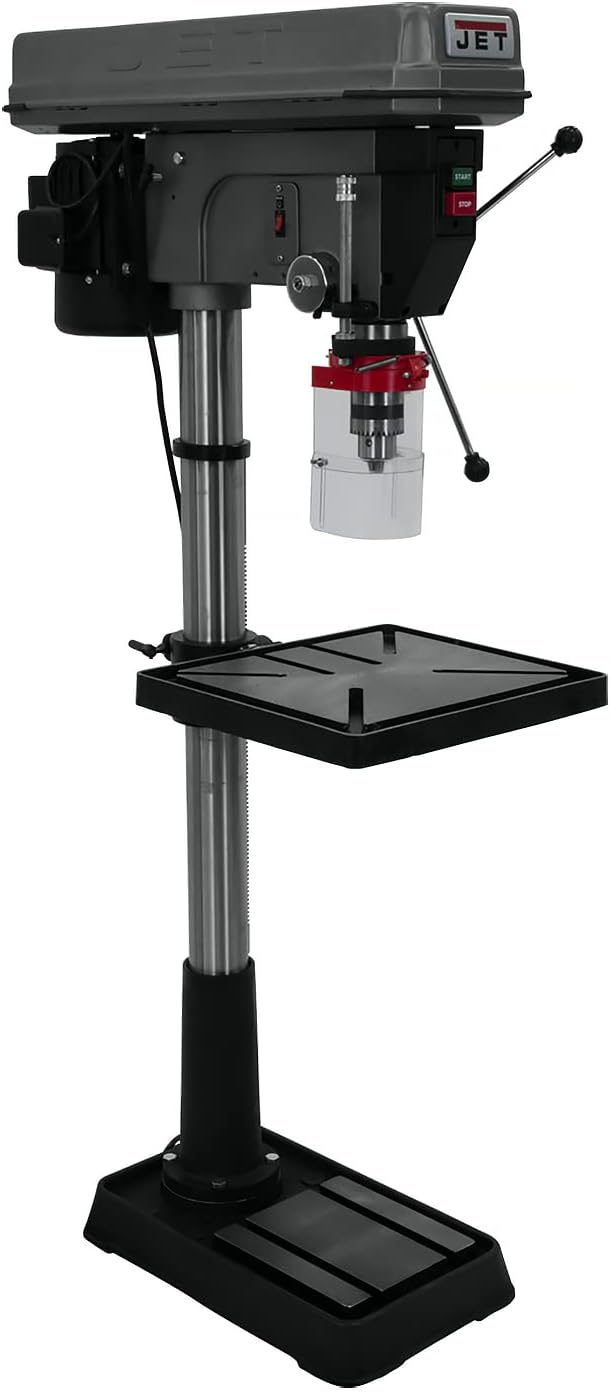

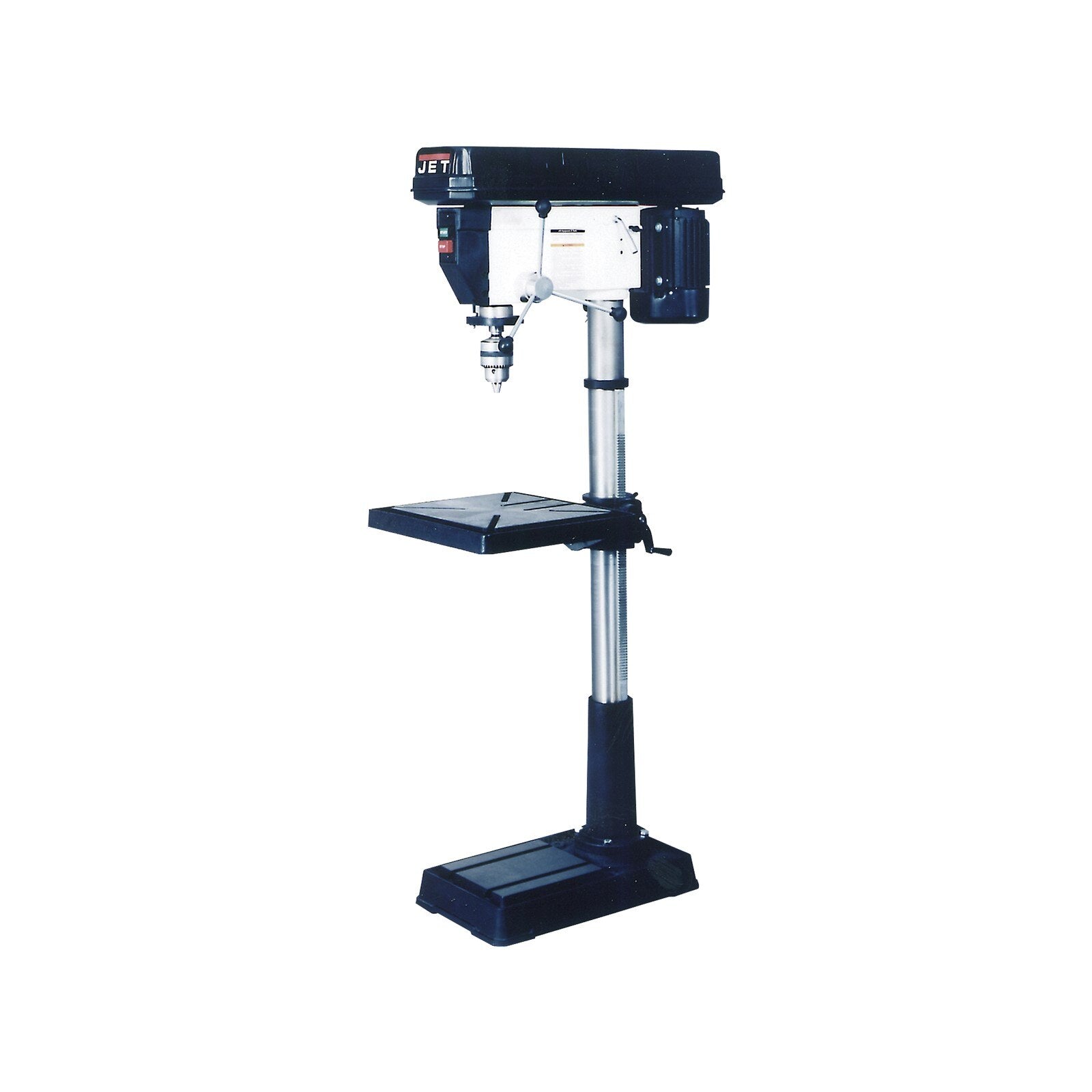

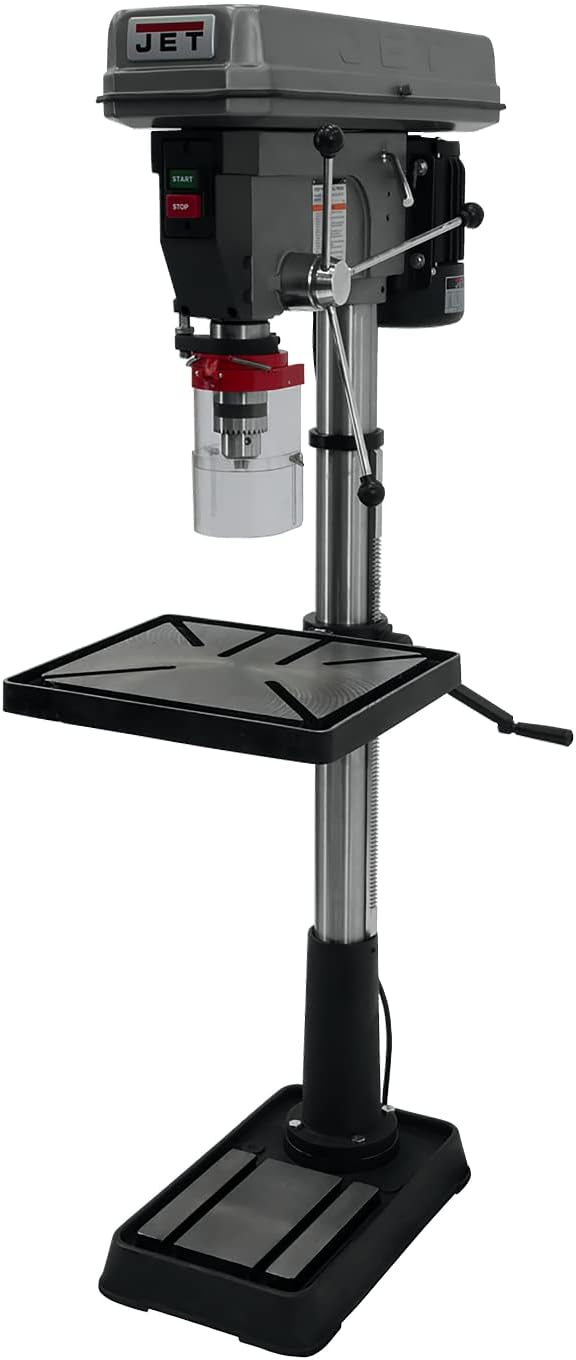

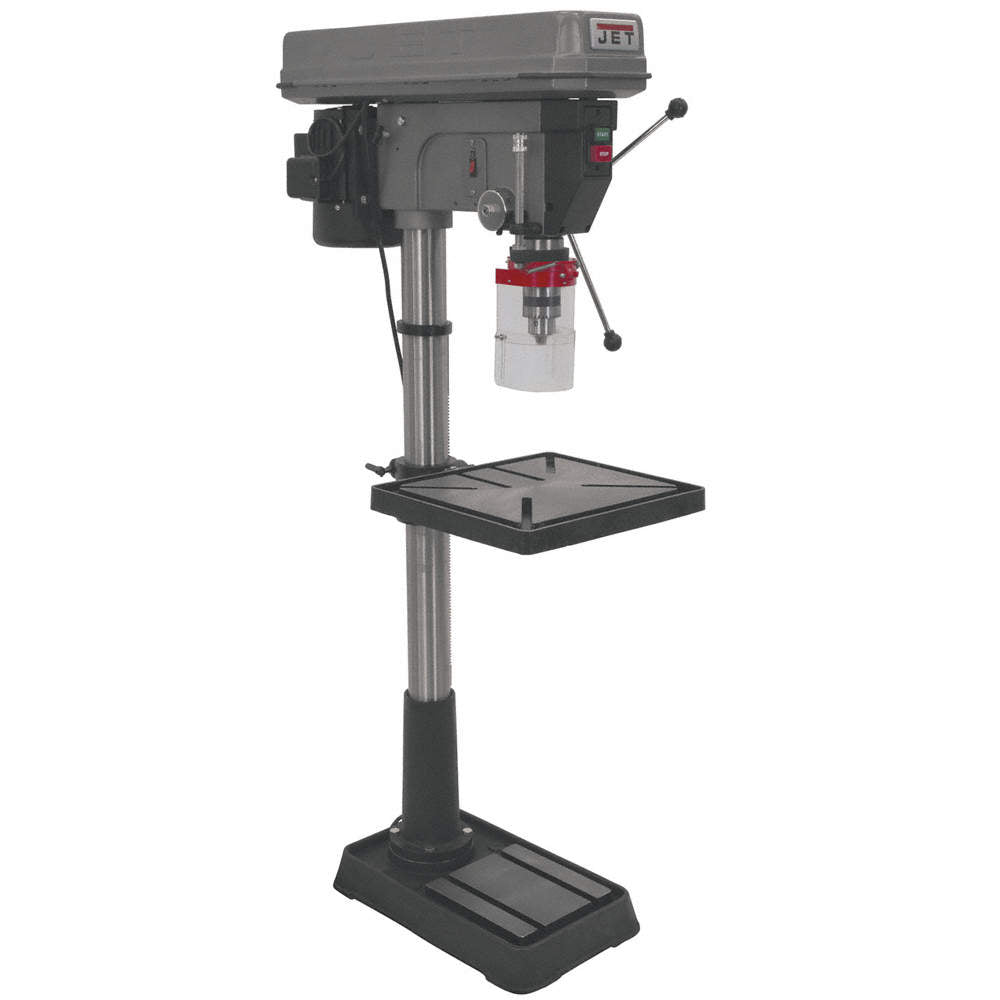

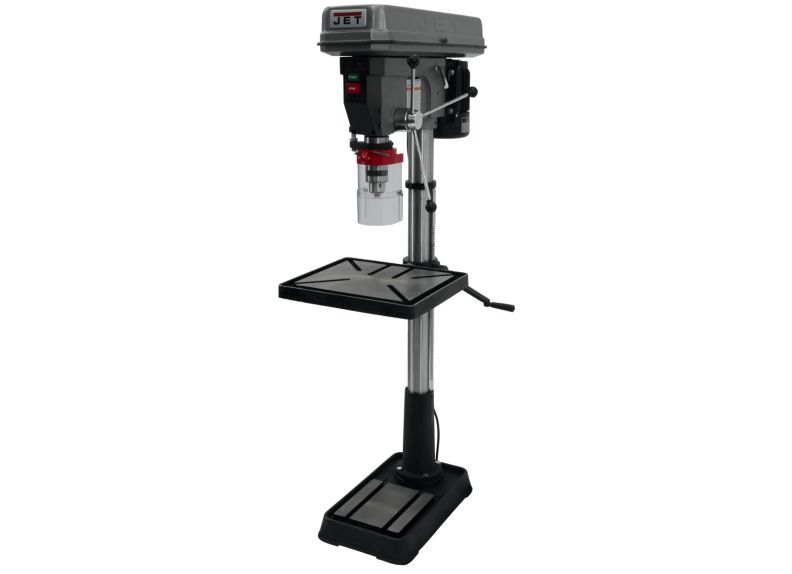

The JET 354170 JDP-20MF 20" Floor Drill Press features accuracy, stability, and versatility. This drill press offers a greater range in spindle speeds than other machines of its class. It is equipped with a hinged metal belt and pulley cover for quick adjustments and a rotating, tilting worktable with a quick-release clamp.
- Hinged metal belt and pulley cover allows for rapid changing of spindle speeds.
- Rotating, 45° tilting, crank-operated worktable with quick release clamp.
- On/off switch located on the front of the drill press head.
Product Highlights
This JET drill press is ideal for metalworking and ensures precise drilling for various applications. It features a permanently lubricated ball bearing spindle assembly for extended life.
Product Information
Standard Information
-
Brand: JET
-
Manufacturer Part Number: 354170
-
Country of Origin: CN
Technical Specifications
-
MPN: 354170
-
ItemID: JET354170
-
DisplayName: JET354170
-
Manufacturer: Jet
-
Brand: JET
-
UOM: Each
-
ProductCategory: Power Tools & Accessories
-
Country: CN
-
SKU: JET354170
-
Speed: 4200 RPM
-
Style: Variable
-
Voltage: 115 Volts
-
Amperage: 15 Amps
-
Horsepower: 1.5
-
Power Source: Corded Electric
-
Maximum Power: 1-1/2 hp
-
Number of Speeds: 12
-
Maximum Chuck Size: 0.75 Inches
-
Batteries Included?: No
-
Batteries Required?: No
-
Included Components: Drill Press, Hardware, Tools, Chuck and Chuck Key, Arbor (MT3xJT4), Drift Tang, Work Lamp (bulb sold separately)
-
Maximum Rotational Speed: 4200 RPM
-
Motor: 1-1/2 HP, 115/230V, 1Ph
-
Phase: 1
-
Prewired: 115V
-
Size: 20 in
-
Motor Voltage: 115/230 V
-
Spindle Taper: MT3
-
Chuck Size: 3/4 in
-
Motor Horsepower: 1-1/2 HP
-
Quill Travel: 4-5/8 in
-
Quill Diameter: 2.44 in
-
Spindle Travel: 4.625 in
-
Base Dimensions: 13-5/8 x 22-3/8 in
-
Base Work Table: 13 X 8-1/2 in
-
Column Diameter: 3 3/8 in
-
T-Slots Centers: 3-1/2 in
-
Range of Spindle Speeds: 150 - 4,200 rpm
-
Table Size (L x W): 18-1/2 X 16 in
-
Number of Spindle Speeds: 12
-
Work Table Weight Capacity: 80 lbs
-
Drilling Capacity Cast Iron: 1
-
Drilling Capacity Mild Steel: 3/4
-
T-Slots Number And Size: 6 & 1/2 in
-
Base Slots Number & Size: 2 X 5/8 in
-
Spindle Distance To Base: 46-3/4 in
-
Drills to Center of Circle: 20 in
-
Spindle Distance To Table (Max): 29-1/8 in
-
Bit/Blade Mounting Size Symbol: Morse #3
-
Center to Side Distance: 10-1/4 in
-
Chuck to Base Distance [Nom]: 46-3/4 in
-
Chuck to Table Distance: 29-1/8 in
-
Control Type: On/Off
-
Drilling Cap.: 1 in (steel)
-
Includes: Chuck with Key
-
Power Cap. [Max]: 1-1/2 hp
-
Speed [Max]: 4,200 rpm
-
Speed [Min]: 150 rpm
-
Stroke Length [Nom]: 4-5/8 in
-
Table/Plate Length: 18-5/8 in
-
Table/Plate Width: 16-1/8 in
-
Tilt [Max]: 45°
-
Voltage [Nom]: 115 VAC; 230 VAC
-
Swing: 20 in
-
Current: 18/9 A
-
Table Slot: Yes
-
Table Tilt: 45 Degrees
-
Table Shape: Rectangular
-
Corded/Banded: Corded
-
Overall Depth: 13 in
-
Overall Width: 26 1/2 in
-
Spindle Speed: 150 to 4200 rpm
-
Tilting Angle: 45 Degrees
-
Capacity Steel: 3/4 in
-
Chuck Capacity: 3/4 in
-
Coolant System: No
-
Guard Included: Yes
-
Overall Height: 58 in
-
Overall Length: 33 1/2 in
-
Corded/Cordless: Corded
-
Nominal Voltage: 115/230V AC
-
Table Slot Size: 1/2 in
-
Drill Press Type: Floor Stand
-
Spindle to Table: 29 1/8 in
-
Table Slot Width: 1/2 in
-
Number of T-Slots: 6.0
-
Table Work Surface: 18-1/2 in x 16 in
-
Spindle Speed Range: 150 RPM - 4,200 RPM
-
Table Load Capacity: 80 lb
-
Drill Spindle Travel: 4 in - 5 in
-
Max. Spindle To Base: 46 3/4 in
-
Maximum Spindle Speed: 4,200 RPM
-
Minimum Spindle Speed: 150 RPM
-
Drilling Capacity Wood: Not Specified
-
Maximum Overall Height: 67 in
-
Drill Press Application: Drilling
-
Power Down Feed Included: No
-
Drilling Capacity in Wood: 3/4 in
-
Drilling Capacity in Steel: 5/8 in
-
Spindle-to-Column Distance: 10 in
-
Drill Press Product Grouping: General Purpose Drill Presses
-
Primary Material Application: Metal
-
Drilling Capacity in Cast Iron: 1 in
-
Maximum Spindle-to-Base Height: 46 3/4 in
-
Maximum Spindle-to-Table Height: 29 1/8 in
-
Drilling Capacity in Stainless Steel: 5/8 in
-
Country of Origin (subject to change): China
-
Base Dimensions (In.): 13-3/4 x 22-3/4
-
Base Work Table (In.): 13 x 8-1/2
-
Column Diameter (In.): 3-3/8
-
Distance Column to Spindle (In.): 10
-
Drilling Capacity Cast Iron (In.): 1
-
Drilling Capacity Mild Steel (In.): 3/4
-
Drills to Center of Circle (In.): 20
-
Model Number: JDP-20MF
-
Motor (HP): 1-1/2 HP, 115/230V, 1Ph
-
Overall Dimensions (L x W x H) (In.): 33-1/2 x 18-1/2 x 67
-
Range of Spindle Speeds (RPM): 150 - 4,200
-
Spindle Distance to Base (In.): 46-3/4
-
Spindle Distance to Table (Max.) (In.): 29-1/8
-
Spindle Taper (In. x TPI): MT-3
-
Spindle Travel (In.): 4-5/8
-
T-Slot Centers (In.): 3-1/2
-
T-Slots Number and Size (In.): 6 and 1/2
-
Table Size (L x W) (In.): 18-1/2 x 16
-
Table Travel (In.): 21-1/2
-
Work Table Weight Capacity (Lbs.): 80
-
Base Slots Number & Size (In.): 2 & 5/8
-
Prewired (V.): 115
-
Weight (Lbs.): 282
-
Dimensions: H: 66 in
-
Dimensions: W: 18.5 in
-
Dimensions: D: 31.5 in
-
Drilling Capacity: 20 in
-
Swing Distance: 20 in
-
Variable Speed Control: Yes
-
Laser Guide: No
-
Built-in Work Light: Yes
-
Digital Readout: No
-
Tilting Table: Yes
-
Motor Power: 1.5 hp
-
Motor Type: Brushed
-
Number of Items in Set: 1
-
Prop 65: Cancer and Reproductive Harm
