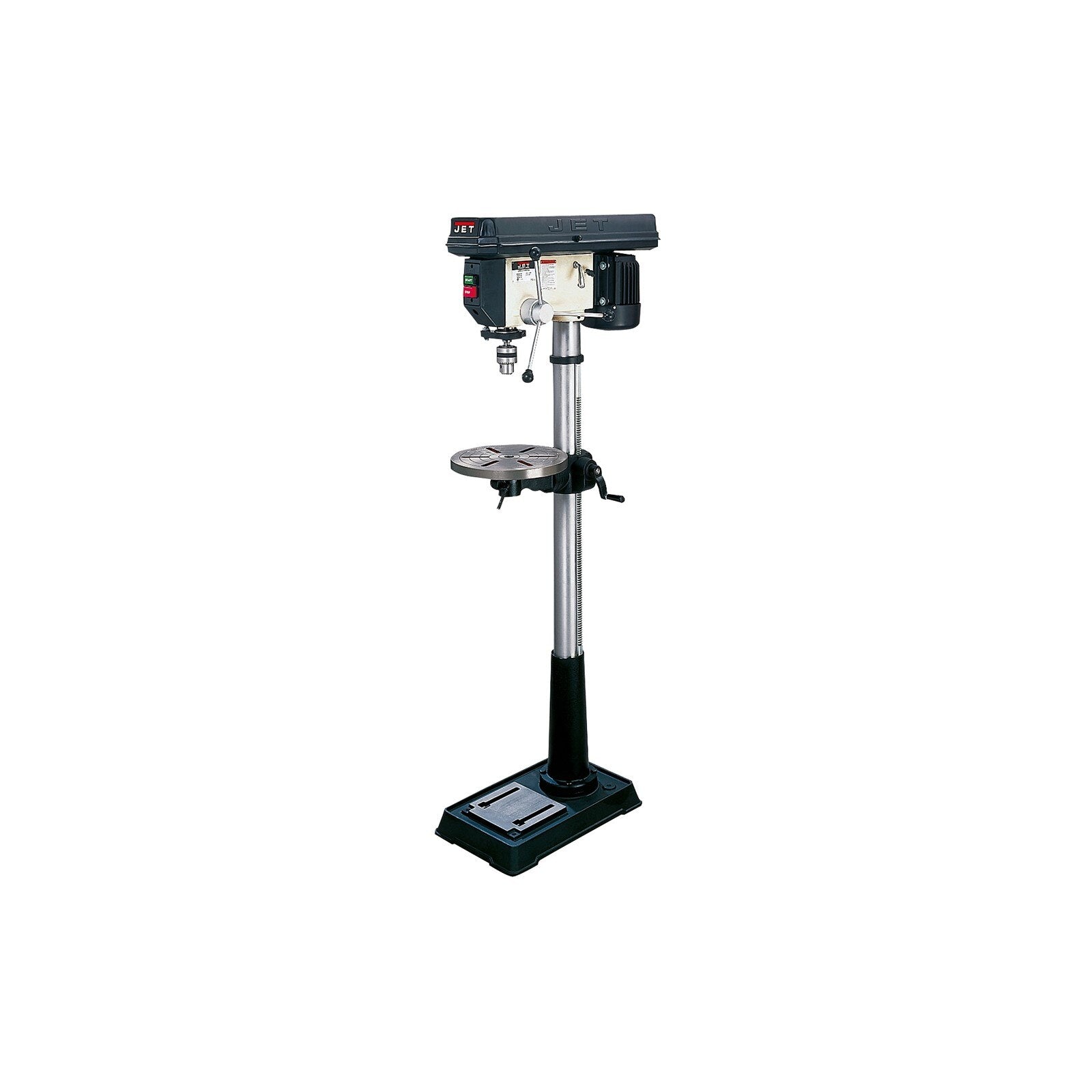

Jet 354169 Floor Drill Press 3/4 Hp 16 Speed

Product Description

The JET 354169 is a floor-standing drill press designed for production drilling in wood, metal, and composite materials. It delivers 3/4 HP of motor output through a 16-speed belt-and-pulley drive system, giving operators broad RPM flexibility across a wide range of bit sizes and materials. The 16-1/2 inch swing rating defines the maximum distance from the spindle centerline to the column, and the 5/8 inch chuck capacity accommodates standard twist, spade, and Forstner bit shanks. This machine is intended for use in industrial shops, fabrication facilities, and trade workshops where a bench-top unit lacks the throat depth or rigidity required for consistent, repeatable hole placement.

The JDP-17MF is suited to metalworking, woodworking, and general fabrication environments. Floor drill presses in this class are commonly found in manufacturing cells, machine shops, millwork operations, and maintenance facilities. The floor column configuration provides full workpiece support for larger stock that cannot be stabilized on a bench-top unit. Machinists, tool-and-die technicians, and skilled fabricators are the primary installers and operators of this equipment.

Key Features

• 16-1/2 inch swing capacity for drilling away from workpiece edges
• 5/8 inch chuck capacity handles a wide range of twist, spade, and Forstner bits
• 16 spindle speeds via belt-and-pulley drive for material-matched RPM selection
• 3/4 HP motor delivers consistent torque across speed ranges
• Floor-standing column design supports large or heavy workpieces without a separate stand

Compatibility

Designed as an OEM-style replacement or direct unit for JET JDP-17MF series floor drill press applications. Confirm column diameter and table mounting interface before ordering replacement sub-assemblies for existing installations.

Installation Notes

Installation of a floor drill press should be performed by a qualified technician or millwright familiar with machinery anchoring requirements. The unit must be secured to a level concrete or reinforced floor surface using appropriate anchor hardware to prevent tip-over during operation. Disconnect and lock out all power sources before performing any belt changes, chuck swaps, or depth-stop adjustments. Local electrical codes apply to the branch circuit supplying the motor; verify voltage and amperage requirements against the motor nameplate before wiring.

Technical Specifications

• Swing: 16.5 inches
• Chuck Capacity: 5/8 inch
• Motor Output: 3/4 HP
• Number of Speeds: 16
• Weight: 209 pounds

Standard Information

• Brand: JET
• Manufacturer Part Number: 354169
