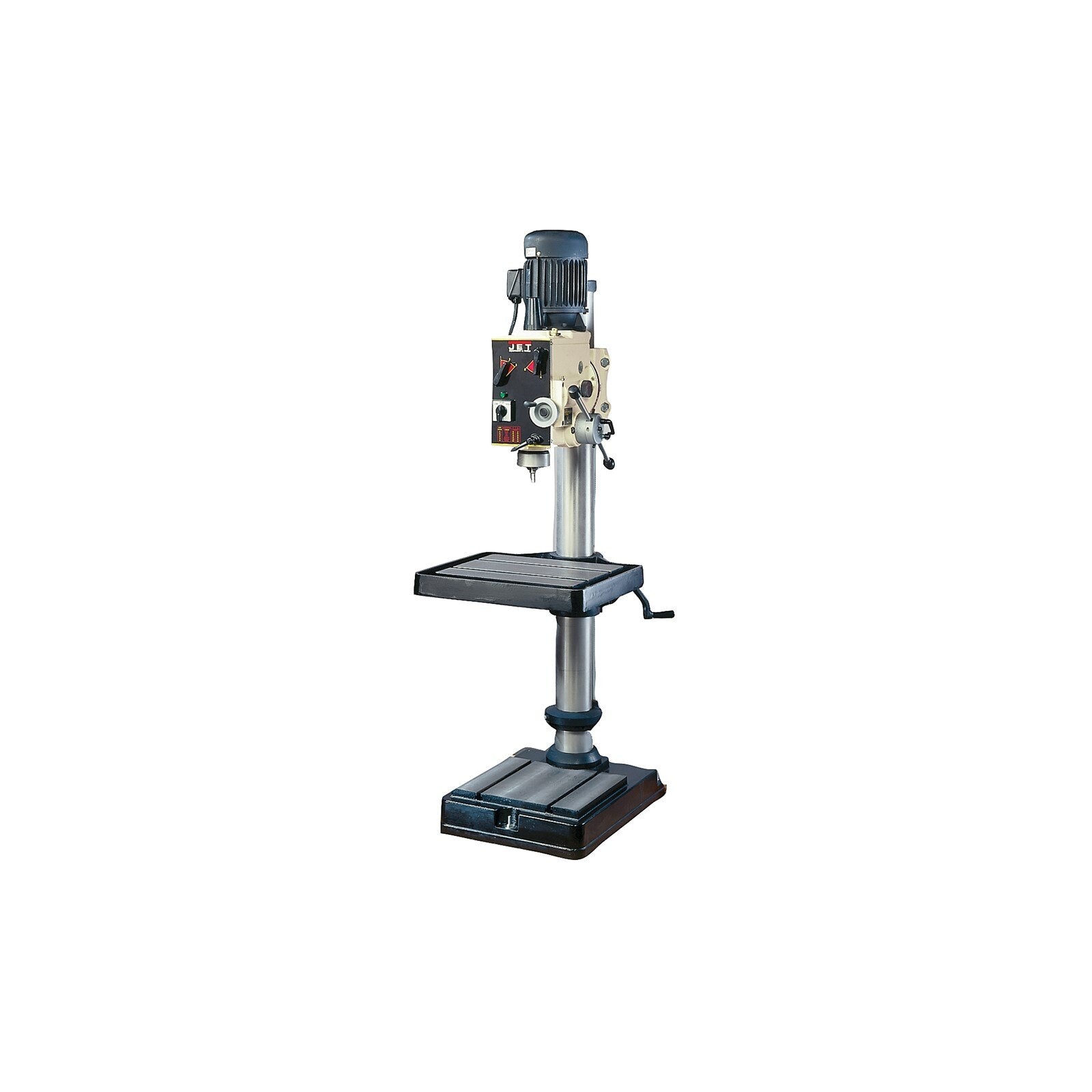

Jet 354024 Gear Head Drill Press 2HP 3ph 230V 12 Speeds

Product Description

The JET 354024 is a gear head drill press with a power down feed mechanism, built for heavy-duty production and precision drilling in industrial and commercial shop environments. It delivers 2 horsepower through a three-phase, 230-volt motor and provides 12 selectable spindle speeds, giving operators the flexibility to match feed rate and speed to the material and bit type. The power down feed automates the quill advance, reducing operator fatigue and improving hole consistency during repetitive operations. The 1-1/4-inch chuck capacity handles large-diameter bits and core drills suited to ferrous and non-ferrous metals, plastics, and composites.

This unit is intended for commercial machine shops, fabrication facilities, and industrial maintenance departments where consistent, repeatable drilling is required. The gear head drive provides torque stability under load, making it appropriate for production runs on steel plate, structural stock, and similar materials. Installation and operation are typically performed by qualified machinery technicians or industrial electricians familiar with three-phase power requirements.

Key Features

• 1-1/4-inch spindle capacity for large-diameter drilling applications
• 2 HP motor provides high torque output for demanding materials
• 12 selectable spindle speeds for matching RPM to material and tooling
• Power down feed automates quill advance for repeatable drilling depth and reduced fatigue
• Gear head drive delivers consistent torque under sustained load
• Three-phase motor configuration suited for commercial and industrial shop power supplies

Compatibility

Designed as a self-contained floor-model gear head drill press; confirm that available shop power is three-phase 230-volt service before installation.

Installation Notes

Installation should be performed by a qualified industrial electrician familiar with three-phase wiring and applicable NEC requirements. Disconnect and lock out all power at the supply panel before making any electrical connections or performing any mechanical adjustments. Anchor the base securely to a level concrete floor per the manufacturer's mounting specifications before operating. Do not operate the machine until all guards are in place and the spindle speed is confirmed appropriate for the tooling installed.

Technical Specifications

• Chuck Capacity: 1-1/4 inches
• Motor Output: 2 HP
• Phase: 3 Phase
• Voltage: 230 volts
• Spindle Speeds: 12
• Weight: 700 pounds
• Feed Type: Power Down Feed

Standard Information

• Brand: JET
• Manufacturer Part Number: 354024
