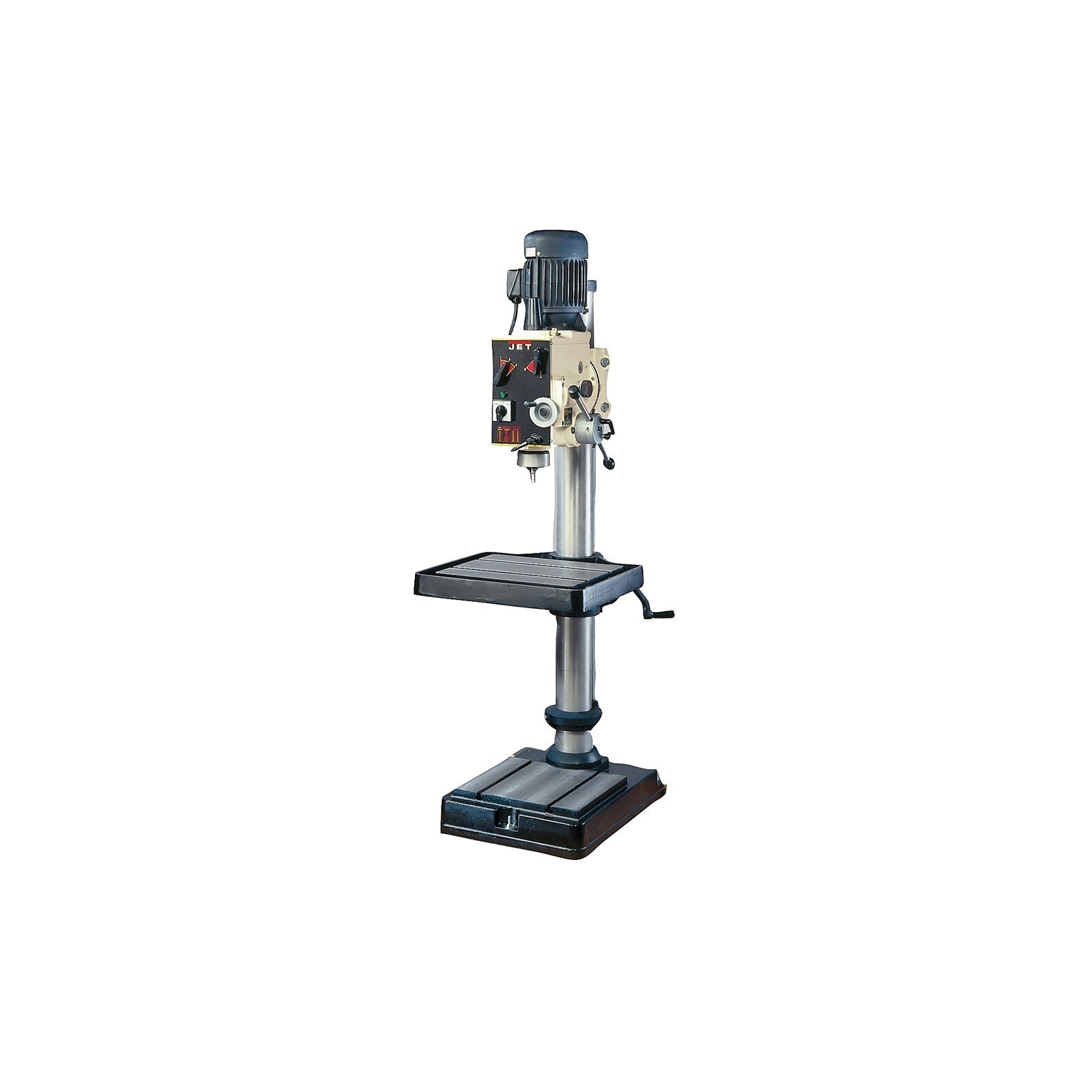

Jet 354022 Drill Press 2HP 3ph 230V 12 Speeds

Product Description

The JET 354022 is a heavy-duty floor drill press designed for manual feed operation with integrated tapping capability. Built for industrial and trade shop environments, this unit delivers a 1-1/4 inch drilling capacity driven by a 2 HP motor running on 3-phase, 230-volt power. Twelve selectable spindle speeds allow operators to match feed rate and RPM to the material and bit type in use. Licensed machinists, tool-and-die shops, metal fabrication facilities, and industrial maintenance crews are the typical end users. The tapping function makes this unit suitable for threading operations without a separate machine, consolidating workflow on a single platform.

This drill press is suited to commercial and industrial shop settings where repetitive drilling and tapping in metal, plastic, or composite materials is required. The 3-phase power requirement places it in facilities with industrial electrical service. It is well matched to production environments, job shops, and trade training facilities where precision hole placement and consistent spindle performance are priorities. Its manual feed design keeps the operator in direct control of downfeed pressure throughout the cut.

Key Features

• 1-1/4 inch drilling capacity supports a wide range of hole sizes in metal and other materials
• Integrated tapping capability eliminates the need for a separate tapping machine
• 12 selectable spindle speeds allow optimization for different materials and tooling
• 2 HP motor on 3-phase, 230-volt power delivers consistent torque under load
• Manual feed operation gives the operator direct control of downfeed pressure

Compatibility

Designed as an OEM drill press unit intended for industrial and commercial shop installations requiring 3-phase electrical service and manual-feed drilling and tapping capability.

Installation Notes

Installation should be performed by a qualified electrician familiar with 3-phase wiring requirements per NEC standards. Disconnect and lock out all power at the panel before making any electrical connections. The unit should be anchored securely to a level concrete or steel floor surface to minimize vibration during operation. Verify that the facility power supply matches the 3-phase, 230-volt requirement before energizing the machine.

Technical Specifications

• Drilling Capacity: 1-1/4 inches
• Motor: 2 HP
• Phase: 3 Phase
• Voltage: 230 volts
• Spindle Speeds: 12
• Feed Type: Manual Feed with Tapping
• Weight: 730 pounds
• Sold As: Each

Standard Information

• Brand: JET
• Manufacturer Part Number: 354022
