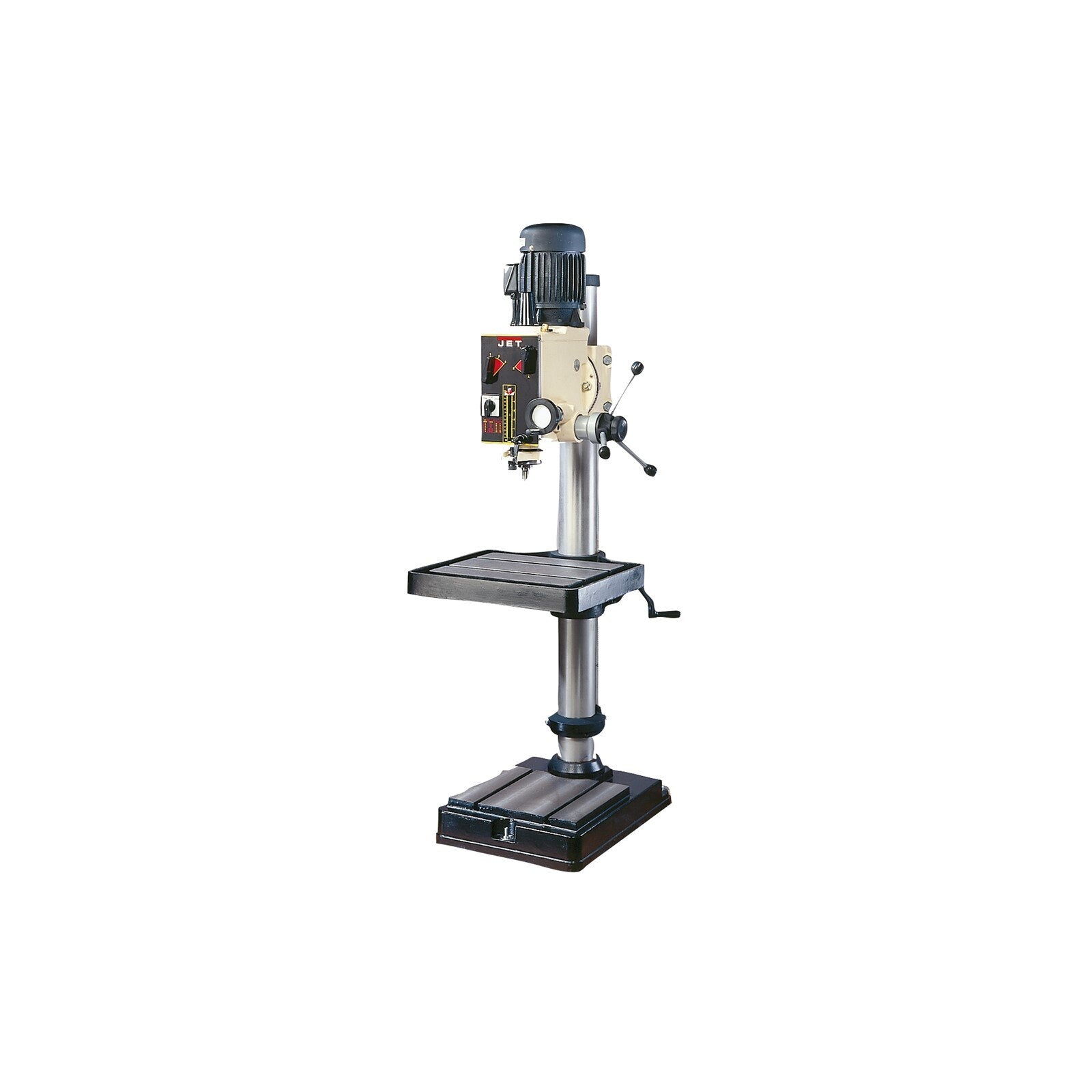

Jet 354020 Floor Drill Press 20 in 2HP 3ph 230V 12 Speed

Product Description

The JET 354020 is a heavy-duty floor drill press designed for demanding drilling operations in industrial and commercial shop environments. Built around a 20-inch swing capacity and a 2 HP motor running on 3-phase 230-volt power, this machine delivers the torque and rigidity needed for consistent, repeatable hole production. The 12-speed configuration allows operators to match spindle RPM to the material and bit diameter at hand. At 698 pounds, the GHD-20 is a floor-standing unit built for permanent installation in production or fabrication shops where precision and durability are non-negotiable requirements. Licensed machinists, millwrights, and industrial maintenance technicians are the primary installers and operators of this equipment.

The GHD-20 floor drill press is suited for metal fabrication shops, machine shops, manufacturing facilities, and heavy-duty woodworking operations that require a full-size floor press with variable speed capability. The 1-1/4-inch drilling capacity supports a wide range of bit sizes and materials. This unit is intended for stationary shop installation and is not designed for portable or jobsite use. The 3-phase electrical requirement makes it appropriate for facilities with industrial power infrastructure already in place.

Key Features

• 20-inch swing capacity supports large workpieces and off-center drilling operations
• 2 HP motor on 3-phase 230-volt power delivers sustained torque for production drilling
• 12-speed spindle allows RPM matching to material type and bit diameter
• 1-1/4-inch maximum drilling capacity handles a broad range of hole sizes
• Floor-standing design provides maximum stability for heavy or oversized workpieces
• Heavy cast construction at 698 pounds minimizes vibration and deflection during operation

Compatibility

Designed as a permanent floor-mounted drill press for industrial and commercial shop installations requiring 3-phase 230-volt power supply.

Installation Notes

Installation should be performed by a qualified electrician and a licensed millwright or machinery installer. Disconnect and lock out all power at the panel before making any electrical connections. The 3-phase 230-volt supply must be verified and properly grounded per NEC requirements before energizing the unit. Anchor the machine to the floor using appropriate hardware to prevent movement during operation, and confirm the work surface and floor loading capacity can support the 698-pound unit weight.

Technical Specifications

• Model: GHD-20
• Swing Capacity: 20 inches
• Maximum Drilling Capacity: 1-1/4 inches
• Motor Power: 2 HP
• Phase: 3-Phase
• Voltage: 230 volts
• Number of Speeds: 12
• Weight: 698 pounds
• Unit of Measure: Each

Standard Information

• Brand: JET
• Manufacturer Part Number: 354020
