Jet 350128 Mill Drill with Newall C80 2-axis Dro

Product Description

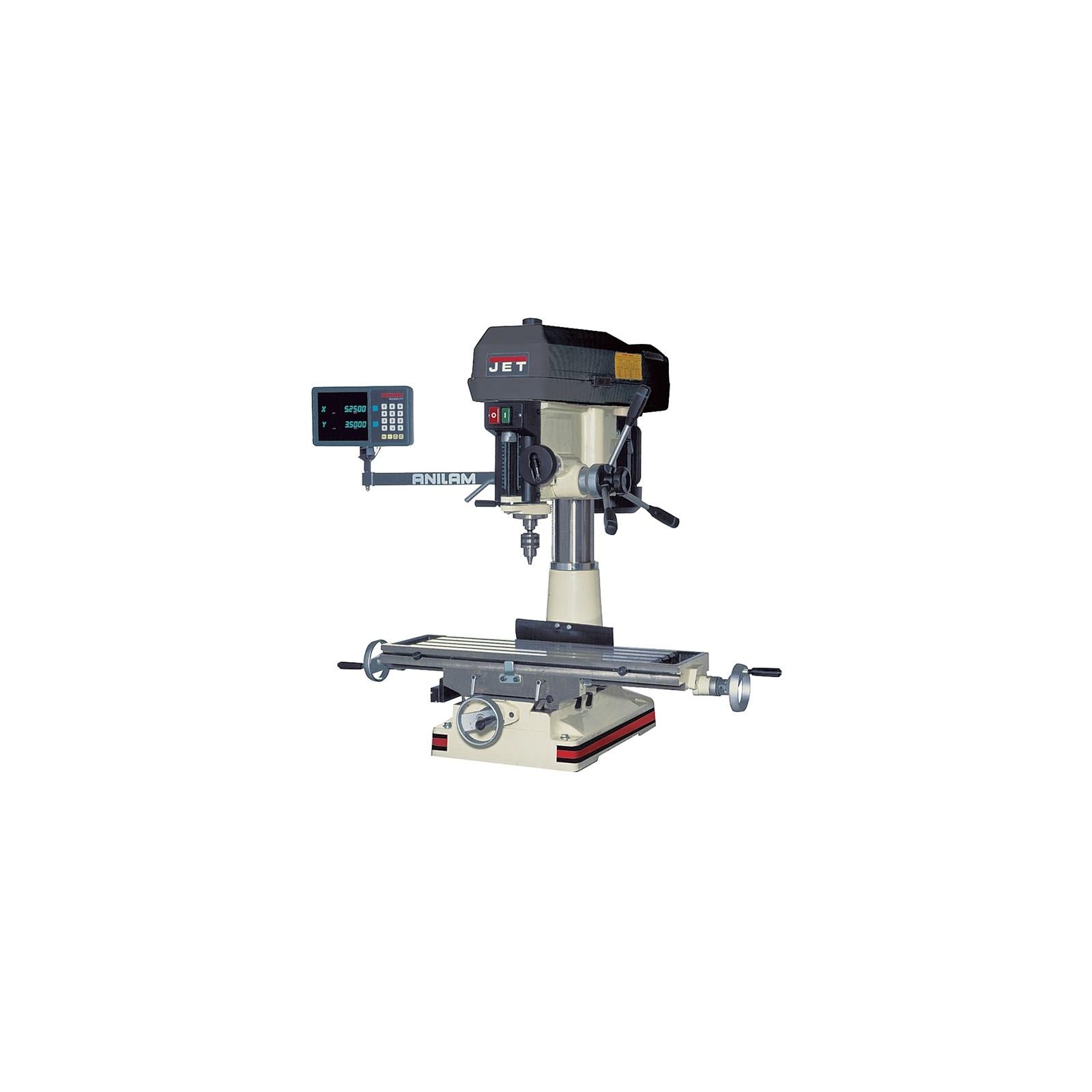

The JET 350128 is a JDM-18PFN mill drill unit supplied with a Newall C80 2-axis digital readout (DRO) system factory installed. The mill drill combines a vertical milling head with drill press functionality in a single-column benchtop or floor-standing configuration, making it a practical machine for shops that need both milling and drilling capability without dedicating floor space to two separate machines. The integrated Newall C80 DRO provides real-time axis position display, reducing reliance on manual handwheel counting and improving repeatability on repeat setups. This machine is installed and serviced by machinists and industrial equipment technicians.

The JDM-18PFN mill drill is suited for light industrial and job shop environments where operators perform drilling, end milling, facing, and slot cutting on metal and other rigid materials. The factory-installed DRO makes this configuration particularly useful for production runs requiring consistent hole patterns or step dimensions. It is appropriate for small fabrication shops, toolrooms, and educational machine shop programs.

Key Features

• JDM-18PFN mill drill platform with vertical milling head and drill press capability
• Newall C80 2-axis DRO factory installed for real-time X and Y axis position readout
• DRO integration improves setup repeatability and reduces manual measurement steps
• Single-unit configuration eliminates separate DRO retrofit labor at installation site
• Weighs 710 pounds — requires appropriate rigging and a reinforced floor mounting surface

Compatibility

Designed as an OEM-configuration mill drill unit. The Newall C80 DRO is matched and installed to the JDM-18PFN mill drill at the factory. Replacement scales, display heads, or accessories should be sourced to match Newall C80 series specifications.

Installation Notes

At 710 pounds, this machine requires mechanical lifting equipment and at least two qualified personnel for unloading and positioning. The machine should be leveled and anchored to a concrete or reinforced floor surface before operation. Electrical connection should be performed by a licensed electrician in accordance with NEC requirements for the machine's rated voltage and amperage. Verify all axis DRO scale alignments and DRO calibration before first use.

Technical Specifications

• Weight: 710 pounds
• DRO System: Newall C80 2-Axis
• UOM: Each
• UPC: 662755514449

Standard Information

• Brand: JET
• Manufacturer Part Number: 350128
