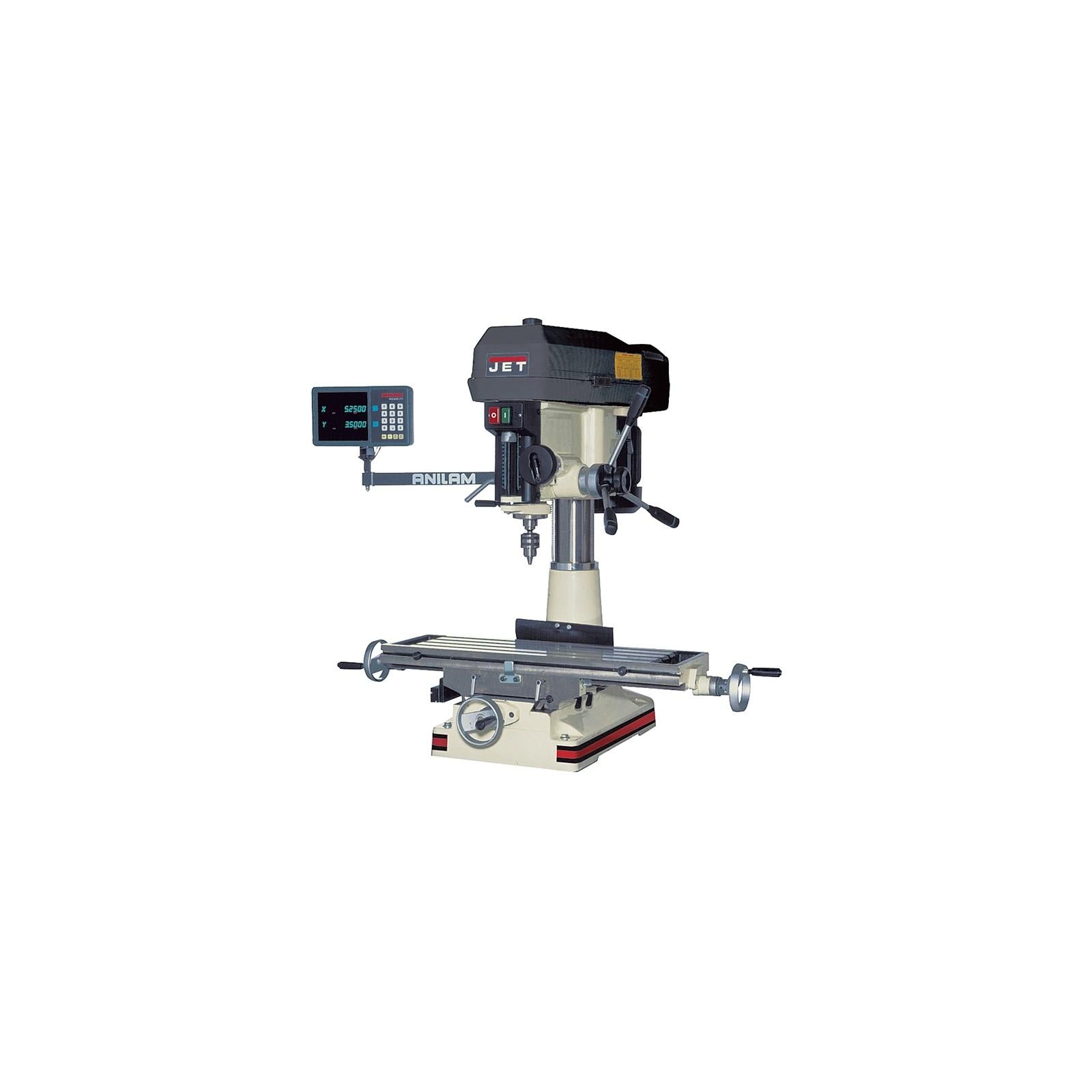

Jet 350125 Mill Drill with Newall C80 Dro 1 Hp

Product Description

The JET 350125 is a mill/drill machine with a Newall C80 digital readout (DRO) pre-installed, designed for precision metalworking and fabrication applications. It runs on a 1 HP single-phase motor rated for 115 or 230 volts, giving shops flexibility in matching their available power supply. Spindle speed ranges from 110 to 2580 RPM, allowing operators to dial in the correct cutting speed for a wide range of materials and tooling. The table provides 14 inches of longitudinal travel. This machine is typically installed by millwrights, tool-and-die technicians, or experienced machinists in production and maintenance shop environments.

The JMD-15 mill/drill configuration suits light to medium-duty milling, drilling, and boring tasks. The factory-installed Newall C80 DRO eliminates post-purchase installation labor and provides immediate digital axis readout on delivery. It is well suited for job shops, maintenance departments, vocational training facilities, and small fabrication operations that require accurate manual milling capability without the footprint of a full-size knee mill.

Key Features

• Newall C80 DRO factory-installed for immediate digital axis readout
• 1 HP single-phase motor with dual-voltage input: 115 or 230 volts
• Spindle speed range of 110 to 2580 RPM for versatile material and tooling compatibility
• 14 inches of table longitudinal travel
• Mill/drill combination design reduces floor space compared to separate machine setups

Compatibility

Designed as an OEM-configuration mill/drill unit intended for standard single-phase shop power supplies at 115 or 230 volts. Consult the JET JMD-15 documentation for approved tooling, collet sizes, and accessory compatibility.

Installation Notes

Installation should be performed by a qualified millwright or electrician familiar with machinery anchoring and single-phase power connections. Power down and lock out the circuit before making any electrical connections; verify the supply voltage matches the machine's configured voltage tap before energizing. The machine should be leveled and anchored to a suitable floor or workbench per the manufacturer's installation instructions and applicable local codes. Do not exceed the rated spindle speeds or table travel limits specified in the operator manual.

Technical Specifications

• Motor: 1 HP, Single Phase
• Voltage: 115 or 230 volts
• Spindle Speed Range: 110 to 2580 RPM
• Table Longitudinal Travel: 14 inches
• DRO: Newall C80
• Weight: 440 pounds
• UOM: Each

Standard Information

• Brand: JET
• Manufacturer Part Number: 350125
