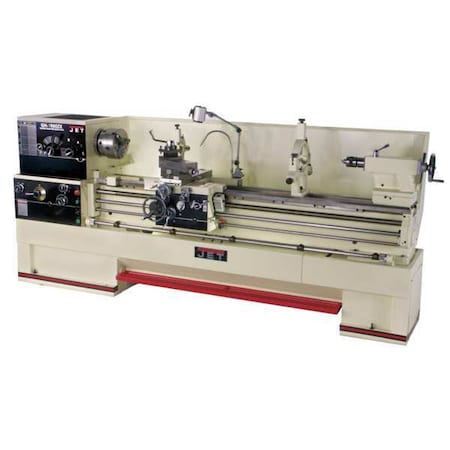

Jet 321970 Large Spindle Bore Lathe 7-1/2HP 3P

Product Description

The Jet 321970 Large Spindle Bore Lathe is vital for accurate turning and machining. This lathe features a powerful 7-1/2 horsepower motor and operates with a spindle speed ranging from 25 to 1,800 RPM. Designed for professional-grade automotive and industrial applications, this lathe ensures high precision and durability.

• 7-1/2 horsepower motor
• Spindle speed range: 25-1,800 RPM
• Designed for automotive and industrial use

Product Highlights

The Jet 321970 lathe is engineered for accuracy and efficiency in turning applications.

Product Information

Standard Information

• Brand: Jet
• Model: 321970
• Product Type: Lathe
• Voltage: 230/460V AC
• Phase: Three

Technical Specifications

• Distance Between Centers: 80 in
• Overall Height: 136 in
• Overall Length: 136 in
• Overall Width: 44 in
• Spindle Speed (RPM): 25 to 1800
• Tailstock Taper: MT3
• Spindle Nose Type: D1-4 Camlock
• Gap Length: 12 in
• Bed Width: 9 1/2 in
• Motor HP: 7-1/2
• Spindle Bore: 3 1/8 in
• Application: Turning
• Sound Level: 88 dB
