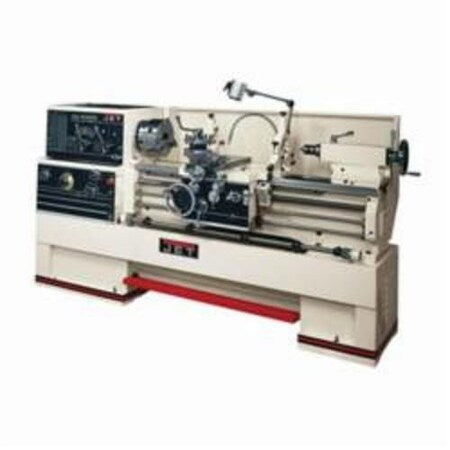

Jet 321879 Engine Lathe Large Spindle Bore Series ZX Series 22 Swing Over Bed 13 Swing Over Cross Slide

Product Description

The Jet Engine Lathe with MPN 321879 features a large spindle bore and is part of the ZX Series. This lathe has a swing over bed of twenty-two inches and a swing over cross slide of thirteen inches. It offers an eighty-inch distance between centers and provides precision for various machining tasks.

• Powerful twelve horsepower motor.
• Speed range from twenty-five to one thousand eight hundred revolutions per minute.
• Robust cast iron base for vibration absorption.

Product Highlights

The ZX Series lathe combines power and accuracy, making it essential for metalworking projects.

Product Information

Standard Information

• Brand: Jet
• MPN: 321879

Technical Specifications

• Swing Over Bed: 22 inches
• Swing Over Cross Slide: 13 inches
• Distance Between Centers: 80 inches
• Bed Width: 13 inches
• Tailstock Taper: 5 Morse Taper
• Spindle Taper: 7 Morse Taper
• Spindle Speed: 25 to 1800 rpm
• Cross Travel: 12 inches
• Tailstock Spindle Travel: 5 inches
• Carriage Travel: 74 inches
• Compound Travel: 5 inches
• Maximum Cross Feed Rate: 0.00365 inches per revolution
• Maximum Longitudinal Feed Rate: 0.00632 inches per revolution
• Voltage: 230/460 VAC
• Overall Dimensions: 136 inches L x 45 inches W x 71 inches H
• Country of Origin: China
