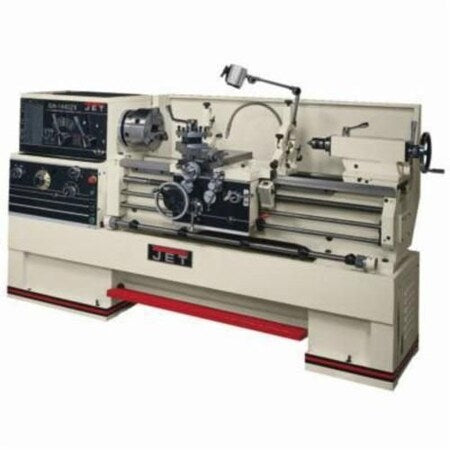

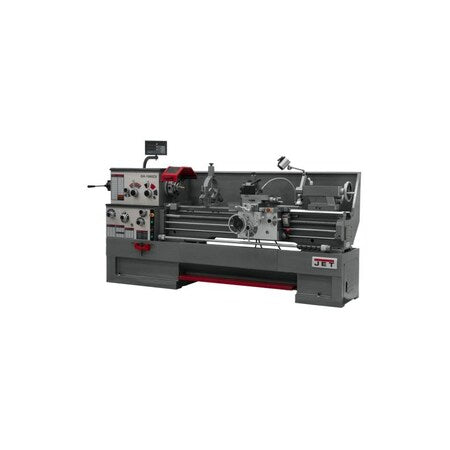

Jet 321576 Engine Lathe ZX Series 16 Inch Swing Over Bed 10 Inch Swing Over Cross Slide 60 Inch Distance Between Centers

Product Description

The Jet 321576 Engine Lathe from the ZX Series is precision engineered for professional machinists seeking reliability and accuracy. With a 16 inch swing over bed and 10 inch swing over cross slide, this lathe allows for versatile project capabilities. Designed to handle demanding jobs, its 60 inch distance between centers provides ample working space.

• 16 inch swing over bed
• 10 inch swing over cross slide
• 60 inch distance between centers

Product Highlights

The Jet 321576 Engine Lathe combines robust construction with advanced features to deliver exceptional performance. Ideal for various machining tasks, its precision components ensure consistent results.

Product Information

Standard Information

• Brand: Jet
• Series: ZX Series
• Model Number: 321576
• Country of Origin: China

Technical Specifications

• Swing Over Bed: 16 inches
• Swing Over Cross Slide: 10 inches
• Distance Between Centers: 60 inches
• Bed Width: 13.18 inches
• Tailstock Taper: 4 Morse Taper
• Spindle Taper: 7 Morse Taper, 5 Morse Taper
• Spindle Speed: 25 to 1800 RPM
• Speed Range: 12 speeds
• Cross Travel: 9 inches
• Tailstock Spindle Travel: 5 inches
• Carriage Travel: 55.916 inches
• Compound Travel: 5.18 inches
• Max Cross Feed Rate: 0.0006 to 0.00365 inches per revolution
• Max Longitudinal Feed Rate: 0.0015 to 0.00913 inches per revolution
• Power: 7.5 horsepower
• Voltage: 230/460 VAC
• Dimensions: 115 x 44 x 66 inches
