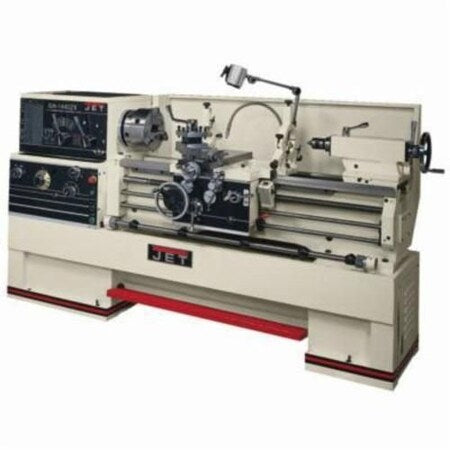

Jet 321569 Engine Lathe Series ZX Series 14 Swing Over Bed

Product Description

The Jet Engine Lathe, MPN 321569, is a powerful tool designed for precision machining tasks. It features a fourteen-inch swing over the bed and a seven hundred fifty-eight-inch swing over the cross slide. The lathe has a forty-inch distance between centers, making it suitable for various machining applications.

• Four Morse Taper tailstock taper for effective tool holding.
• Spindle speed ranges from forty-two to eighteen hundred revolutions per minute.
• High horsepower for demanding jobs.

Product Highlights

This lathe is ideal for craftsmen and engineers who need reliable performance and accuracy in machining.

Product Information

Standard Information

• Brand: Jet
• MPN: 321569

Technical Specifications

• Swing Over Bed: 14 inches
• Swing Over Cross Slide: 758 inches
• Distance Between Centers: 40 inches
• Bed Width: 1338 inches
• Spindle Speed: 42 to 1800 rpm
• Horsepower: 7.5 hp
• Voltage: 230/460 VAC
• Dimensions: 96 x 44 x 66 inches
