Jet 321568 Engine Lathe Series ZX Series 22 Swing Over Bed 13 Swing Over Cross Slide 80 Distance Betwee

Product Description

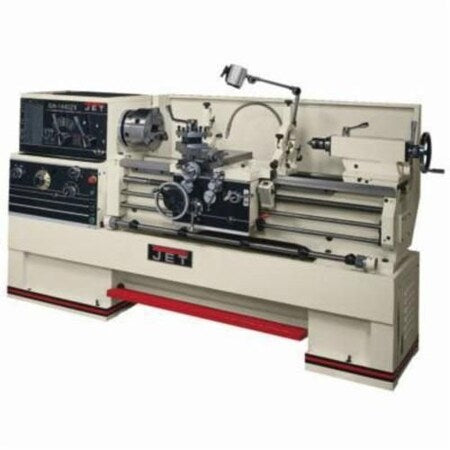

The Jet 321568 Engine Lathe from the Series ZX Series offers precision machining. This lathe provides a 22-inch swing over bed and 13-inch swing over cross slide, covering various machining tasks. With an 80-inch distance between centers, it is designed for professional use.

• 22-inch swing over bed
• 13-inch swing over cross slide
• 80-inch distance between centers

Product Highlights

This Jet engine lathe is essential for machining large parts with precision. It features an advanced spindle speed range and various feed rates, making it suitable for diverse applications.

Product Information

Standard Information

• Brand: Jet
• MPN: 321568
• UPC: 662755918339

Technical Specifications

• Series: ZX Series
• Swing Over Bed: 22 inches
• Swing Over Cross Slide: 13 inches
• Distance Between Centers: 80 inches
• Bed Width: 13.18 inches
• Tailstock Taper: Morse Taper No. 5
• Spindle Speed: 25 to 1800 rpm
• Spindle Speed Steps: 12
• Cross Travel: 12 inches
• Tailstock Spindle Travel: 5 inches
• Carriage Travel: 74.516 inches
• Compound Travel: 5.18 inches
• Maximum Cross Feed Rate Per Revolution: 0.0006 to 0.00365 inches
• Maximum Longitudinal Feed Rate Per Revolution: 0.0015 to 0.00913 inches
• Motor Power: 10 hp
• Voltage: 230/460 VAC
• Dimensions: 136 x 45 x 71 inches
• Country of Origin: China
