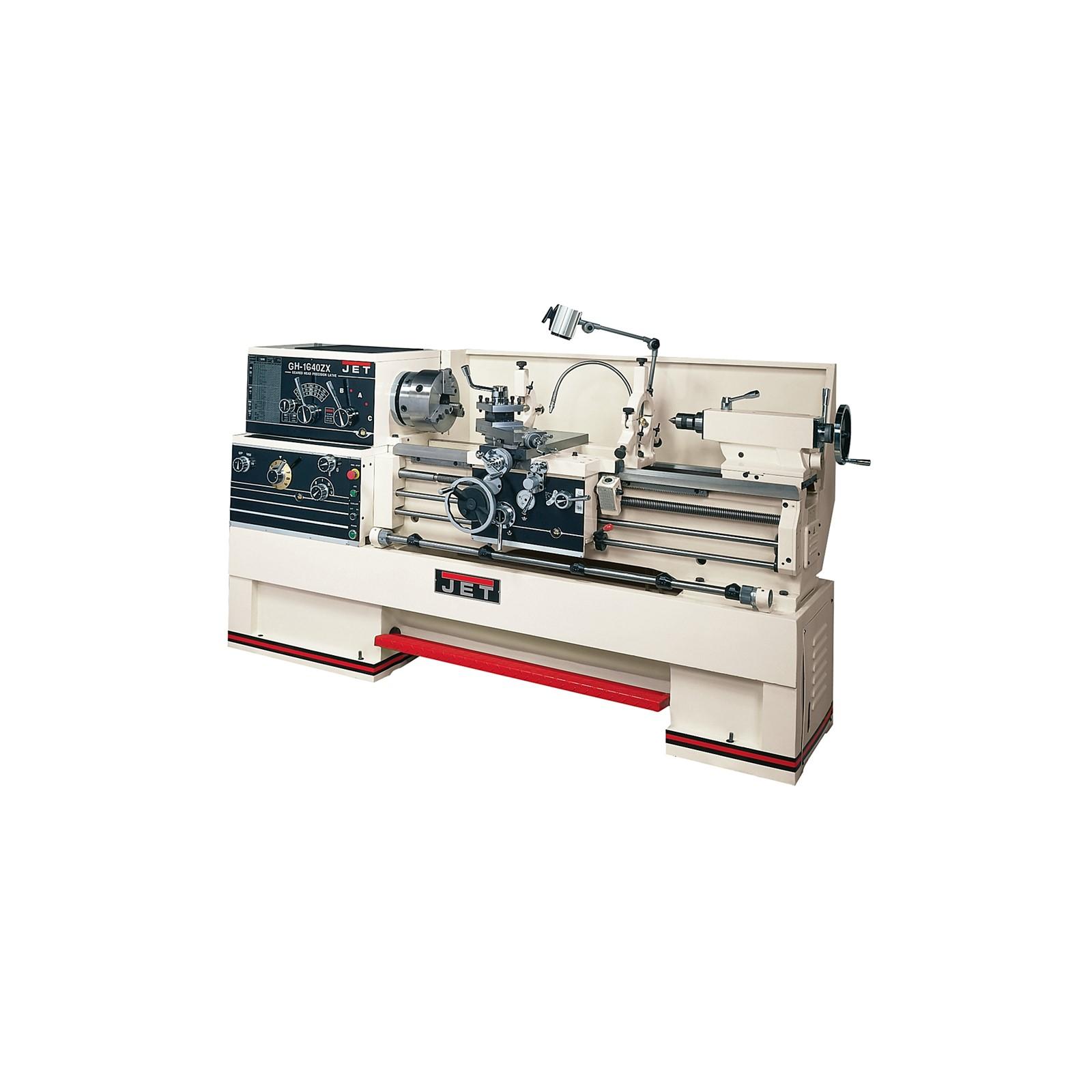

Jet 321566 Engine Lathe 2-axis Dro Collet Closer

Product Description

The JET 321566 is a heavy-duty gap bed engine lathe configured with a 2-axis ACU-RITE 200S digital readout (DRO) and a collet closer. The ACU-RITE 200S DRO provides real-time axis position feedback, reducing setup time and improving repeatability on precision turning operations. The integrated collet closer allows fast, repeatable workpiece clamping without removing the chuck. This machine is intended for professional machinists, tool-and-die shops, and industrial maintenance facilities that require a full-featured manual lathe for production or heavy repair work. The unit ships at 7,415 pounds, reflecting the robust cast-iron construction expected of a machine in this class.

The GH-2280ZX platform is suited for large-diameter and long-length turning applications in industrial and commercial machine shop environments. The gap bed design allows oversized workpieces to be swung over the bed when the gap section is removed. This configuration is commonly used in manufacturing, fabrication, and heavy maintenance shops where operators need both standard turning capability and the flexibility to handle large-diameter stock on the same machine.

Key Features

• 2-axis ACU-RITE 200S DRO included for real-time X and Z axis position display
• Collet closer included for fast, repeatable workpiece clamping
• Gap bed design accommodates oversized workpiece diameters
• Heavy cast-iron construction for rigidity and vibration damping during cuts
• Suitable for production turning, threading, boring, and facing operations

Compatibility

Designed as an OEM-configured machine matching the JET GH-2280ZX lathe platform with factory-installed ACU-RITE 200S DRO and collet closer as a complete unit.

Installation Notes

Installation of a machine weighing 7,415 pounds requires appropriate rigging equipment and a level, reinforced concrete floor capable of supporting the load. Electrical connection must be performed by a licensed electrician in accordance with NEC requirements and the machine's nameplate voltage and amperage ratings. Power must be fully disconnected and locked out before any service, adjustment, or tooling change is performed. Consult the JET installation manual for anchor bolt placement, leveling procedure, and lubrication requirements before first operation.

Technical Specifications

• Weight: 7415 pounds
• DRO: ACU-RITE 200S, 2-axis
• Accessories Included: Collet Closer
• Unit of Measure: Each
• Minimum Order Quantity: 1

Standard Information

• Brand: JET
• Manufacturer Part Number: 321566
