Jet 321505 Engine Lathe Series ZX Series 18 Swing Over Bed 11 Swing Over Cross Slide 60 Distance Between Centers

Product Description

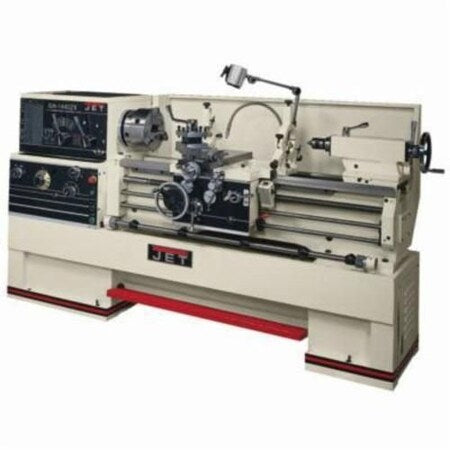

The Jet Engine Lathe, MPN 321505, is part of the ZX Series. It features an 18-inch swing over bed and an 11-inch swing over the cross slide. Ideal for machining tasks, it has a distance of 60 inches between centers.

• 18-inch swing over bed
• 11-inch swing over cross slide
• 60 inches distance between centers

Product Highlights

This engine lathe is designed for precision machining and offers a bed width of 13.18 inches. It includes a Morse taper tailstock taper and spindle with speeds ranging from 25 to 1800 rpm.

Product Information

Standard Information

• Brand: Jet
• MPN: 321505

Technical Specifications

• Swing Over Bed: 18 inches
• Swing Over Cross Slide: 11 inches
• Distance Between Centers: 60 inches
• Bed Width: 13.18 inches
• Morse Taper Tailstock Taper: 5
• Morse Taper Spindle: 7
• Spindle Speed: 25 to 1800 rpm
• Spindle Speed Count: 12
• Cross Travel: 9 inches
• Tailstock Spindle Travel: 5 inches
• Carriage Travel: 55.916 inches
• Compound Travel: 5.18 inches
• Max Cross Feed Rate per Revolution: 0.0006 to 0.00365 inches
• Max Longitudinal Feed Rate per Revolution: 0.0015 to 0.00913 inches
• Horsepower: 7.5 hp
• Voltage: 230/460 VAC
• Dimensions: 115 x 44 x 66 inches
• Country of Origin: China
