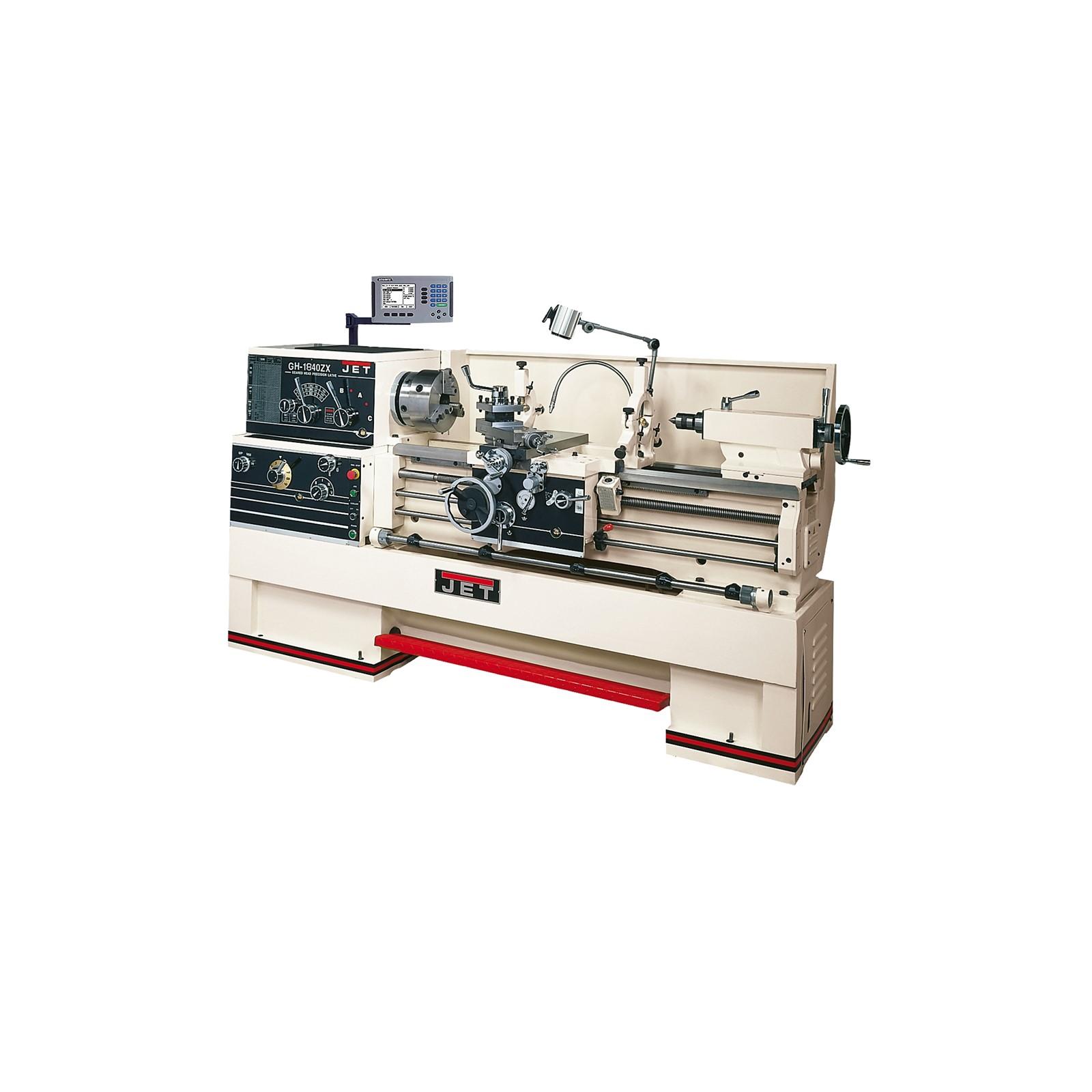

Jet 321488 Geared Head Lathe 2-axis Newall C80 Dro 18x80

Product Description

The JET 321488 is a geared head gap bed engine lathe equipped with a factory-installed 2-axis Newall C80 digital readout (DRO) system. The GH-1880ZX platform is built for heavy-duty metalworking operations, offering an 18-inch swing and 80-inch distance between centers. The integrated Newall C80 DRO provides real-time axis position feedback, reducing setup time and improving repeatability on turning, facing, and threading operations. This is a professional-grade machine intended for installation and operation by skilled machinists and tool-room technicians in industrial, manufacturing, or vocational shop environments.

The GH-1880ZX with 2-axis Newall C80 DRO is suited for production and job-shop environments requiring precision manual turning on ferrous and non-ferrous metals. Typical applications include shaft turning, boring, threading, and taper work. The gap bed configuration allows machining of larger-diameter workpieces by removing the gap section near the chuck. This machine is appropriate for commercial machine shops, maintenance facilities, and technical training programs where a full-size engine lathe with digital positioning feedback is required.

Key Features

• Factory-installed 2-axis Newall C80 DRO for real-time carriage and cross-slide position readout
• Gap bed design accommodates larger-diameter workpieces when gap section is removed
• 18-inch swing over bed with 80-inch distance between centers
• Geared head drive system for consistent torque across a range of spindle speeds
• Heavy cast iron construction supports rigid, vibration-dampened cuts

Compatibility

Designed as an OEM-configured replacement or new-installation geared head gap bed lathe for industrial and job-shop metalworking environments requiring a full-size manual engine lathe with integrated digital readout.

Installation Notes

Installation of this lathe requires qualified millwrights or machine tool technicians. The machine must be leveled on a reinforced concrete floor using precision leveling pads or anchor bolts per the manufacturer installation manual. Electrical connection must be performed by a licensed electrician in accordance with NEC requirements for the specified voltage and phase configuration. All lifting and positioning must use rated rigging equipment appropriate for a machine weighing 7100 pounds.

Technical Specifications

• Swing Over Bed: 18 inches
• Distance Between Centers: 80 inches
• DRO System: Newall C80 2-Axis
• Weight: 7100 pounds
• UPC: 662755515163

Standard Information

• Brand: JET
• Manufacturer Part Number: 321488
