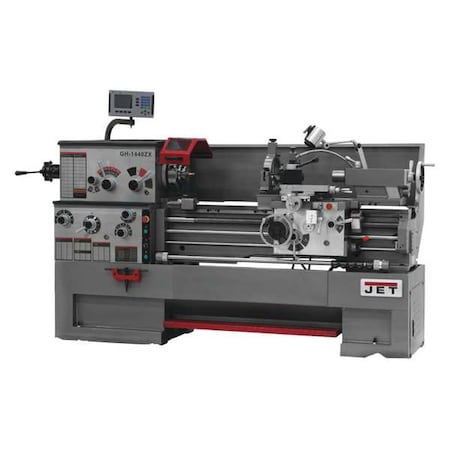

Jet 321469 Lathe 230/460 Volts 7 1/2 HP 3 Phase

Product Description

The Jet Lathe 321469 delivers professional-grade turning capabilities with a robust design. This lathe operates at 230/460 volts with a seven and one-half horsepower motor, making it ideal for heavy-duty applications. The distance between centers is forty inches, providing ample space for various projects.

• Features a three-phase design for consistent power supply.
• Offers a maximum spindle speed of one thousand eight hundred RPM.
• Includes multiple tooling options for versatile machining tasks.

Product Highlights

This lathe includes features like a T-slotted compound slide and a one-piece cast iron base that reduces vibrations.

Product Information

Standard Information

• Voltage: 230V AC
• Horsepower: 7-1/2 hp

Technical Specifications

• Distance Between Centers: 40 inches
• Spindle Bore: 3-1/8 inches
• Max. Spindle Speed: 1,800 RPM
• Min. Spindle Speed: 42 RPM
• Overall Height: 97 inches
• Overall Length: 97 inches
• Overall Width: 45 inches
• Sound Level: 88 dB
