Jet 321445 Engine Lathe Series ZX Series 16 Swing Over Bed 10 Swing Over Cross Slide 40 Distance Between

Product Description

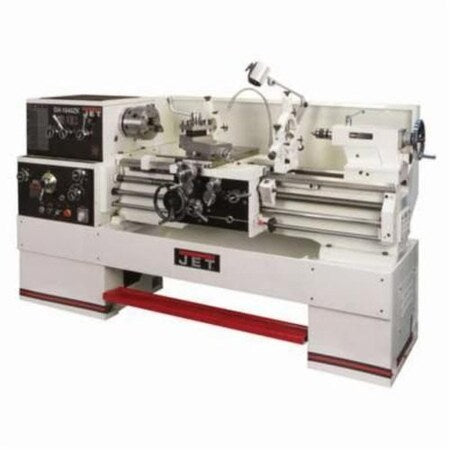

The Jet 321445 Engine Lathe is a part of the ZX Series, featuring a sixteen inches swing over bed and a ten inches swing over cross slide. This lathe is designed for precision machining and is suitable for a variety of projects.

• Sixteen inches swing over bed
• Ten inches swing over cross slide
• Spindle speed ranges from twenty-five to eighteen hundred RPM

Product Highlights

This lathe is essential for both professional and hobby machinists, providing reliable performance and adaptability for various machining tasks.

Product Information

Standard Information

• Brand: Jet
• MPN: 321445

Technical Specifications

• Swing Over Bed: 16 inches
• Swing Over Cross Slide: 10 inches
• Distance Between Centers: 40 inches
• Bed Width: 13 inches
• Tailstock Taper: 4 Morse Taper
• Spindle Taper: 7 Morse Taper
• Spindle Speed: 25 to 1800 RPM
• Cross Travel: 9 inches
• Tailstock Spindle Travel: 5 inches
• Carriage Travel: 35 inches
• Compound Travel: 5 inches
• Maximum Cross Feed Rate: 0.00006 to 0.00365 inches per revolution
• Maximum Longitudinal Feed Rate: 0.00015 to 0.00913 inches per revolution
• Motor Power: 7.5 HP
• Voltage: 230/460 VAC
• Dimensions: 96 x 44 x 66 inches
• Country of Origin: China
