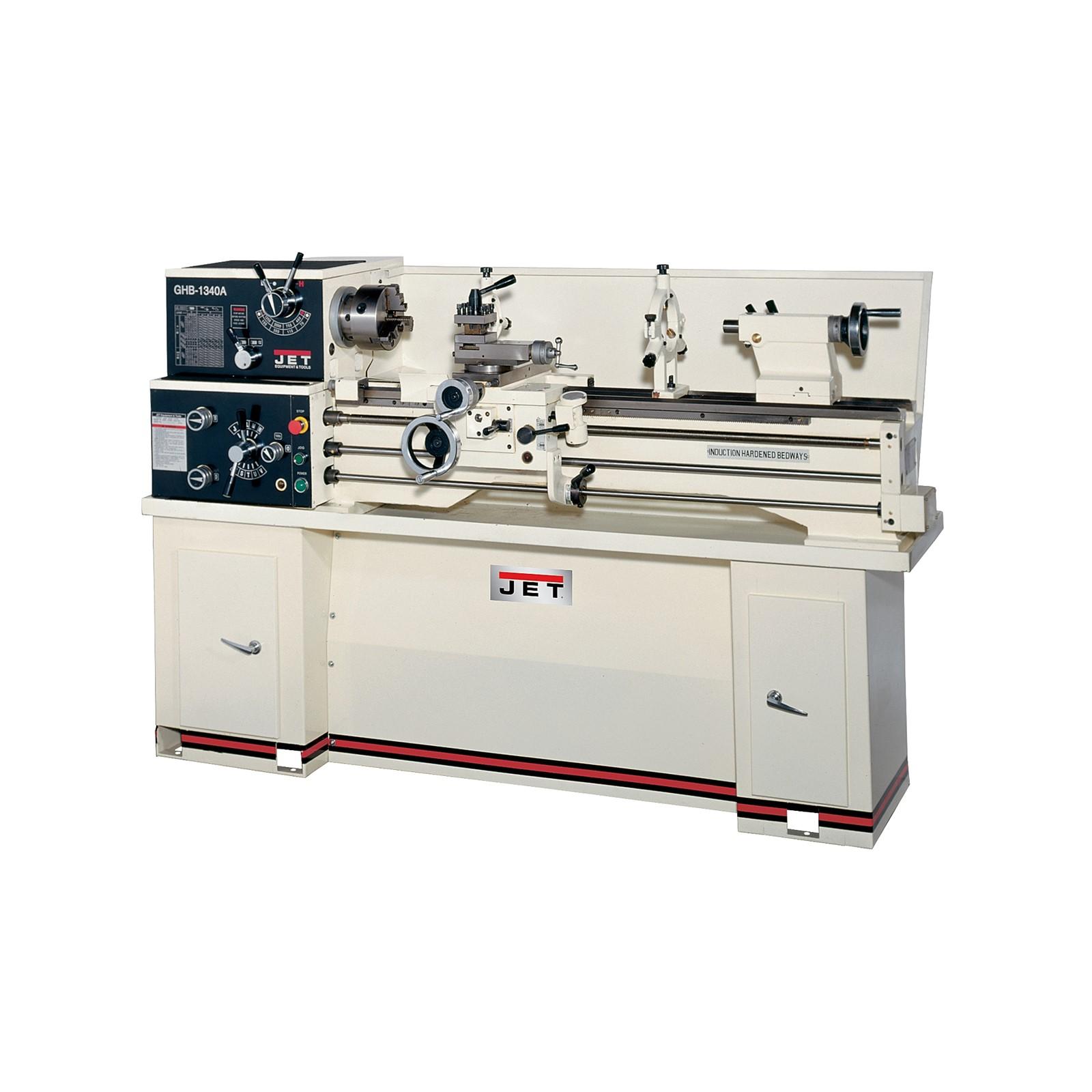

Jet 321360A Belt Drive Lathe 13 in 40 in 2HP 230V

Product Description

The JET 321360A is a belt drive engine lathe built for professional machine shop work, tool rooms, and production environments. It delivers a 13-inch swing over the bed and 40-inch center-to-center distance, giving machinists ample capacity for turning medium to large workpieces. The lathe runs on a 2 HP motor wired for 230 volt single-phase power only. Belt drive operation reduces vibration transmission to the spindle, supporting smoother surface finishes on ferrous and non-ferrous stock. Licensed machinists and industrial maintenance technicians are the primary installers and operators of this machine.

This lathe suits metal fabrication shops, maintenance repair operations, and vocational or technical training environments where a dependable belt drive engine lathe is required. The 13-inch swing accommodates a wide range of shaft, flange, and cylindrical turning applications. The 40-inch bed length supports longer stock without the need for steady-rest extensions on typical jobs. It is intended for single-phase 230 volt service, so three-phase installations are not compatible with this model.

Key Features

• 13-inch swing over bed for medium to large diameter turning
• 40-inch center-to-center distance supports longer workpieces
• 2 HP motor provides consistent power for ferrous and non-ferrous materials
• Belt drive design reduces vibration for improved surface finish quality
• Single-phase 230 volt power requirement suits most shop electrical services

Compatibility

Designed as an OEM-matched replacement or direct unit for the JET BDB-1340A belt drive engine lathe configuration. No additional compatible model numbers were specified in the product data.

Installation Notes

Installation should be performed by a qualified electrician and a licensed machinist or millwright familiar with machine tool commissioning. Disconnect and lockout all power at the disconnect switch before making any electrical connections. The unit requires a dedicated 230 volt single-phase circuit sized appropriately for the 2 HP motor draw per NEC guidelines. Level the machine bed carefully before final anchoring, as bed twist directly affects turning accuracy.

Technical Specifications

• Swing Over Bed: 13 inches
• Center-to-Center Distance: 40 inches
• Motor Power: 2 HP
• Voltage: 230 volts
• Phase: Single phase
• Drive Type: Belt drive
• Weight: 1175 pounds
• UOM: Each

Standard Information

• Brand: JET
• Manufacturer Part Number: 321360A
