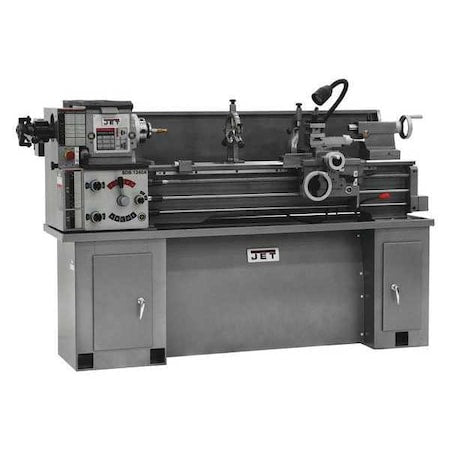

Jet 321360A Lathe 230 Volts 2 HP 1 Phase

Product Description

The Jet 321360A Lathe is designed for turning operations with a 2 HP motor and operates at 230 volts. This single-phase lathe has a distance of 40 inches between centers and is suitable for various precision turning tasks.

• 2 HP motor with 230 volts power
• Distance between centers: 40 inches
• Spindle speed ranges from 60 to 1240 RPM

Product Highlights

This lathe is built for precision turning with an enclosed gearbox for smooth and quiet operation. It offers fast and easy speed changes, and the spindle is supported by precision tapered roller bearings.

Product Information

Standard Information

• Brand: Jet
• MPN: 321360A
• Model: Lathe 230 Volts 2 HP 1 Phase

Technical Specifications

• Phase: Single
• Voltage: 230/460V AC
• Motor HP: 2
• Distance Between Centers: 40 inches
• Overall Length: 75.5 inches
• Overall Width: 29.75 inches
• Overall Height: 75.5 inches
• Spindle Speed: 60 to 1240 RPM
• Tailstock Taper: MT3
• Spindle Nose Type: D1-4 Camlock
