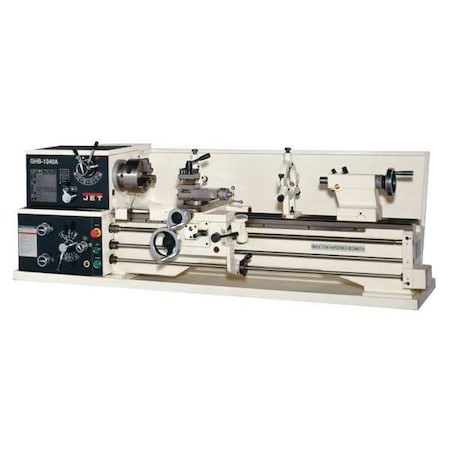

Jet 321357A Lathe 230 Volts 2 HP 1 Phase

Product Description

The Jet 321357A Lathe operates at a voltage of 230 volts and provides two horsepower. This lathe is designed for turning applications and can handle larger diameter work due to its sturdy design. It features a distance between centers of forty inches, making it suitable for various workpieces.

• Max spindle speed of 2000 RPM
• Single-phase operation for reliability
• Enclosed gearbox for smooth operation

Product Highlights

This lathe includes several key features that improve its functionality. The enclosed gearbox design allows for quiet operation and fast, easy speed changes, making it a popular choice in the industry.

Product Information

Standard Information

• Motor HP: 2
• Application: Turning

Technical Specifications

• Voltage: 230/460V AC
• Overall Height: 79 inches
• Overall Length: 79 inches
• Overall Width: 30 inches
• Swing Over Bed: 13 inches
• Min. Spindle Speed: 70 RPM
• Max. Spindle Speed: 2000 RPM
• Distance Between Centers: 40 inches
• Min. Threading Range: 0.45 mm
• Max. Threading Range: 10 mm
