Jet 312000 3-ton Chain Hoist 20in Lift 115/230V

Product Description

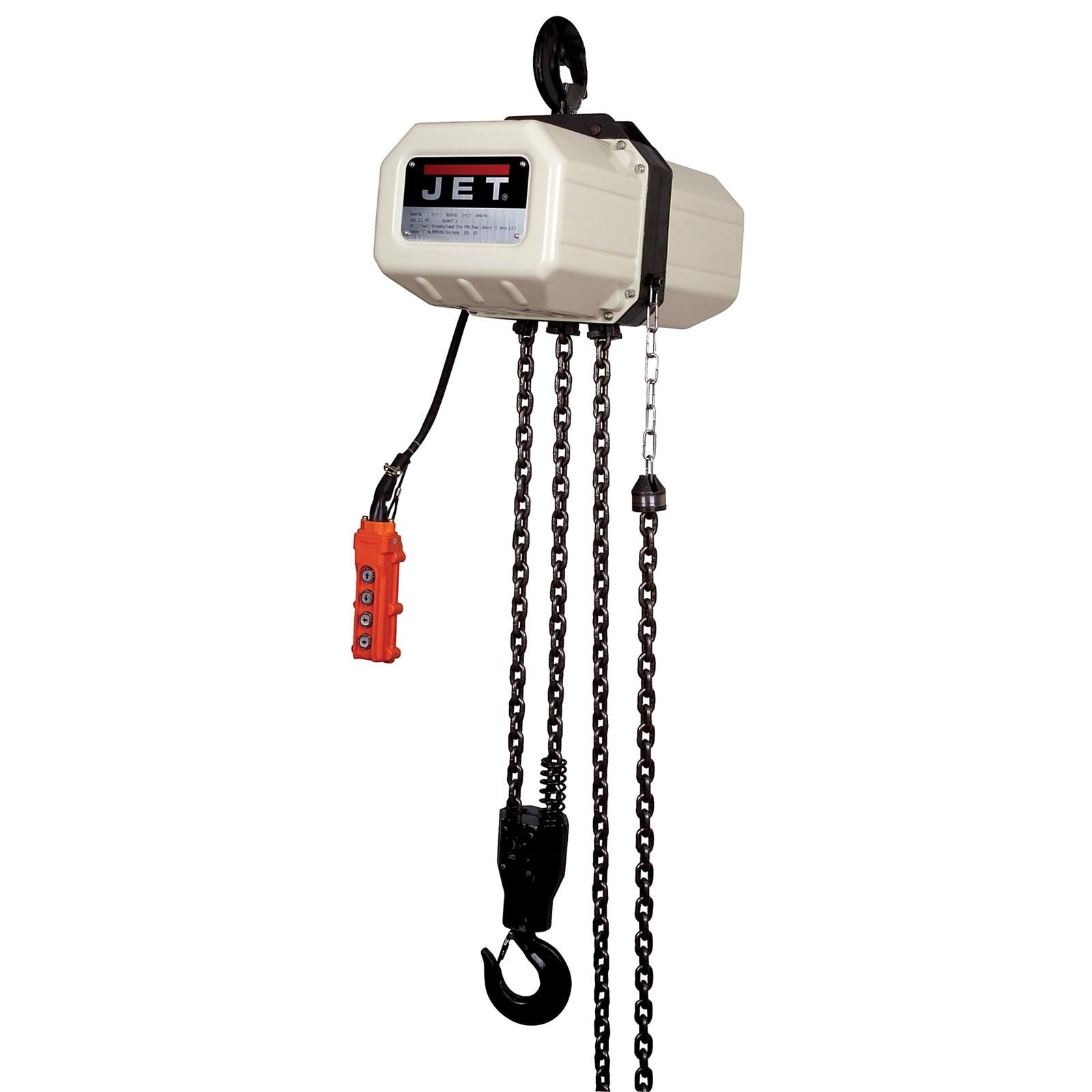

The JET 312000 is a 3-ton capacity single-phase electric chain hoist designed for heavy-duty lifting in industrial and commercial environments. Rated at 3 tons, it operates on 115 or 230 volt single-phase power and comes prewired for 230 volts out of the box. With a 20-inch lift range, it is suited for overhead material handling applications where a compact stroke is required. Licensed riggers, millwrights, and maintenance mechanics are the typical installers for this class of equipment. The unit ships at 245 pounds, reflecting the robust construction expected of a hoist in this capacity range.

The JET 312000 is used in manufacturing facilities, warehouses, machine shops, and maintenance bays where repetitive overhead lifting of loads up to 3 tons is required. The single-phase power configuration makes it compatible with standard industrial service found in smaller shops and facilities that do not have three-phase power available. The prewired 230-volt configuration reduces field wiring time during installation.

Key Features

• 3-ton rated lifting capacity for heavy industrial loads
• Single-phase motor compatible with 115 or 230 volt service
• Factory prewired for 230 volts to simplify installation
• 20-inch lift suitable for applications requiring a compact stroke
• Substantial 245-pound build reflects heavy-duty construction standards

Compatibility

Designed as an OEM-style replacement or direct unit for single-phase overhead chain hoist applications requiring a 3-ton capacity rating and a 20-inch lift range.

Installation Notes

Installation should be performed by a qualified rigger or licensed electrician in accordance with ASME B30.16 overhead hoist standards and applicable NEC requirements for motor branch circuits. Disconnect and lock out all power before mounting or wiring the unit. Verify that the supporting structure is rated for the full dynamic load before placing the hoist in service. Do not exceed the rated capacity marked on the hoist body.

Technical Specifications

• Capacity: 3 tons
• Phase: Single phase
• Voltage: 115/230 volts
• Prewired Voltage: 230 volts
• Lift: 20 inches
• Weight: 245 pounds
• UPC: 662755906237

Standard Information

• Brand: JET
• Manufacturer Part Number: 312000
