Jet 286514 Wire Rope 1.5 Ton 66 Feet

Product Description

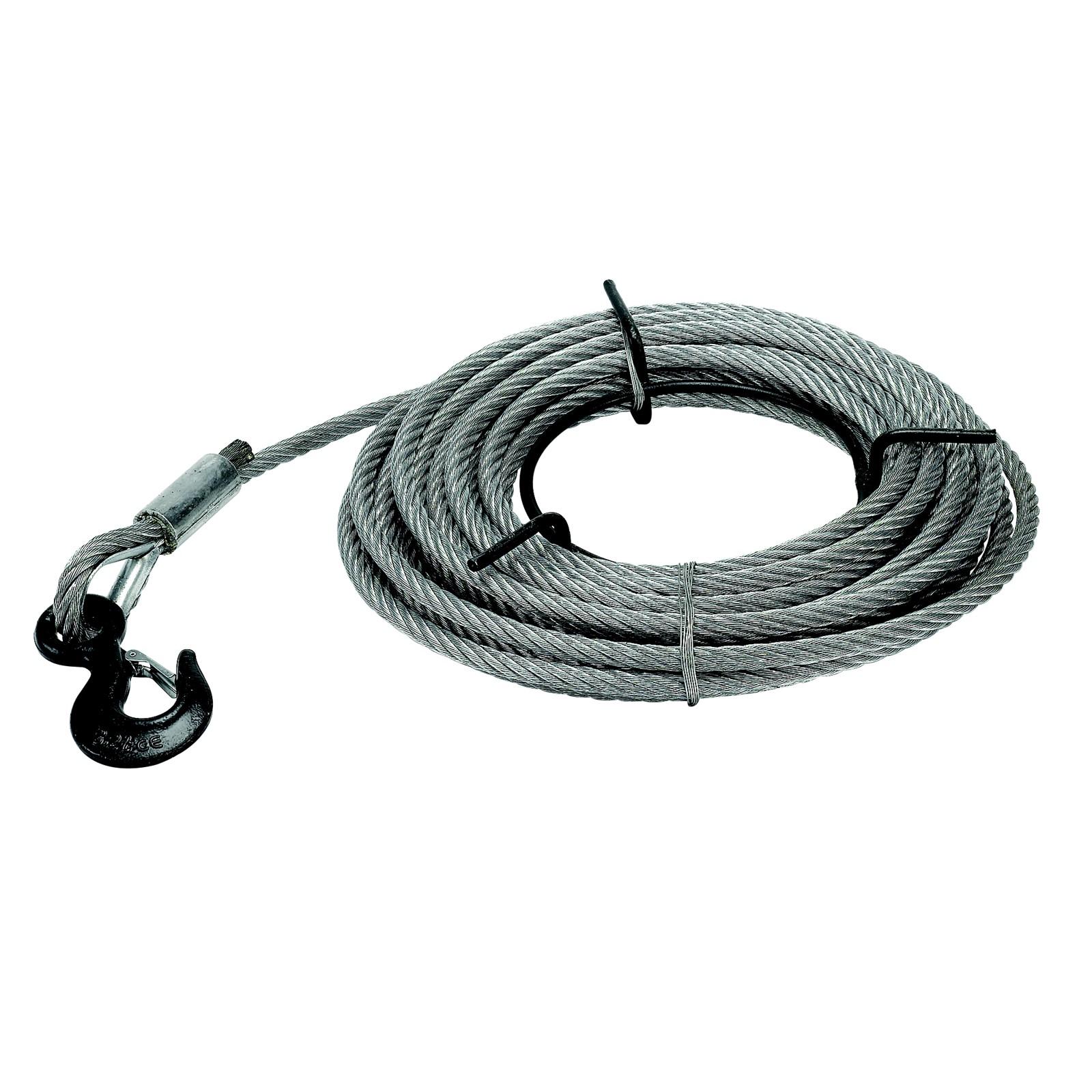

The JET 286514 is a wire rope designed for use with JET hoists and material handling equipment rated at 1.5 tons. Measuring 66 feet in length, this replacement rope provides the lifting medium between the hoist drum and load hook. Wire rope of this type is a consumable wear item that must be inspected regularly and replaced when kinking, broken wires, corrosion, or diameter reduction is present. At 27 pounds, the rope has substantial mass appropriate for its load rating. Installation and replacement are performed by qualified rigging or material handling technicians following applicable ASME B30 standards.

This wire rope is suited for overhead lifting applications in industrial, warehouse, and shop environments where JET electric or manual chain hoists and wire rope hoists are in service. It is a direct replacement rope for compatible JET hoist models requiring a 1.5-ton rated wire rope at 66 feet of working length. Facilities with regularly scheduled preventive maintenance programs on overhead lifting equipment are the primary end users.

Key Features

• 1.5-ton load rating matches standard JET hoist capacity class
• 66-foot length provides adequate lift range for most overhead hoist installations
• OEM replacement specification ensures proper drum fit and reeving
• Sold as a single unit for straightforward inventory and reorder management

Compatibility

Designed as an OEM-style replacement wire rope for JET wire rope hoists rated at 1.5 tons requiring a 66-foot rope length.

Installation Notes

Wire rope replacement on overhead hoists must be performed by a qualified rigging technician or hoist service professional. Disconnect and lock out all power to the hoist before beginning rope replacement, and de-tension any remaining load. Follow ASME B30.2 and B30.16 guidelines for wire rope inspection, installation, and end termination. Never operate a hoist with improperly seated, kinked, or incorrectly terminated wire rope.

Technical Specifications

• Load Rating: 1.5 tons
• Rope Length: 66 feet
• Weight: 27 pounds
• UPC: 662755903557
• Sold As: Each

Standard Information

• Brand: JET
• Manufacturer Part Number: 286514
