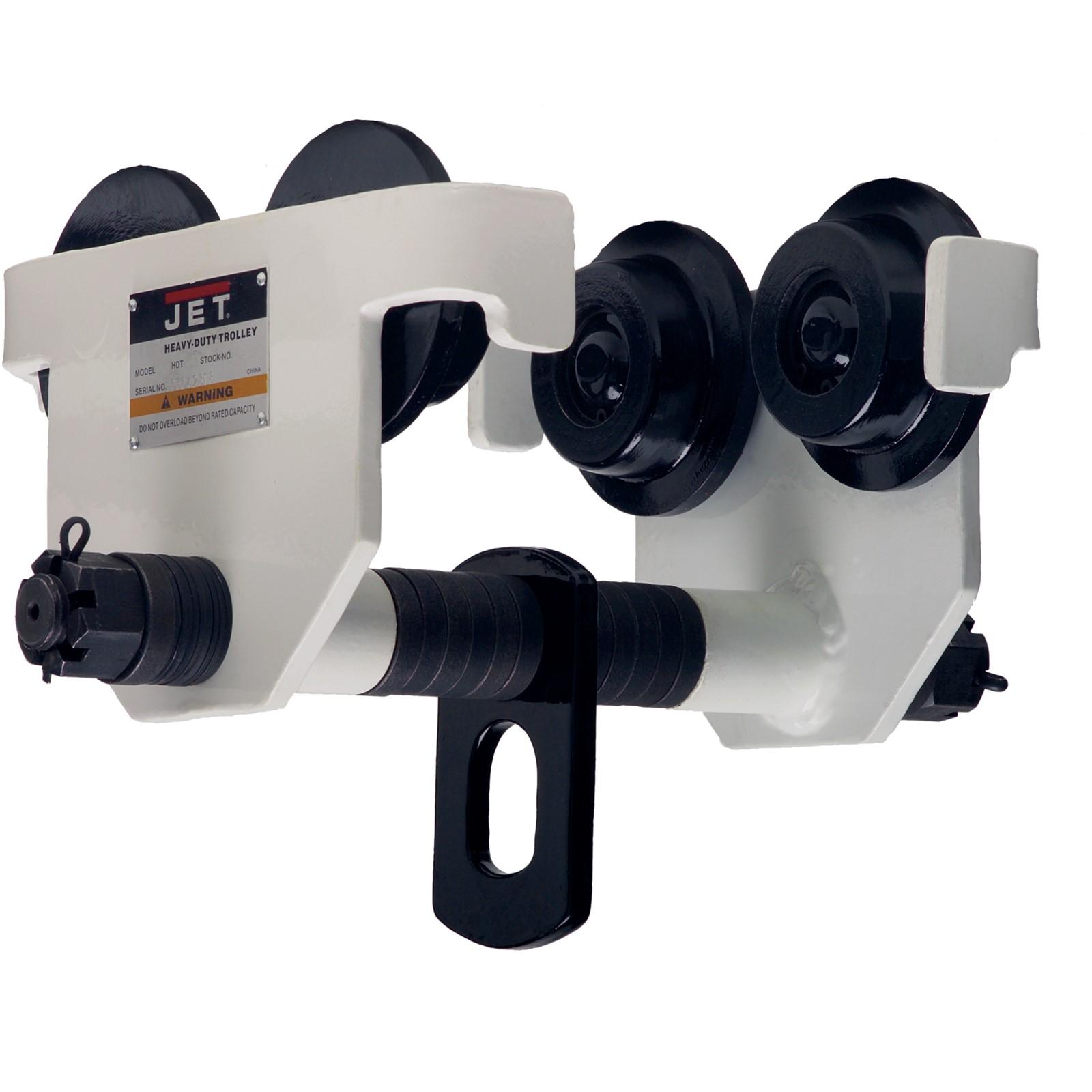

Jet 252060 Push Trolley 10 Ton 4.75-8 in Beam

Product Description

The JET 252060 is a 10-ton capacity push trolley designed to travel along the bottom flange of an overhead beam, supporting suspended loads in industrial lifting and material handling applications. The trolley fits beam widths ranging from 4.75 inches to 8 inches, making it compatible with a range of standard I-beam and wide-flange beam profiles. At 211 pounds, this is a heavy-duty unit built for sustained overhead service. Push trolleys in this class are typically installed by rigging professionals, millwrights, and maintenance trades as part of a hoist or beam system in a production facility, warehouse, or maintenance bay.

The JET 252060 is suited for industrial overhead material handling where a manual push trolley is preferred over motorized travel. Typical applications include factory floor assembly lines, machine shop hoists, loading dock assist systems, and maintenance bay lifting rigs. The 4.75-inch to 8-inch beam width adjustment range covers a broad selection of standard structural steel beam profiles commonly found in industrial buildings.

Key Features

• 10-ton load capacity for heavy industrial lifting applications
• Adjustable beam width fits flanges from 4.75 inches to 8 inches
• Manual push operation requires no electrical connection or motor
• Weighs 211 pounds — heavy-duty construction for sustained overhead service
• Sold individually (one trolley per unit)

Compatibility

Designed for use on I-beam and wide-flange overhead beam profiles with flange widths between 4.75 inches and 8 inches. Confirm beam flange width, flange taper, and load rating before installation.

Installation Notes

Installation should be performed by a qualified rigger or millwright following applicable ASME B30 standards for overhead hoists and monorail systems. De-energize and lock out any associated hoist or electrical equipment before mounting or adjusting the trolley on the beam. Verify that the supporting beam and structure are rated for the full intended load before placing the trolley in service. Do not exceed the rated 10-ton working load limit.

Technical Specifications

• Load Capacity: 10 tons
• Beam Width Range: 4.75 inches to 8 inches
• Weight: 211 pounds
• UOM: Each
• UPC: 662755223334

Standard Information

• Brand: JET
• Manufacturer Part Number: 252060
