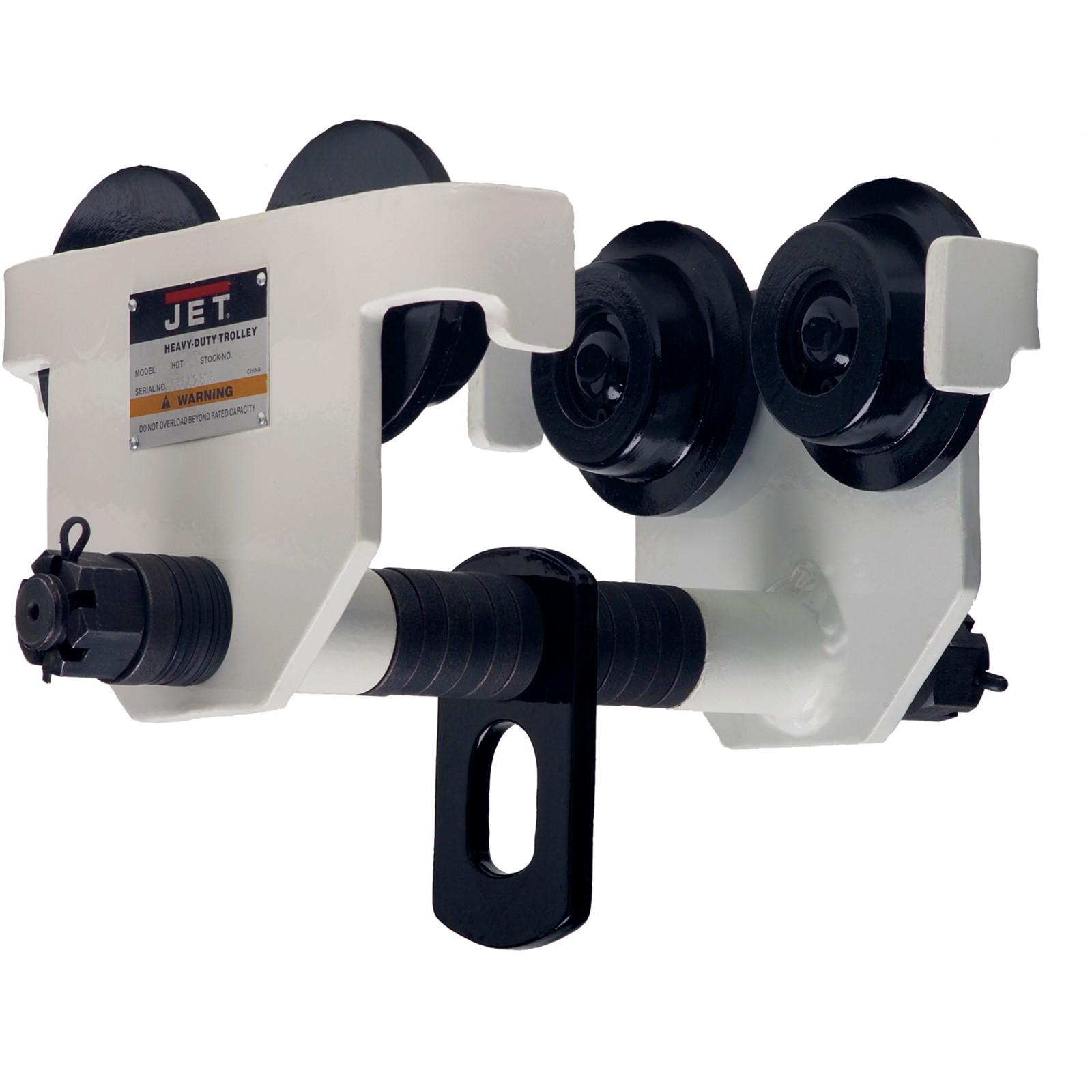

Jet 252050 Push Trolley 5 Ton 4.625 to 8 Inch Beam

Product Description

The JET 252050 is a 5-ton capacity plain push trolley designed for use with overhead monorail beam systems. It mounts to an I-beam flange and allows manual lateral movement of suspended loads along the beam track. Rated at 5 tons (10,000 pounds), it fits beams ranging from 4.625 inches to 8 inches in flange width. The trolley is a core component in shop crane systems, workstation hoists, and material handling setups where a powered drive unit is not required. Licensed riggers, millwrights, and maintenance technicians typically perform the installation and load-testing of this equipment.

This trolley is suited for light industrial and heavy-duty shop environments including fabrication shops, automotive service bays, warehouses, and maintenance facilities. It pairs with manual chain hoists or electric chain hoists rated up to 5 tons and is intended for fixed monorail beam installations. Beam flange compatibility spans 4.625 inches to 8 inches, making it adaptable across a range of standard wide-flange and S-beam profiles commonly found in overhead crane runway systems.

Key Features

• 5-ton (10,000 pound) working load limit for heavy material handling applications
• Fits beam flange widths from 4.625 inches to 8 inches
• Plain push design requires no motor or drive unit, reducing mechanical complexity
• Compatible with standard monorail I-beam and wide-flange beam profiles
• Unit weight of 124 pounds supports robust, heavy-duty construction

Compatibility

Designed for use on overhead monorail beam systems with flange widths between 4.625 inches and 8 inches. Suitable for pairing with manual or electric chain hoists up to 5-ton capacity on standard I-beam and wide-flange runway profiles.

Installation Notes

Installation should be performed by a qualified rigger or millwright in accordance with ASME B30.11 standards for monorail systems and underhung cranes. Before mounting or adjusting the trolley, de-energize any associated hoist and ensure the beam runway is clear of loads. Verify beam flange width falls within the 4.625 inch to 8 inch range before mounting, and confirm the beam is rated to support the combined weight of the trolley, hoist, and intended load. Never exceed the rated working load limit of the trolley.

Technical Specifications

• Capacity: 5 tons (10,000 pounds)
• Beam Flange Width (Min): 4.625 inches
• Beam Flange Width (Max): 8 inches
• Unit Weight: 124 pounds
• Unit of Measure: Each
• UPC: 662755223327

Standard Information

• Brand: JET
• Manufacturer Part Number: 252050
