Jet 252020 2-PT Beam Trolley 2 Ton 3.25-8 Inch Beam

Product Description

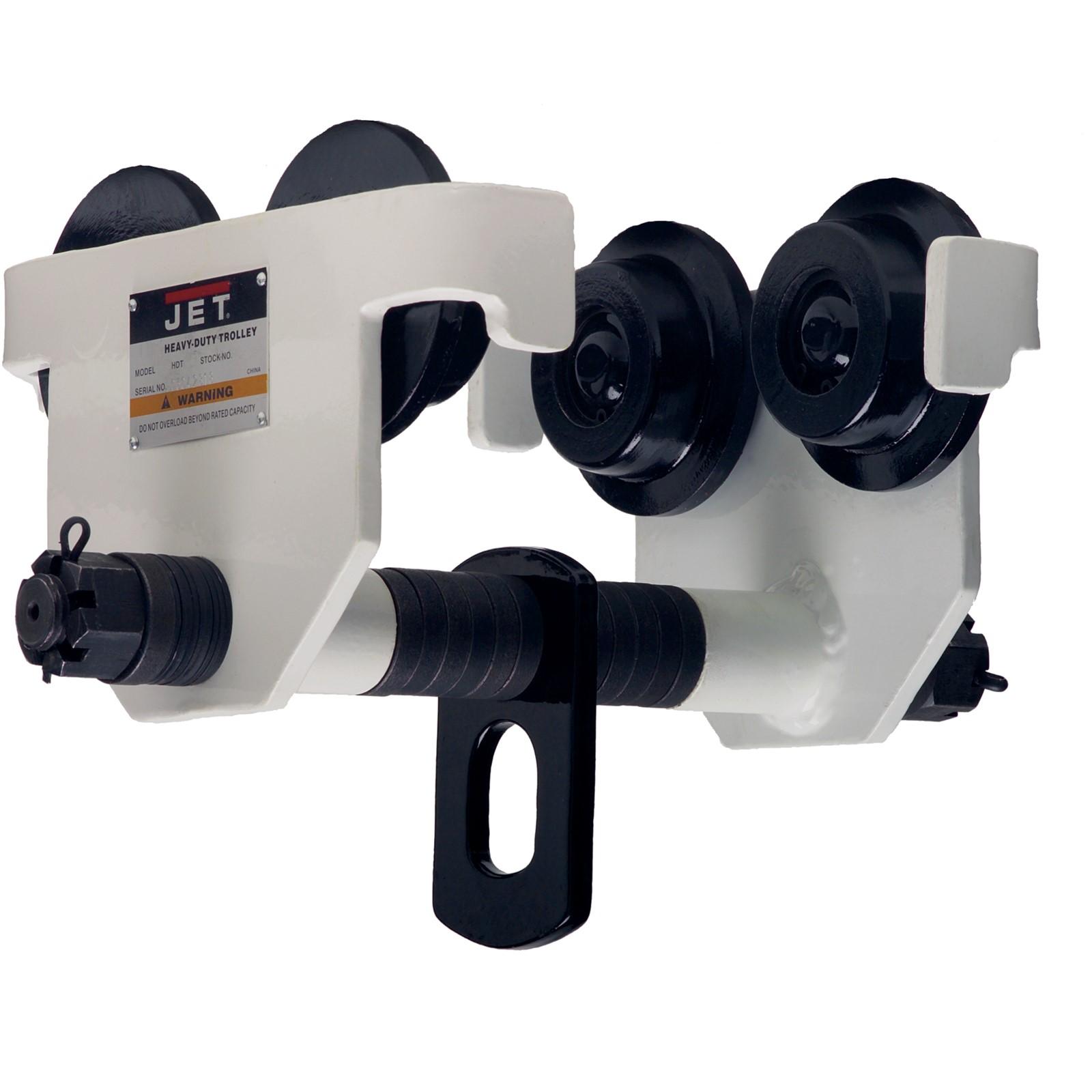

The JET 252020 is a 2-PT plain trolley designed to travel along a beam flange and support overhead lifting loads up to 2 tons. It fits wide-flange beams ranging from 3.25 inches to 8 inches wide, making it a versatile fit for a range of structural steel profiles. The trolley is used in conjunction with manual hoists, chain falls, or similar lifting equipment in shops, warehouses, and industrial facilities. Installation and adjustment require no special rigging beyond standard hand tools. This is a per-unit item sold individually.

The 252020 is suited for industrial and commercial environments where a movable overhead lifting point is needed along an existing beam runway. Typical applications include maintenance bays, fabrication shops, assembly lines, and equipment rooms where a fixed hoist location is impractical. The 3.25-inch to 8-inch flange capacity covers a wide range of standard wide-flange and I-beam sections commonly found in steel-framed structures. Riggers, millwrights, and maintenance technicians are the primary installers of this type of trolley.

Key Features

• 2-ton rated load capacity for overhead lifting applications
• Fits beam flange widths from 3.25 inches to 8 inches
• 2-PT design for smooth travel along beam runway
• Sold individually as a single unit
• Unit weight of 51 pounds provides robust, heavy-duty construction

Compatibility

Designed for use with wide-flange and standard I-beam sections with flange widths between 3.25 inches and 8 inches. Intended for pairing with compatible manual hoists or chain falls rated at or below 2 tons.

Installation Notes

Installation should be performed by a qualified rigger or millwright familiar with overhead lifting systems and applicable ASME B30 standards. De-energize and lock out any associated lifting equipment before mounting or adjusting the trolley on the beam. Verify that the supporting beam is rated for the combined trolley, hoist, and load weight before placing the system in service. Do not exceed the 2-ton load rating under any circumstances.

Technical Specifications

• Load Capacity: 2 tons
• Beam Flange Width Range: 3.25 inches to 8 inches
• Weight: 51 pounds
• Sold As: Each
• UPC: 662755223303

Standard Information

• Brand: JET
• Manufacturer Part Number: 252020
