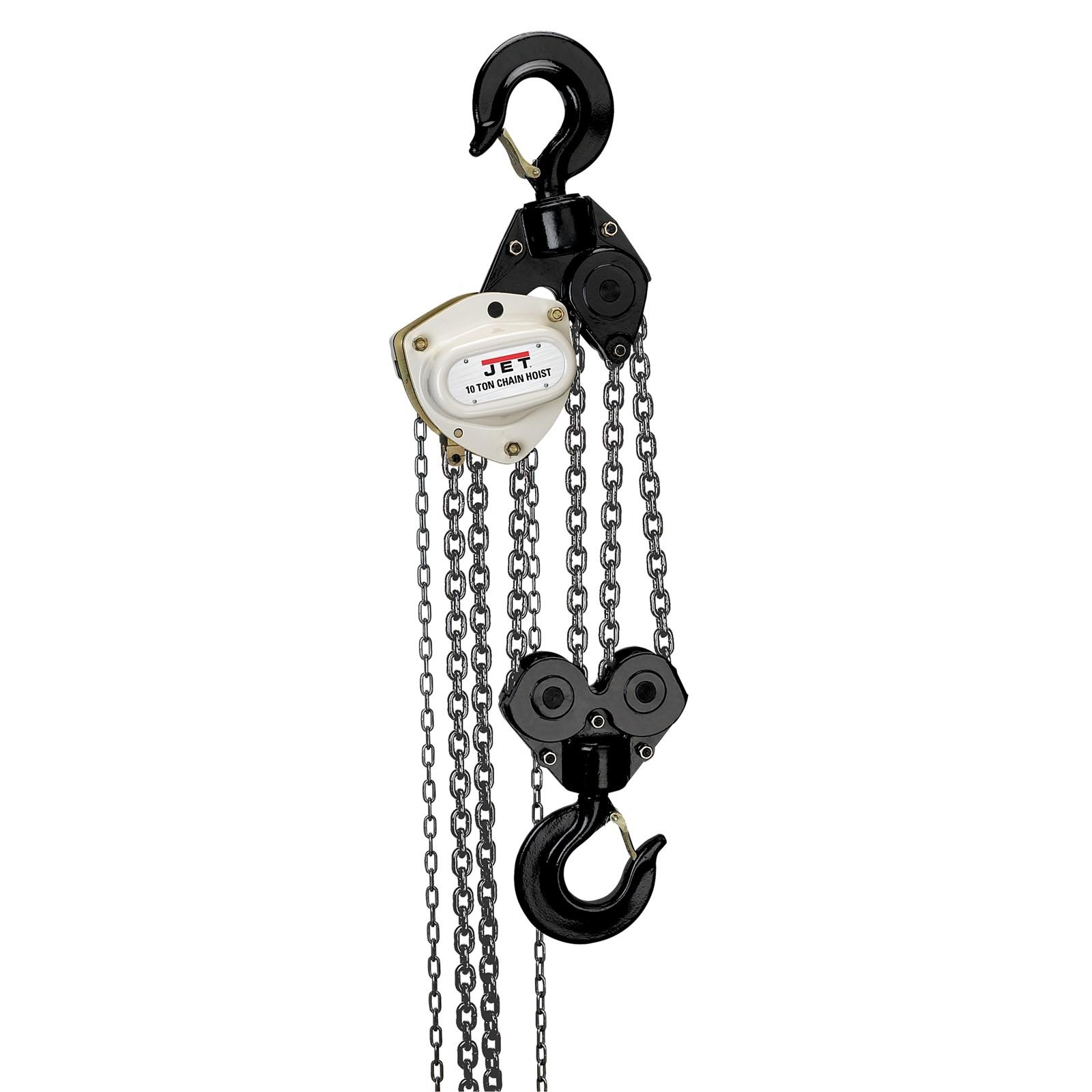

Jet 209130 Chain Hoist 10 Ton 30 Foot Lift

Product Description

The JET 209130 is a 10-ton manual chain hoist with 30 feet of lift travel and built-in overload protection. Designed for heavy-duty lifting in industrial, construction, and maintenance environments, this hoist provides controlled load handling where overhead lifting capacity and safety are critical. The overload protection mechanism prevents the hoist from being loaded beyond its rated capacity, reducing the risk of equipment damage or load failure. Installation and operation are typically performed by rigging professionals, millwrights, and industrial maintenance technicians familiar with overhead lifting equipment and applicable safety standards.

This chain hoist is suited for use in manufacturing facilities, warehouses, fabrication shops, and job sites requiring reliable heavy-load lifting. The 10-ton capacity and 30-foot lift range make it appropriate for applications such as machinery installation, structural steel placement, and heavy component handling. It is intended for use on approved overhead structures rated for the imposed load.

Key Features

• 10-ton rated lift capacity for heavy industrial applications
• 30-foot lift travel provides extended vertical range
• Built-in overload protection prevents operation beyond rated capacity
• Manual chain drive for controlled, precise load positioning
• Designed for use with approved overhead rigging structures

Compatibility

Designed as an OEM-style manual chain hoist for use with compatible overhead beam trolleys and rigging hardware rated for 10-ton capacity applications.

Installation Notes

Installation must be performed by qualified rigging or maintenance personnel in accordance with ASME B30.16 standards for overhead hoists. Before installation, verify that the supporting structure, beam, and all rigging hardware are rated to handle the full working load plus any applicable safety factor. Never exceed the rated capacity of the hoist or the supporting structure. Inspect the hoist, chain, and hooks before each use and remove the unit from service if any wear, damage, or deformation is found.

Technical Specifications

• Capacity: 10 ton
• Lift: 30 feet
• Overload Protection: Yes
• Weight: 231 pounds
• UOM: Each

Standard Information

• Brand: JET
• Manufacturer Part Number: 209130
