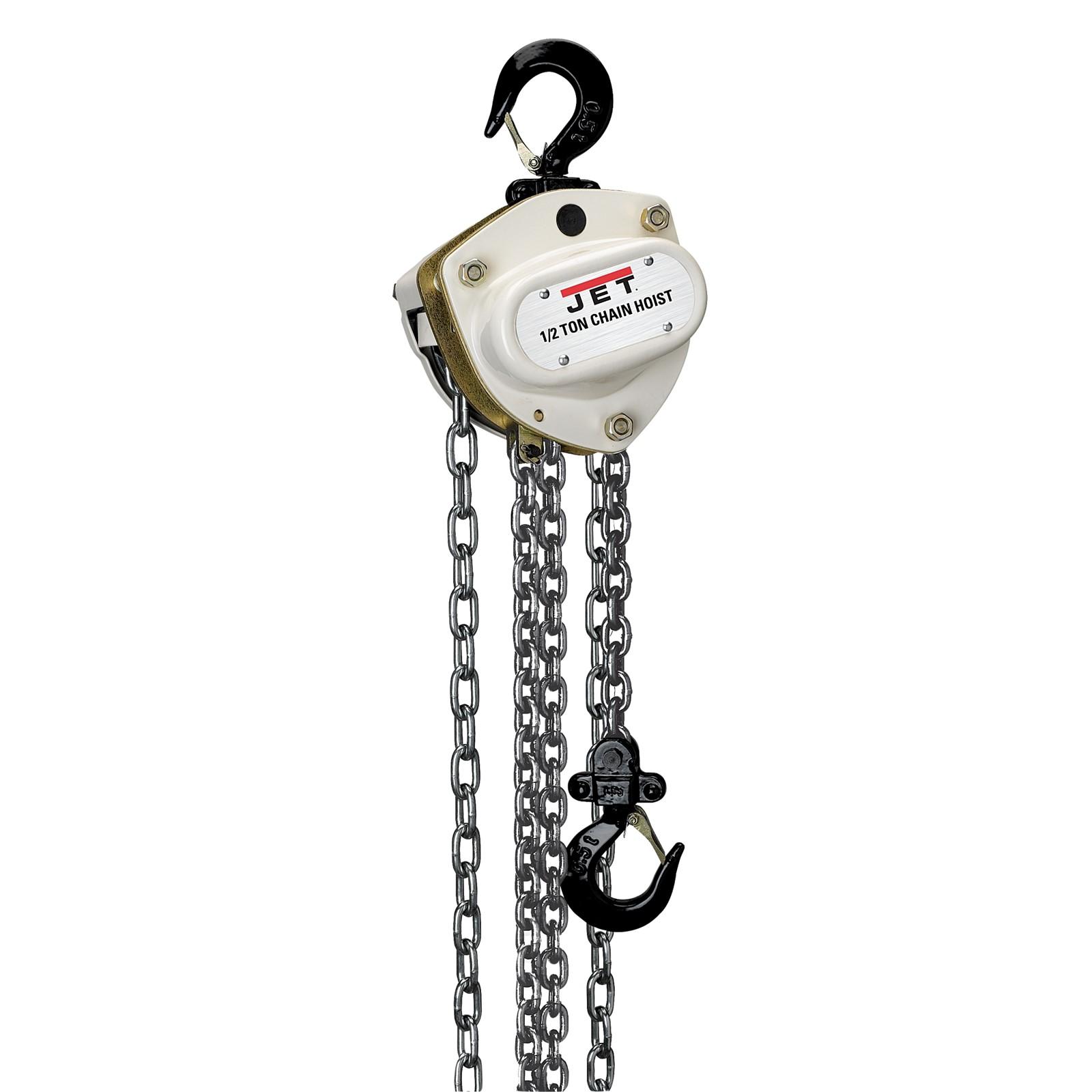

Jet 205130 Hand Chain Hoist 0.5 Ton 30 Ft Lift

Product Description

The JET 205130 is a manual hand chain hoist rated for 0.5-ton (1,000-pound) lifting capacity with a 30-foot lift range and built-in overload protection. Designed for industrial and trade applications, this hoist provides reliable vertical lifting where powered hoisting equipment is unavailable or impractical. The overload protection mechanism helps prevent chain failure and structural overload during lifts, adding a critical safety margin for operators. Licensed riggers, millwrights, HVAC technicians, and mechanical contractors commonly use hand chain hoists for equipment positioning, removal, and installation tasks in tight or overhead spaces.

The JET 205130 suits residential and light commercial applications where controlled manual lifting is required. Common use cases include positioning rooftop HVAC units, lifting mechanical equipment during installation or replacement, and supporting rigging tasks in facilities without overhead crane access. The 30-foot lift range accommodates multi-story and high-bay environments. This unit ships as a single hoist ready for use.

Key Features

• 0.5-ton (1,000-pound) rated lifting capacity
• 30-foot lift range for multi-story and high-bay applications
• Built-in overload protection to prevent chain and structural overload
• Manual hand chain operation requires no power source
• Compact design suited for confined and overhead installation spaces

Compatibility

Designed as a self-contained manual hand chain hoist suitable for standard overhead rigging points, I-beam trolleys, and fixed anchor points rated for the working load limit.

Installation Notes

Installation and operation should be performed by qualified riggers or tradespeople familiar with load-handling equipment and applicable ASME B30 standards. Verify that the overhead support structure, beam, or anchor point is rated to handle the combined weight of the hoist and the load before use. Inspect the hoist, hook latches, and chain for wear or damage before each lift. Never exceed the rated working load limit of the hoist.

Technical Specifications

• Lifting Capacity: 0.5 ton (1,000 pounds)
• Lift Range: 30 feet
• Overload Protection: Yes
• Weight: 45.8 pounds
• UPC: 731325171488

Standard Information

• Brand: JET
• Manufacturer Part Number: 205130
