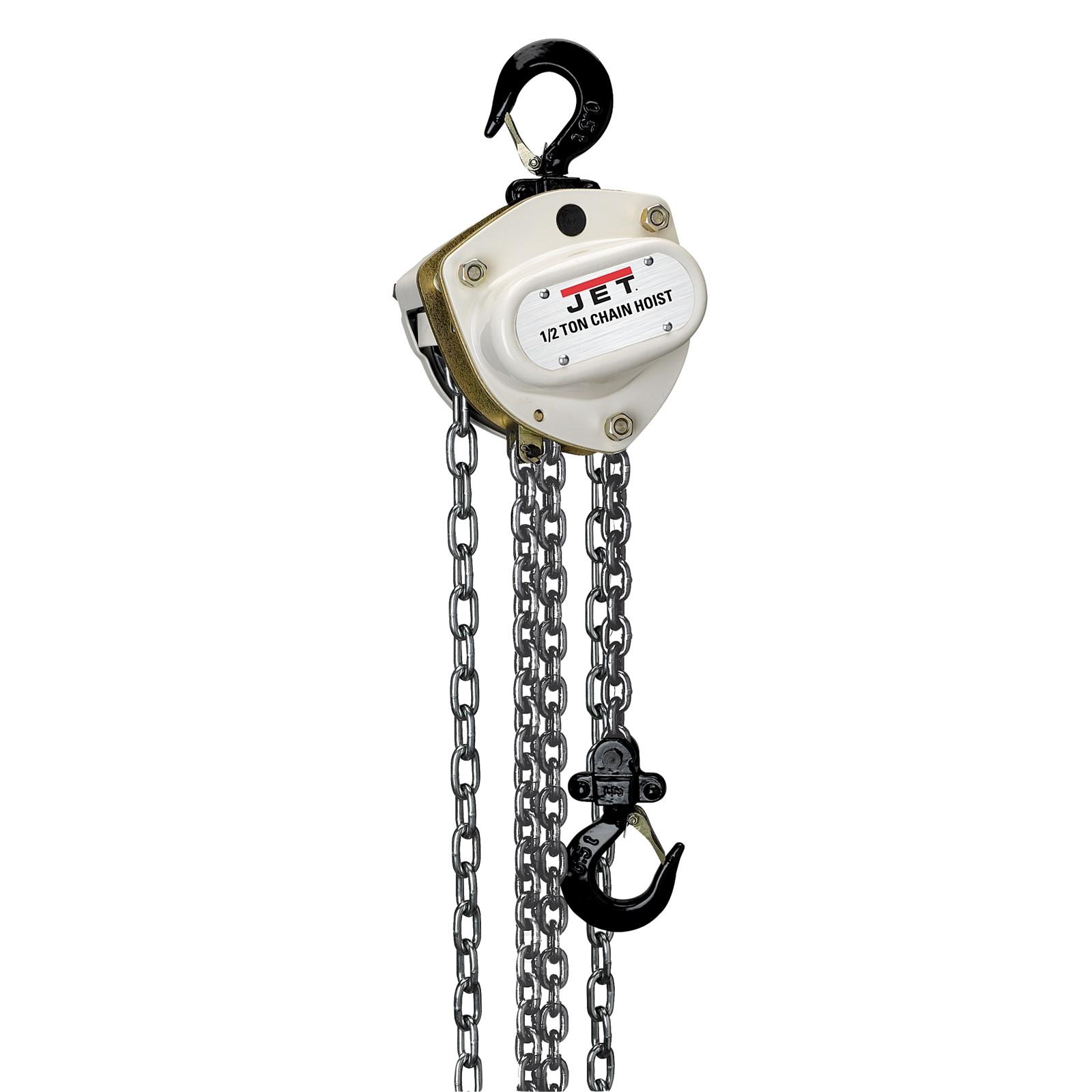

Jet 205120 Chain Hoist 0.5 Ton 20 Foot Lift

Product Description

The JET 205120 is a 1/2-ton manual chain hoist with a 20-foot lift range and built-in overload protection. Rated for 1,000 pounds of working load, this unit is designed for overhead lifting in industrial, construction, and maintenance environments. The overload protection mechanism prevents the hoist from being loaded beyond its rated capacity, reducing the risk of chain failure or structural damage. At 35.4 pounds, it is a compact and portable lifting solution suited for rigging professionals, millwrights, and general contractors who need reliable vertical lift in the field or in a shop setting.

The JET 205120 is appropriate for use in manufacturing facilities, construction sites, warehouses, and service bays where controlled overhead lifting is required. It is commonly used to lift engines, machinery components, structural steel, and other heavy loads up to its rated capacity. The 20-foot lift range provides adequate clearance for most standard ceiling heights and mezzanine applications. This hoist is intended for professional installation and operation by trained rigging personnel familiar with overhead lifting codes and load rating requirements.

Key Features

• 1/2-ton (1,000-pound) working load limit for controlled overhead lifting
• 20-foot lift range suitable for standard industrial and construction ceiling heights
• Built-in overload protection prevents loading beyond rated capacity
• Manual chain operation requires no electrical connection or power source
• Compact unit weight of 35.4 pounds for portability between job sites

Compatibility

Designed as an OEM-style manual chain hoist for use with standard overhead beam trolleys, I-beam flanges, and hook-mounted rigging setups rated for 1/2-ton or greater working loads.

Installation Notes

Installation and operation should be performed by qualified rigging or lifting professionals familiar with applicable ASME B30 overhead hoisting standards. Verify that the support structure, beam, or anchor point is rated to handle the combined weight of the hoist and the intended load before use. Inspect the load chain, hooks, and latch mechanisms for wear or damage prior to each lift. Never exceed the rated working load limit or use the hoist to move loads horizontally.

Technical Specifications

• Working Load Limit: 0.5 ton (1,000 pounds)
• Lift Range: 20 feet
• Weight: 35.4 pounds
• Unit of Measure: Each
• UPC: 731325171464

Standard Information

• Brand: JET
• Manufacturer Part Number: 205120
